10001 fuel system Diagram

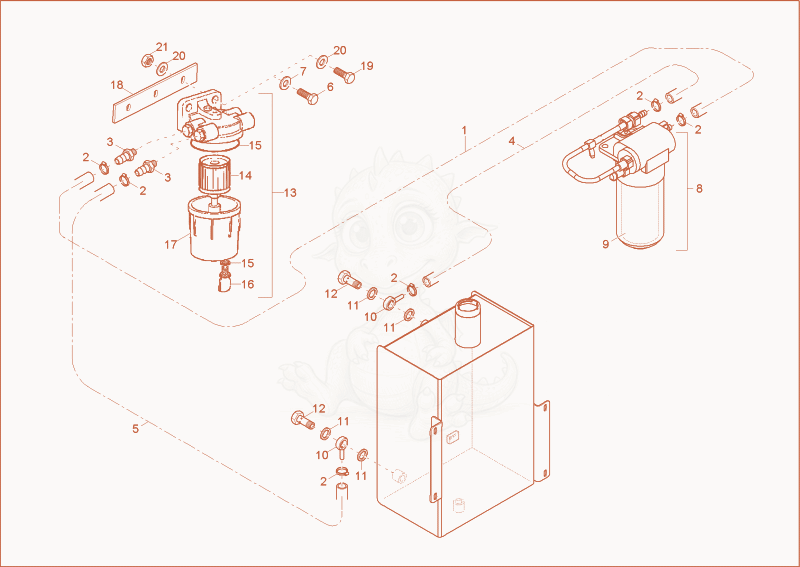

Exploded parts diagram of the fuel system of a Wacker Neuson 10001, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000115142Not stocked
    fuel line×0.9
  • 21000105425Price
    hose strap - 1000105425×6
  • 31000115822Not stocked
    grease nipple×2
  • 41000115142Not stocked
    fuel line×0.5
  • 51000115142Not stocked
    fuel line×1
  • 61000015364Not stocked
    hex screw×2
  • 71000015438Not stocked
    lock washer×2
  • 81000130799Price
    Fuelpump 1000130799×1
  • 91000123922Price
    filter insert - 1000123922×1
  • 101000115049Price
    RING NIPPLE - 1000115049×2
  • 111000085677Price
    SEAL RING - 1000085677×4
  • 121000115140Price
    BANJO BOLT - 1000115140×2
  • 131000130790Not stocked
    fuel filter×1
  • 141000129349Not stocked
    pilot filter×1
  • 151000130795Not stocked
    seal kit×1
  • 161000130791Not stocked
    drain screw×1
  • 171000144219Not stocked
    view glass×1
  • 181000166253Not stocked
    Sediment Bowl BRACKET 6001-10001×1
  • 191000085412Price
    6-Point screw M10x40-8.8 A2C-DIN933 - 1000085412×2
  • 201000094974Price
    washer M10-DIN134 - 1000094974×4
  • 211000015407Not stocked
    hexagon nut×2
