WP1550R-VIBROPLATE

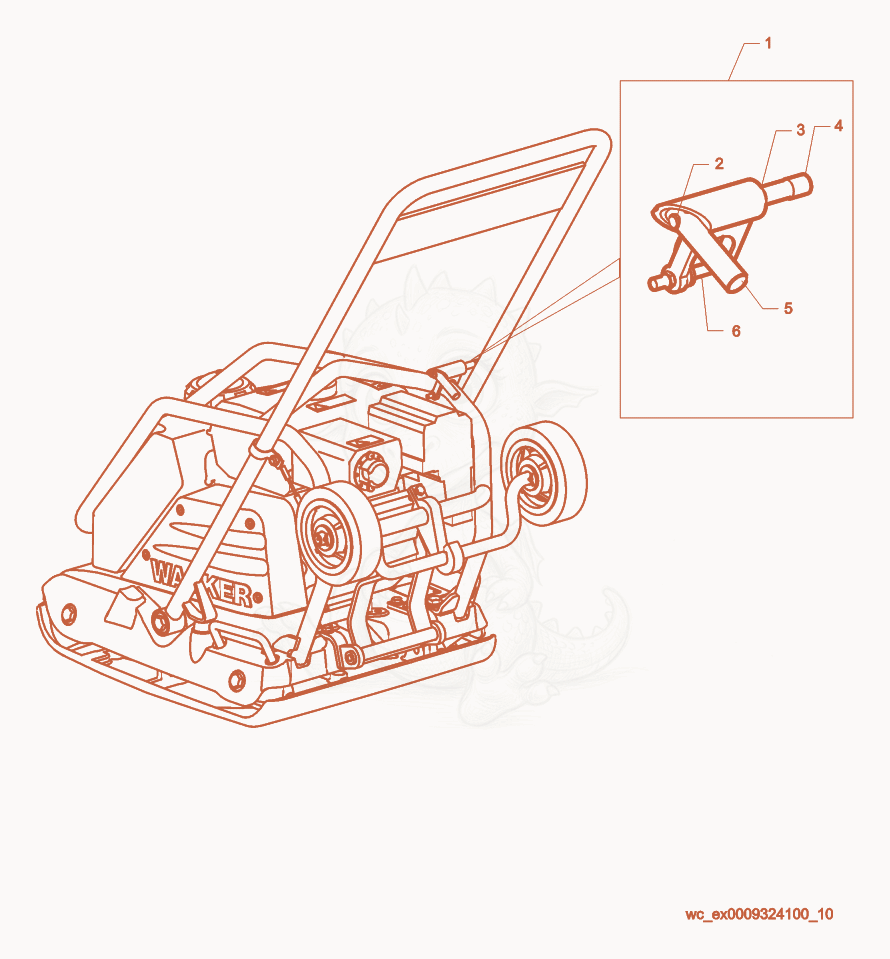

WP1550R Latch Kit Diagram

Exploded parts diagram of the Latch Kit of a Wacker Neuson WP1550R, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000115504Price
    KIT-LATCH - 5000115504×1
  • 25000115514Price
    PIN-SPRING - 5000115514×1
  • 35000115511Price
    SPRING-COMPRESSION - 5000115511×1
  • 45000115508Not stocked
    Cap×1
  • 55000115513Price
    HANDLE-LATCH P-5000112007 - 5000115513×1
  • 65000117969Price
    SCREW M8 X 45 10.9 HXHD - 5000117969Unknown×1
  • 65000010367Price
    NUT-LOCK M8 HEX - 5000010367Unknown×1
  • 65000117845Not stocked
    Washer×1
