WP1550R-VIBROPLATE

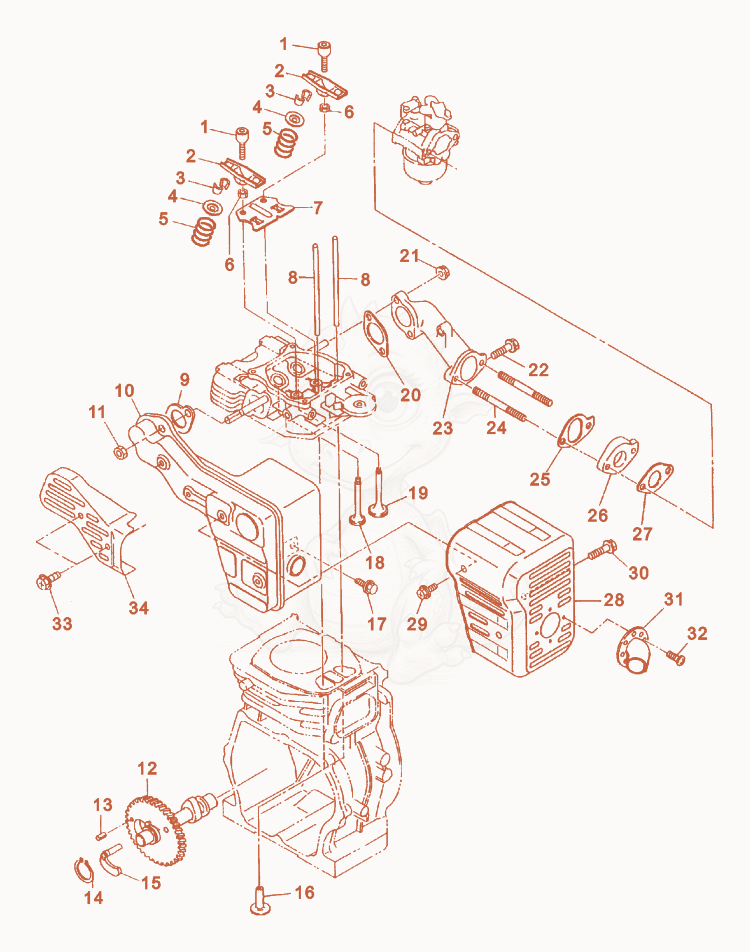

WP1550R Intake/Exhaust Diagram
- BOLT-PIVOT - 5000117237×2
- 25000117236Not stockedRocker arm×2
- 35000114036Not stockedValve×4
- 45000114035Not stockedSpring holder×2
- 55000114034Not stockedSpring×2
- nut - 5000117238×2
- 75000117239Not stockedPlate×1
- 85000118035Not stockedPush rod (valve lifter)×2
- GASKET-MUFFLER - 5000084347×1
- 105000118036Not stockedMuffler×1
- Nut - 5000077523×2
- 125000117230Not stockedCamshaft cpl.×1
- 135000084336Not stockedPin×1
- 145000084338Not stockedRing×1
- 155000118037Not stockedLever×1
- 165000117232Not stockedValve tappet×2
- 175000053612Not stockedScrew×1
- 185000118038Not stockedExhaust valve×1
- 195000118039Not stockedIntake valve×1
- 205000053613Not stockedGasket×1
- NUT M6,HEX,FLANGE - 5000053616×2
- BOLT-FLANGE - 5000084361×1
- 235000084356Not stockedPipe×1
- 245000084357Not stockedStud×2
- 255000084360Not stockedGasket×1
- 265000084359Not stockedInsulator×1
- 275000084362Not stockedGasket×1
- MUFFLER-COVER - 5000084346×1
- BOLT-TAPPING - 5000117241×2
- 305000117242Not stockedBolt×1
- BAFFLE-EXHAUST - 5000118040×1
- 325000044808Not stockedSelf tapping screw×2
- BOLT-TAPPING - 5000117241×2
- 345000117243Not stockedCover×1
