WL70

WL70T4F Tubing Diagram

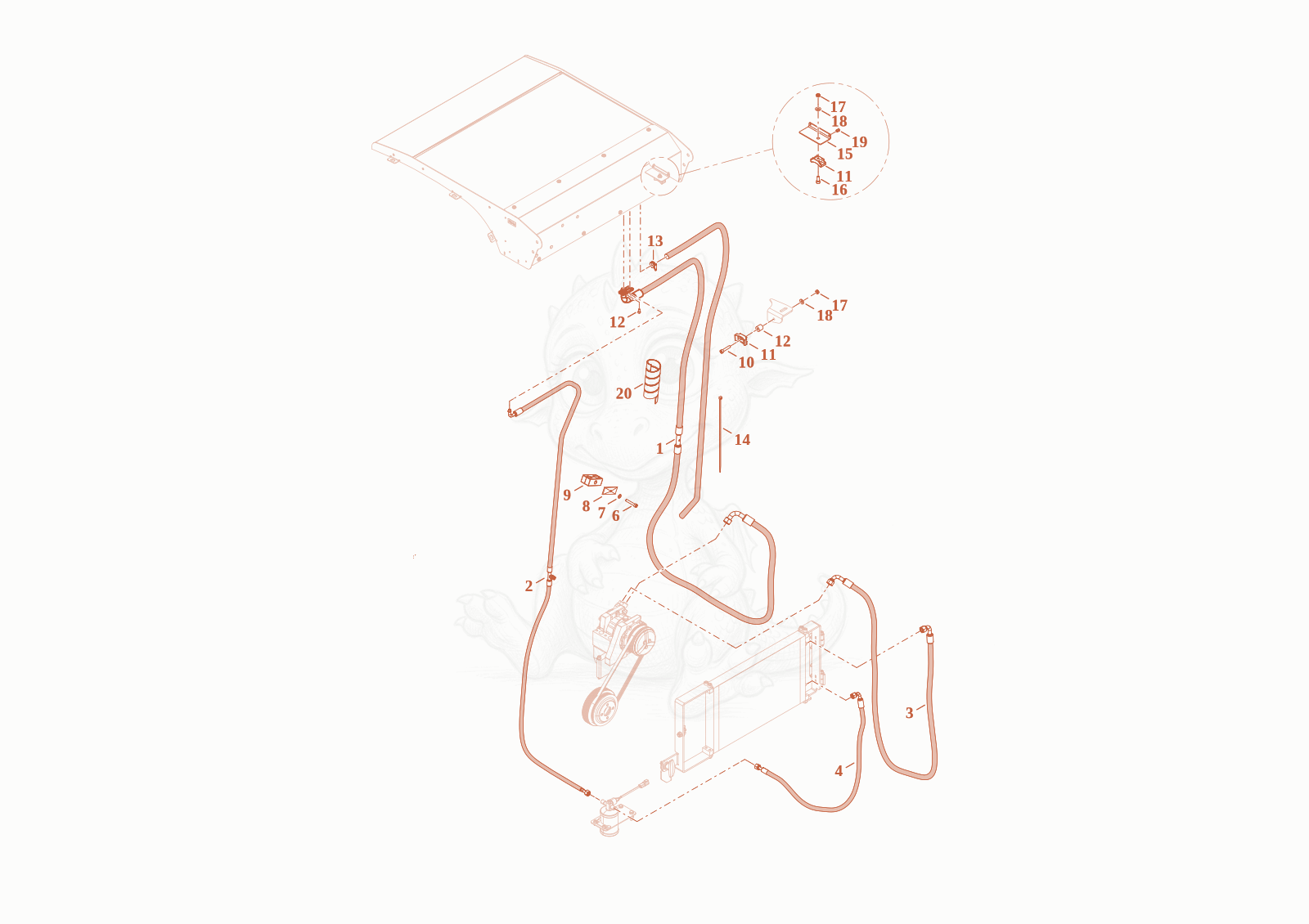

Exploded parts diagram of the Tubing of a Wacker Neuson WL70T4F, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000368012Not stocked
    hose aircondition system×1
  • 21000368011Not stocked
    hose aircondition system×1
  • 31000368032Not stocked
    hose aircondition system×1
  • 41000368031Not stocked
    hose aircondition system×1
  • 51000325849Price
    Hose - 1000325849×1
  • 61000048172Not stocked
    cheese head screw×1
  • 71000015431Not stocked
    washer×1
  • 81000031351Not stocked
    cover plate×1
  • 91000327305Not stocked
    clamp×1
  • 101000015369Not stocked
    cheese head screw×1
  • 111000282739Price
    sockets - 1000282739×3
  • 121000085454Price
    allen screw M6x12-8.8 A2C-DIN912 - 1000085454×3
  • 131000223139Price
    Clamp - 1000223139×1
  • 141000118699Price
    cable strap - 1000118699×14
  • 151000410899Price
    BRACKET - 1000410899×1
  • 161000085455Price
    allen screw M6x16-8.8 A2C - 1000085455×1
  • 171000085588Price
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×1
  • 181000222875Price
    Washer - 1000222875×3
  • 191000305454Price
    blind rivet - 1000305454×2
