WL70

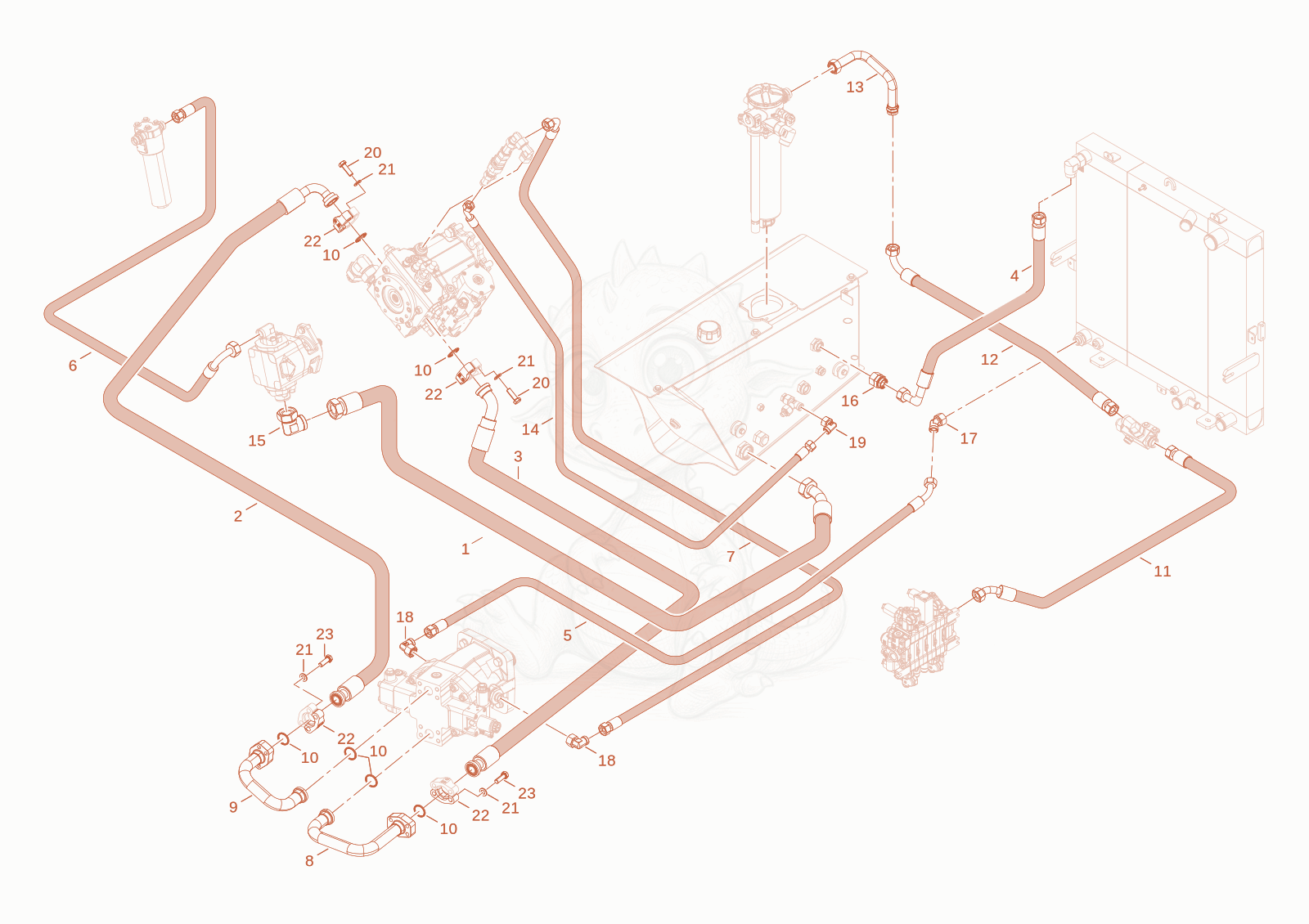

WL70T4F Tubing traction drive hydraulic Diagram
- 11000376895Not stockedHose×1
- 21000351975Not stockedHose×1
- 31000351976Not stockedHose×1
- Slhydr1Sn25Pn280Pn2890L6800 1000217804×1
- 51000366278Not stockedHose×1
- 61000376894Not stockedHose×1
- SLHYDR 2SC 19 PN22 0 PP30 90 L1200 - 1000529602×1
- SLHYDR 1SN 20 PN22 0 PN22 90 L950,0 - 1000217963×1
- 81000365330Not stockedhose fitting×2
- 91000351838Not stockedhose fitting×1
- SQUARE RING - 1000225254×6
- Slhydr1Sn25Pn280Pn2845L1300 1000218110×1
- 121000365324Not stockedHose×1
- 131000365867Not stockedhydraulic pipe×1
- SLHYDR 1SN 16 PN18 0 PN18 45 L780,0 - 1000376798×1
- EW42LOMDA3C - 1000162881×1
- 161000359666Not stockedscrew connection×1
- 171000339823Not stockedscrew joint×1
- EW22LOMD - 1000020261×2
- 191000015513Not stockedscrew joint×1
- HEX SCREW - 1000157421×8
- 211000019126Not stockedu-washer×8
- 221000028222Not stockedhalf flange×4
- cheese head screw - 1000019125×8
