WL52 Wheel Loader - Canopy

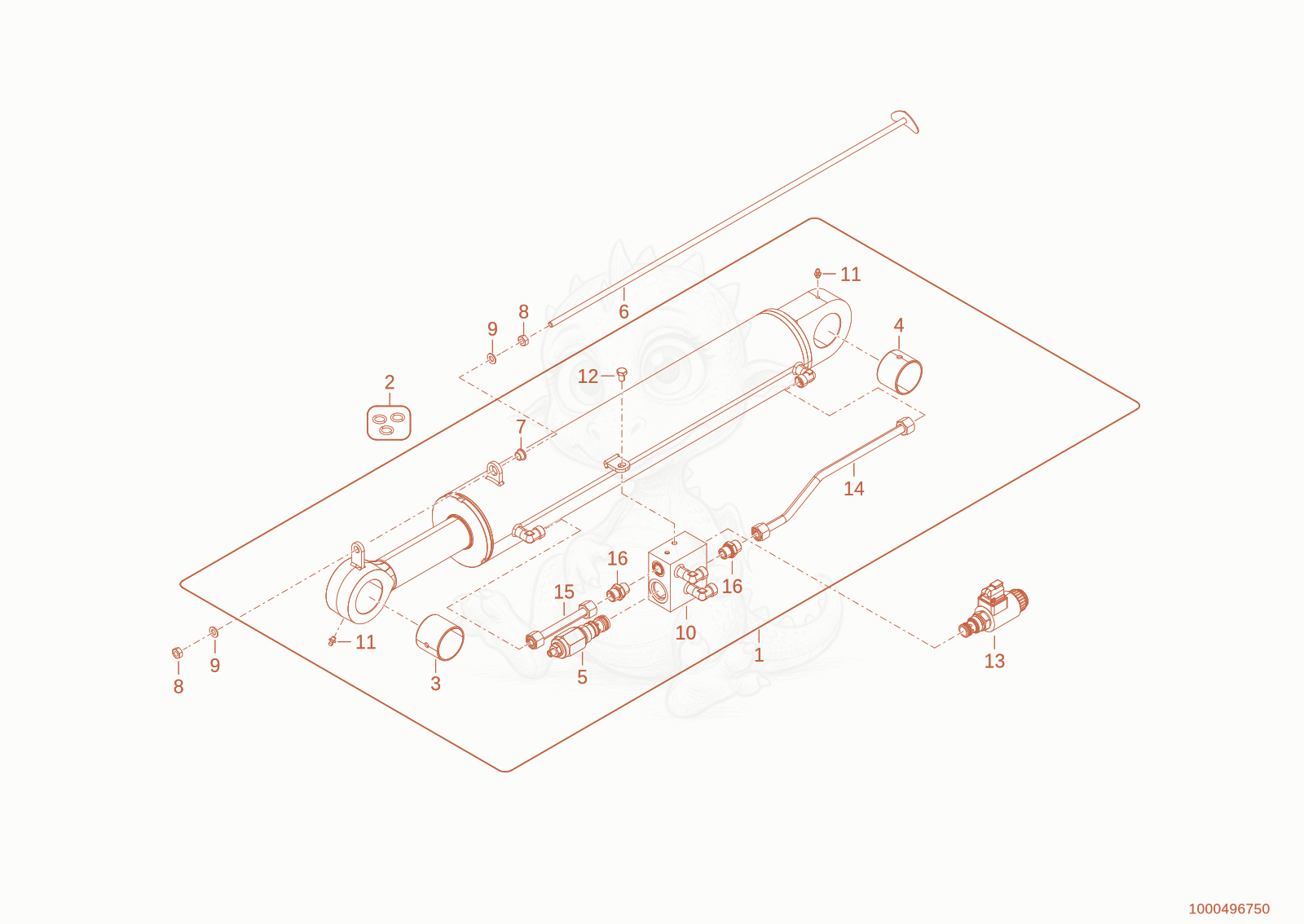

WL52CANOPY tilt ram Diagram

Exploded parts diagram of the tilt ram of a Wacker Neuson WL52CANOPY, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000397251Price
    Cylinder - 1000397251×1
  • 21000421247Not stocked
    cylinder seal kit×1
  • 31000414063Price
    bushing - 1000414063×1
  • 41000187214Price
    bushing - 1000187214×1
  • 51000338404Not stocked
    valve cartridge×1
  • 61000397236Not stocked
    Level indicator×1
  • 71000212697Price
    Bushing - 1000212697×1
  • 81000015407Not stocked
    hexagon nut×2
  • 91000015432Price
    washer 10,5 A2C DIN125 - 1000015432×2
  • 101000496749Not stocked
    valve block×1
  • 111000015475Not stocked
    grease nipple×2
  • 121000085389Price
    hex screw M8x12-8.8 A2C DIN933 - 1000085389×1
  • 131000310540Price
    Valve - 1000310540Unknown×1
  • 131000560203Not stocked
    magnet spool×1
  • 141000496746Price
    Pipe - 1000496746×1
  • 151000496737Price
    Pipe - 1000496737×1
  • 161000015492Price
    GE12LREDOMDA3C - 1000015492×2
