WL52 Wheel Loader - Canopy

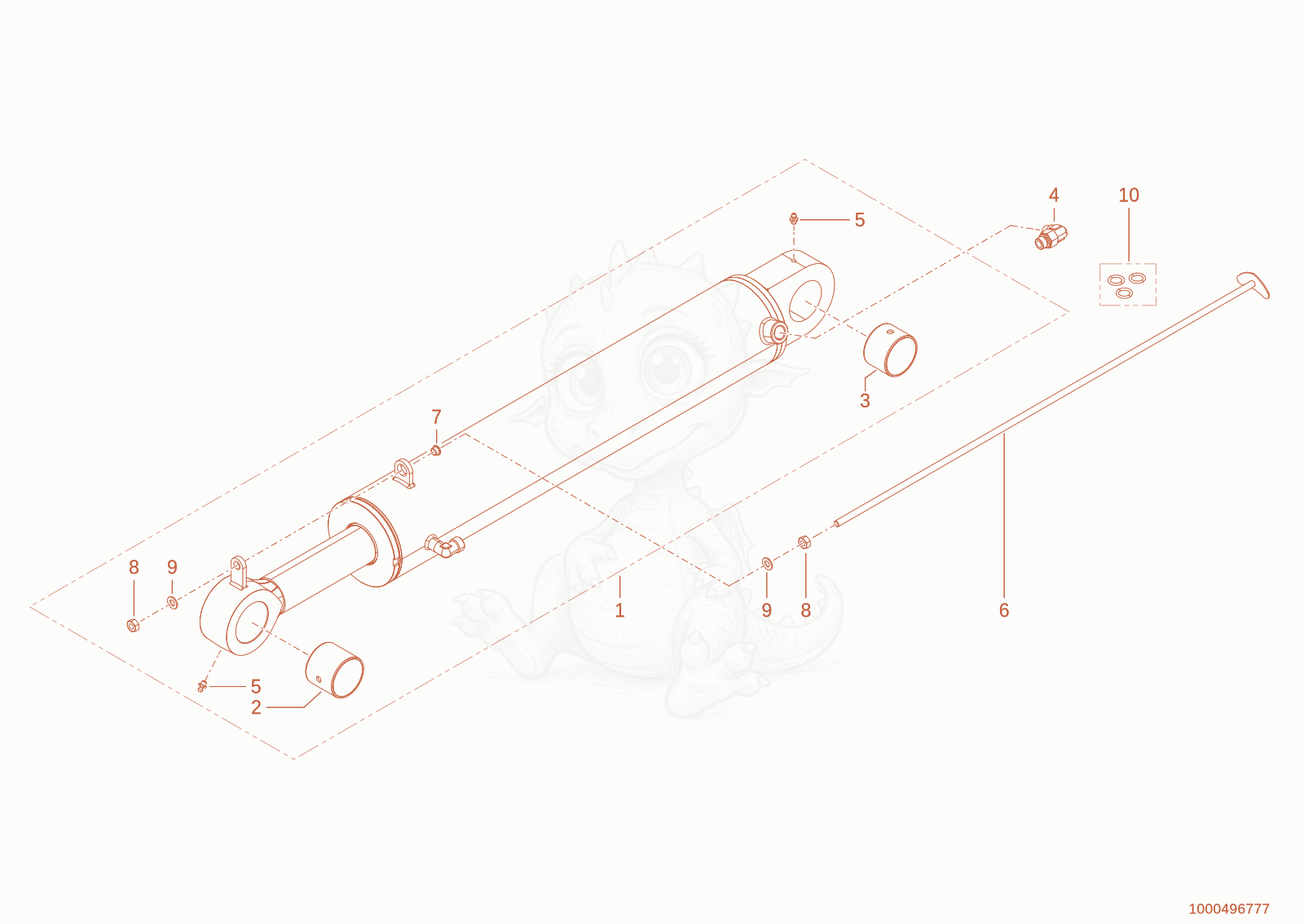

WL52CANOPY tilt ram Diagram

Exploded parts diagram of the tilt ram of a Wacker Neuson WL52CANOPY, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000486123Not stocked
    hydraulic cylinder×1
  • 21000414063Price
    bushing - 1000414063×1
  • 31000276143Price
    Bushing PM5030DX - 1000276143×1
  • 41000028478Not stocked
    screw joint×1
  • 51000015475Not stocked
    grease nipple×2
  • 61000397236Not stocked
    Level indicator×1
  • 71000212697Price
    Bushing - 1000212697×1
  • 81000015407Not stocked
    hexagon nut×2
  • 91000015432Price
    washer 10,5 A2C DIN125 - 1000015432×2
  • 101000255352Price
    CYLINDER SEAL KIT - 1000255352Unknown×1
  • 101000421247Not stocked
    cylinder seal kit×1
