WL32

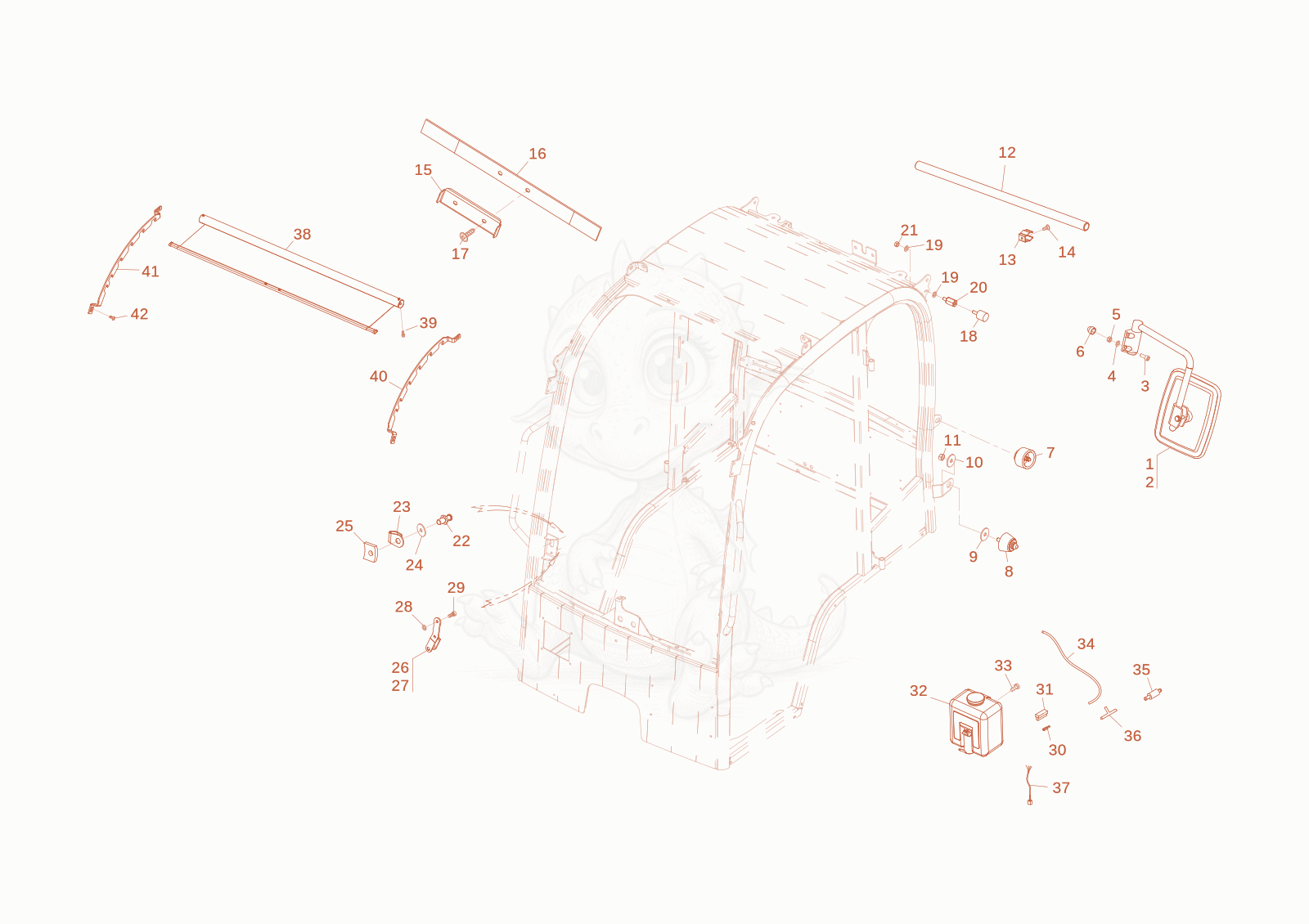

WL32 mounting set cabine Diagram
- REFLECTOR-MIRROR - 1000241667×1
- mirror with bracket - 1000241668×1
- 31000022386Not stockedcheese head screw×4
- 41000015448Not stockedwasher×4
- DIN985-M8-8-A2C - 1000015416×4
- 61000004276Not stockedcover cap×4
- Bracket - 1000213552×2
- DOOR FASTENER - 1000243802×2
- washer - 1000171786×2
- 101000012879Not stockedquad ring×2
- 111000013021Not stockedhexagon nut×2
- pipe line - 1000200856×1
- Spring - 1000222601×2
- SCREW - 1000187775×2
- PLATE - 1000213556×1
- Bracket - 1000213555×1
- countersunk screw - 1000085563×2
- RUBBER BUFFER - 1000213413×2
- washer - 1000233504×4
- Connection - 1000213523×2
- self-locking nuts M6-8 A2C-DIN985 - 1000085588×2
- 221000327097Not stockedcatch bolt×2
- BRACKET - 1000075584×1
- WASHER - 1000004273×2
- 251000068933Not stockedthread plate×2
- FASTENER-DOOR - 1000255089×1
- FASTENER-DOOR - 1000255088×1
- Washer - 1000228473×2
- 291000052668Not stockedovalhead screw×2
- 301000095371Not stockedplug sleeve×2
- plug housing - 1000095329×1
- 321000004595Not stockedWINDSCREEN WASHING INCL. PUMP×1
- 331000020553Not stockedhex screw×2
- water hose - 1000116971×1
- 351000068914Not stockednon return valve×1
- nipple - 1000208189×1
- connection cable - 1000208379×1
- 381000361242Not stockedsun visor×1
- 391000047662Not stockedhex screw×2
- 401000214604Not stockedscreening×1
- screening - 1000214605×1
- screw M6x12 ISO7380-2 - 1000165459×4
