WL32

WL32 working hydraulic Diagram

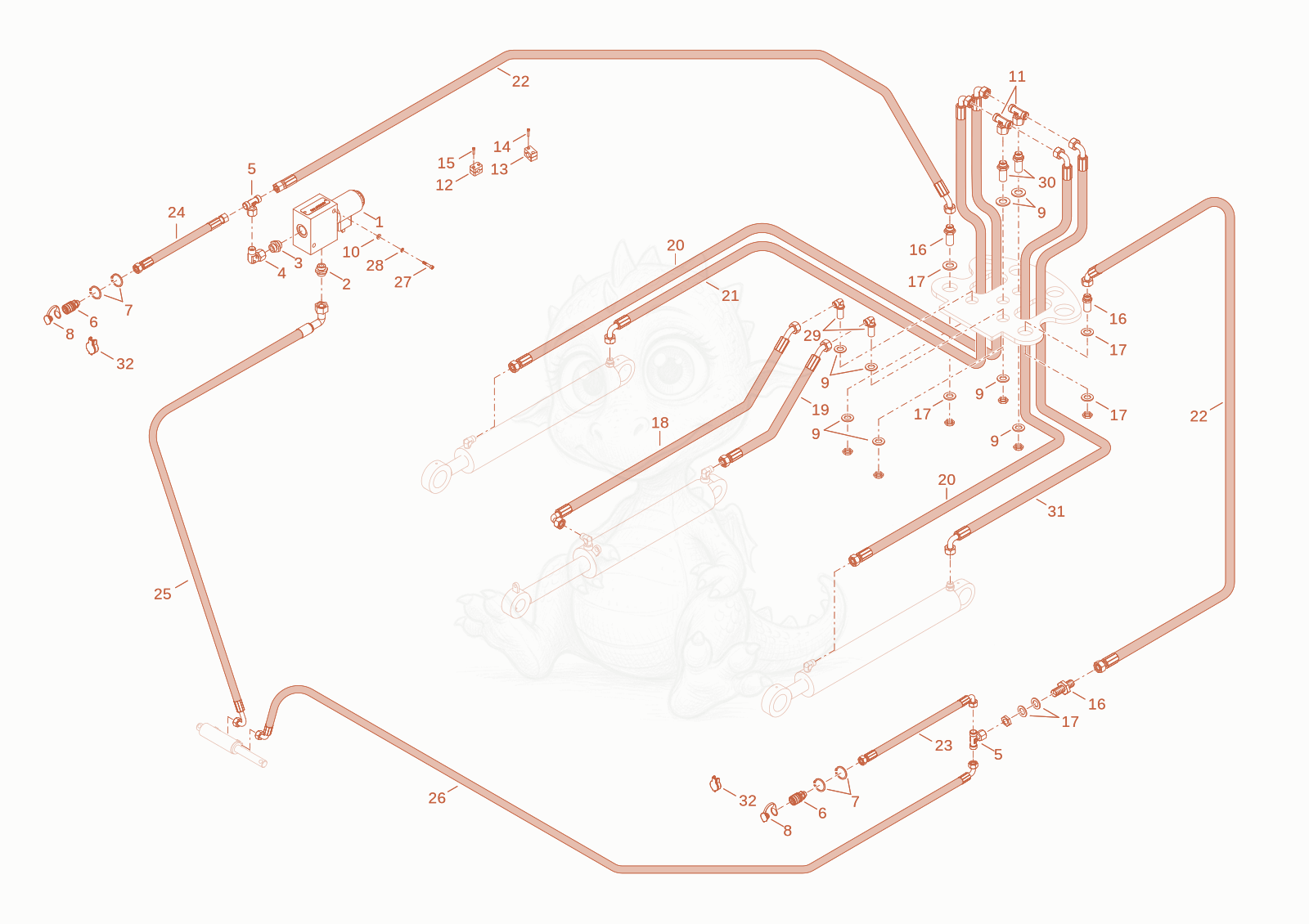

Exploded parts diagram of the working hydraulic of a Wacker Neuson WL32, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000243814Price
    VALVE-SOLENOID - 1000243814×1
  • 21000015491Not stocked
    screw joint×1
  • 31000100718Price
    GE15-LR3/8" E A3C - 1000100718×1
  • 41000015512Not stocked
    screw joint×1
  • 51000085108Price
    ET15LOMDA3C - 1000085108×2
  • 61000226162Price
    PLUG COUPLING - 1000226162×2
  • 71000095360Price
    lock ring - 1000095360×4
  • 81000186757Price
    dust cap - 1000186757×2
  • 91000082625Price
    washer 19 - 1000082625×8
  • 101000223019Price
    WASHER-U - 1000223019×2
  • 111000015519Price
    ET12LOMDA3C - 1000015519×2
  • 121000417271Not stocked
    clamp×4
  • 131000416645Not stocked
    clamp×4
  • 141000015369Not stocked
    cheese head screw×8
  • 151000085457Price
    allen screw M6x25-8.8 A2C DIN912 - 1000085457×8
  • 161000028467Not stocked
    screw joint×3
  • 171000082620Price
    washer 23 - 1000082620×6
  • 181000311688Not stocked
    Hose×1
  • 191000311687Not stocked
    Hose×1
  • 201000220726Price
    SLHYDR 2SN 10 PN12 0 PN12 90 L1250 S - 1000220726×2
  • 211000308065Not stocked
    Hose×1
  • 221000220649Price
    SLHYDR 2SN 12 PN15 0 PN15 45 L960,0S - 1000220649×2
  • 231000218465Price
    SLHYDR 2SN 12 PN15 0 PN15 90 L1600 - 1000218465×1
  • 241000238442Price
    SLHYDR 2SN 12 PN15 0 PN15 0 L1650 - 1000238442×1
  • 251000238443Price
    SLHYDR 2SC 8,0PN10 115PN10 90 L1830 S90 - 1000238443×1
  • 261000221340Price
    SLHYDR 2SC 8,0PN10 75 PN15 90 L1740 S90 - 1000221340×1
  • 271000048166Not stocked
    cheese head screw×2
  • 281000015444Not stocked
    spring washer×2
  • 291000085080Price
    WSV12LOMDA3C - 1000085080×2
  • 301000028480Price
    SV12-LA3C - 1000028480×2
  • 311000308061Not stocked
    Hose×1
  • 321000226161Price
    dust cap - 1000226161×2
