VPR1330-VIBROPLATE

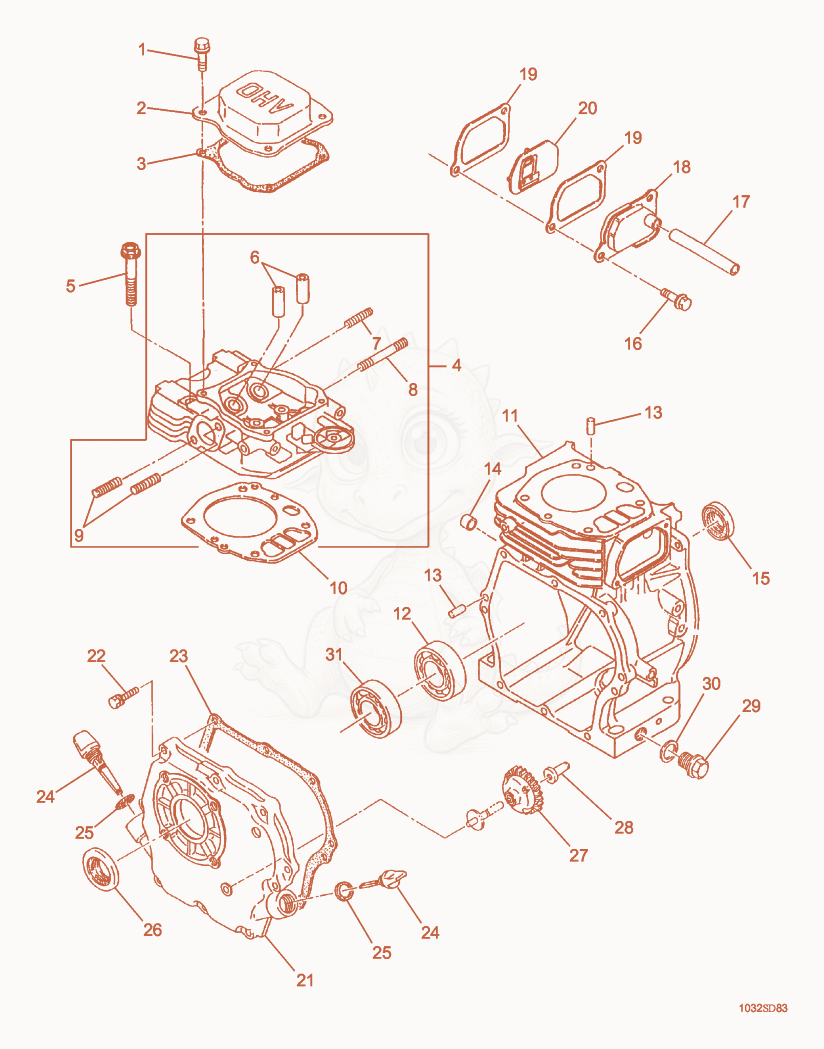

VPR1330 Crankcase cpl. Diagram
- 15000053612Not stockedScrew×4
- 25000084317Not stockedCover×1
- GASKET-ROCKER COVER - 5000084318×1
- 45000117218Not stockedCylinder head cpl.×1
- 55000084316Not stockedFlange×4
- 65000084308Not stockedValve guide×2
- 75000084310Not stockedStud×1
- 85000110885Not stockedStud×1
- 95000075214Not stockedThreaded bolt×2
- 105000084315Not stockedGasket×1
- 115000117213Not stockedCrankcase×1
- BEARING-RADIAL BALL,6205 - 5000029406×1
- PIN-DOWEL TYPE - 5000053598×2
- 145000117214Not stockedBushing×2
- 155000029407Not stockedShaft seal×1
- SCREW M6 X 14,HEX.FLANGE - 5000053648×2
- 175000117222Not stockedHose×1
- COVER-BREATHER,COMPLETE - 5000117219×1
- 195000117221Not stockedGasket×2
- 205000117220Not stockedPlate×1
- 215000110886Not stockedBearing cover×1
- SCREW M6 X 30 W/WASHER,HX.HD. - 5000053599×8
- 235000117217Not stockedGasket×1
- 245000053601Not stockedDipstick×2
- SEAL-RING - 5000075754×2
- SEAL-SHAFT 25 X 41.24 X 7 - 5000077392×1
- 275000053622Not stockedGear cpl.×1
- SLEEVE-ENGINE GOVERNOR - 5000029436×1
- 295000117215Not stockedScrew Locking×2
- 305000029327Not stockedSealing ring×2
- BEARING-RADIAL BALL,6205 - 5000029406×1
