VPR1330-VIBROPLATE

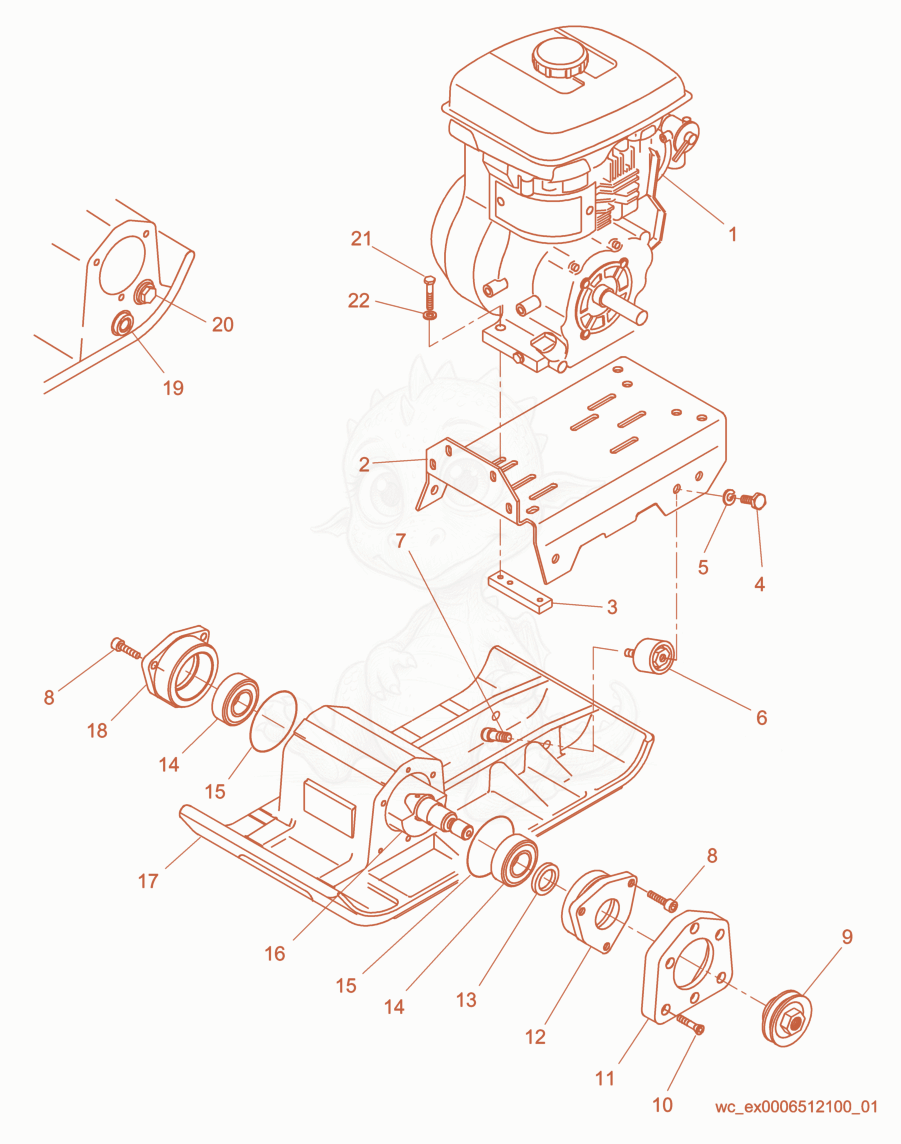

VPR1330 Baseplate/Console cpl. Diagram
- 15000114433Not stockedRobin engine×1
- 25000082538Not stockedPlate×1
- 35000078832Not stockedBar×3
- SCREW M12 X 20 HX.HD. - 5000012368×4
- WASHER-LOCK B12 - 5000012648×4
- SHOCKMOUNT 50 X 54-78SH,FORM C - 5000073124×4
- SCREW M12 X 20 12.9,SOC - 5000081333×4
- SCREW M10 X 20 12.9,SOC - 5000072758×6
- 95000071173Not stockedPulley×1
- 105000081259Not stockedFlat head screw×3
- 115000081343Not stockedWear plate×1
- 125000088697Not stockedBearing cover×1
- SEAL-SHAFT 30 X 47 X 7,2B - 5000077352×1
- 145000073427Not stockedCylindrical roller bearing×2
- 155000051483Not stockedO-Ring×2
- 165000071155Not stockedExciter shaft×1
- 175000088431Not stockedBaseplate×1
- 185000088698Not stockedBearing cover×1
- 195000013971Not stockedSight Glass×1
- PLUG M26 X 1.5 HX.HD. - 5000024838×1
- SEAL-RING 26 X 31 - 5000032006×1
- SCREW M8 X 45 HX.HD. - 5000011453×4
- WASHER-FLAT,M8,ZINC - 5000010622×4
