TH955

TH955(416-36) Hydraulic circuit steering-Pump-Tank Diagram

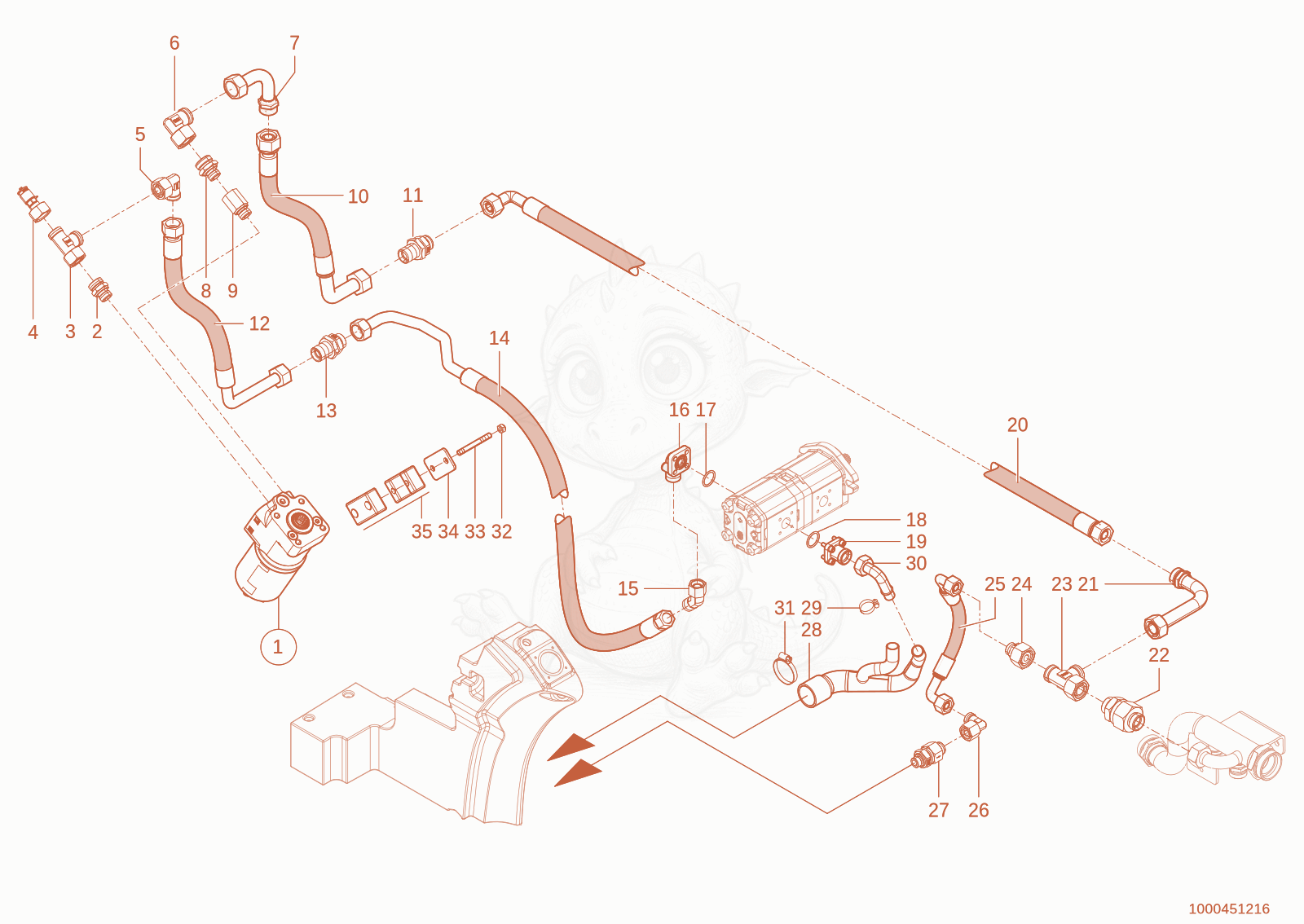

Exploded parts diagram of the Hydraulic circuit steering-Pump-Tank of a Wacker Neuson TH955(416-36), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000376395Not stocked
    hydrostatic steering×1
  • 21000015559Not stocked
    screw joint×1
  • 31000015517Not stocked
    screw joint×1
  • 41000028663Not stocked
    connection piece×1
  • 51000015513Not stocked
    screw joint×1
  • 61000020261Price
    EW22LOMD - 1000020261×1
  • 71000189144Price
    connection piece - 1000189144×1
  • 81000052157Not stocked
    screw joint×1
  • 91000146621Not stocked
    screw joint×1
  • 101000278569Not stocked
    Hose×1
  • 111000284597Price
    SV22-L (L=50) - 1000284597×1
  • 121000278570Not stocked
    Hose×1
  • 131000274810Price
    SV18-L (L=50) - 1000274810×1
  • 141000277025Not stocked
    Hose×1
  • 151000189050Price
    EW 15 L 45° - 1000189050×1
  • 161000021696Not stocked
    screw joint×1
  • 171000090406Price
    O-RING - 1000090406×1
  • 181000249612Price
    O-RING - 1000249612×1
  • 191000159947Price
    BFG28-L LK40 - 1000159947×1
  • 201000284274Not stocked
    Hose×1
  • 211000283624Not stocked
    connection piece×1
  • 221000101849Not stocked
    non return valve×1
  • 231000085045Price
    EL22LOMDA3C - 1000085045×1
  • 241000085040Price
    RED22/15LOMDA3C - 1000085040×1
  • 251000271402Not stocked
    Hose×1
  • 261000015512Not stocked
    screw joint×1
  • 271000271032Not stocked
    non return valve×1
  • 281000286175Not stocked
    preshaped tube×1
  • 291000565766Not stocked
    hose clamp×1
  • 301000232756Price
    hose fitting - 1000232756×1
  • 311000000701Price
    CLAMP - 1000000701×1
  • 321000085588Price
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×2
  • 331000048886Price
    STUD - 1000048886×2
  • 341000031643Not stocked
    cover plate×1
  • 351000032383Price
    CLAMP - 1000032383×1
