TH955

TH955(416-36) Induction system Diagram

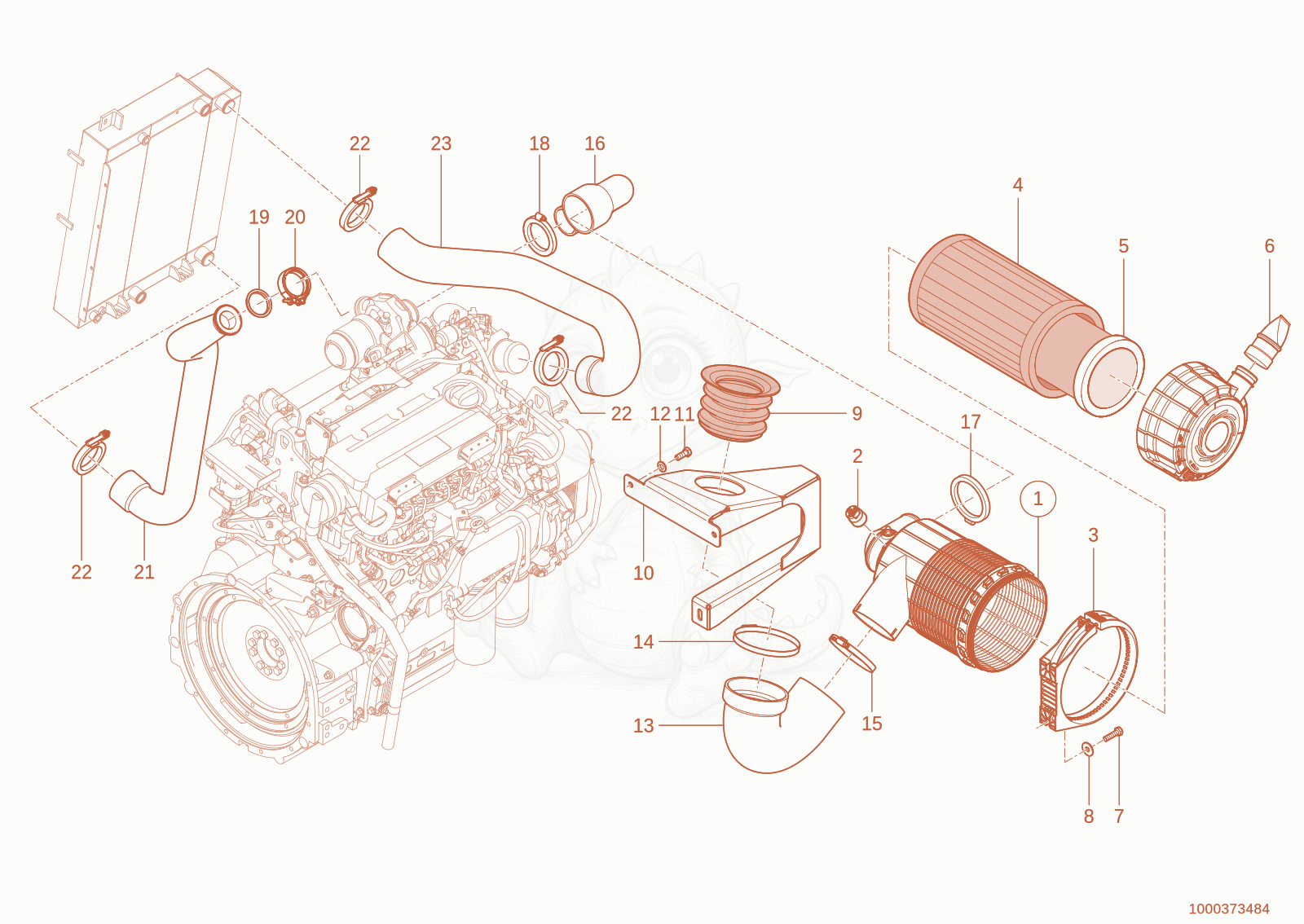

Exploded parts diagram of the Induction system of a Wacker Neuson TH955(416-36), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000256096Price
    Aircleaner 1000256096×1
  • 21000276951Price
    DIRT INDICATOR - 1000276951×1
  • 31000146052Price
    BRACKET AIRFILTER - 1000146052×1
  • 41000150949Price
    Filterelement 1000150949×1
  • 51000150950Price
    Air Filter ELEMENT - 1000150950×1
  • 61000066903Not stocked
    dustexhaust valve×1
  • 71000047828Not stocked
    hex screw×2
  • 81000013027Not stocked
    washer×2
  • 91000353095Price
    bellow - 1000353095×1
  • 101000365592Not stocked
    bracket×1
  • 111000015347Not stocked
    hex screw×3
  • 121000049219Not stocked
    washer×3
  • 131000365579Not stocked
    preshaped tube×1
  • 141000032242Price
    CLAMP - 1000032242×1
  • 151000032091Price
    CLAMP - 1000032091×1
  • 161000369776Not stocked
    preshaped tube×1
  • 171000000704Price
    CLAMP - 1000000704×1
  • 181000100478Price
    Clamp - 1000100478×1
  • 191000173804Not stocked
    seal ring×1
  • 201000171902Price
    clamp - 1000171902×1
  • 211000369777Not stocked
    preshaped tube×1
  • 221000170648Not stocked
    clamp×3
  • 231000370777Not stocked
    preshaped tube×1
