TH955

TH955(416-06) Cycle load stabilizer Diagram

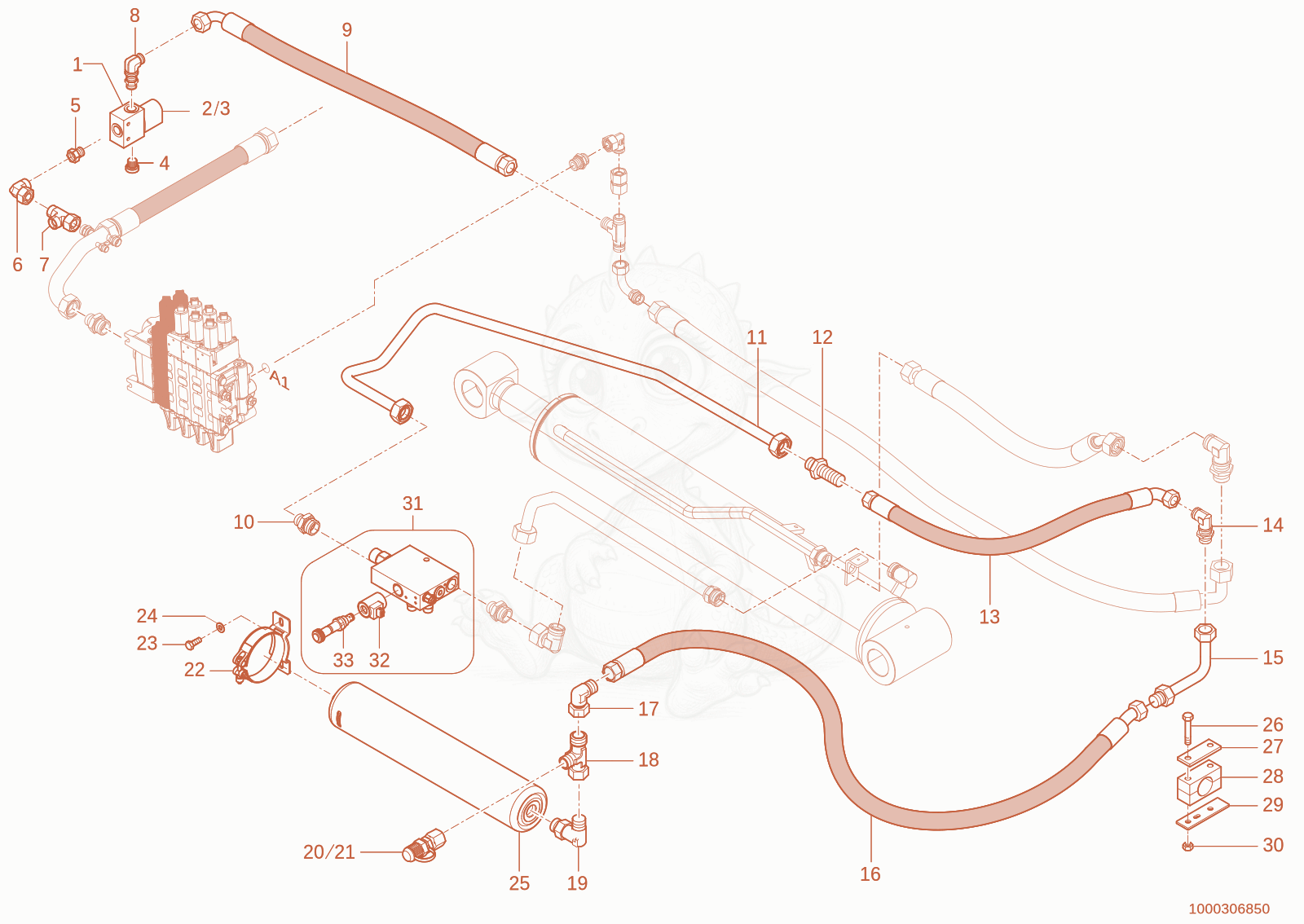

Exploded parts diagram of the Cycle load stabilizer of a Wacker Neuson TH955(416-06), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000189585Price
    VALVE - 1000189585×1
  • 21000086387Price
    VALVE - 1000086387×1
  • 31000236763Price
    Solenoid-WL37 - 1000236763×1
  • 41000030660Not stocked
    lock plug×1
  • 51000101306Price
    EGE 18PLR ED R1/2" A3C - 1000101306×1
  • 61000015513Not stocked
    screw joint×1
  • 71000015517Not stocked
    screw joint×1
  • 81000028464Not stocked
    screw joint×1
  • 91000299298Not stocked
    Hose×1
  • 101000015494Not stocked
    screw joint×1
  • 111000286750Not stocked
    hydraulic pipe×1
  • 121000028467Not stocked
    screw joint×1
  • 131000137770Not stocked
    Hose×1
  • 141000028318Not stocked
    lock screw connection×1
  • 151000167361Price
    CONNECTION PIECE - 1000167361×1
  • 161000154125Price
    SLHYDR 2SC 12 PN15 0 PN15 45 L1040 - 1000154125×1
  • 171000015512Not stocked
    screw joint×1
  • 181000015539Not stocked
    screw joint×1
  • 191000185248Price
    EWE15-L R3/4"A3C - 1000185248×1
  • 201000152125Price
    minimess point - 1000152125×1
  • 211000028603Not stocked
    minimess point×1
  • 221000269664Not stocked
    clamp×2
  • 231000013009Not stocked
    hex screw×4
  • 241000049278Not stocked
    washer×4
  • 251000269662Not stocked
    pressure accumulator×1
  • 261000015341Not stocked
    hex screw×2
  • 271000031643Not stocked
    cover plate×1
  • 281000032192Price
    CLAMP - 1000032192×1
  • 291000161320Price
    Bracket - 1000161320×1
  • 301000085588Price
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×2
  • 311000274651Price
    Valveblock 1000274651×1
  • 321000320832Not stocked
    magnet spool×1
  • 331000401465Price
    VALVE - 1000401465×1
