TH955

TH955(416-06) Trailer brake Diagram

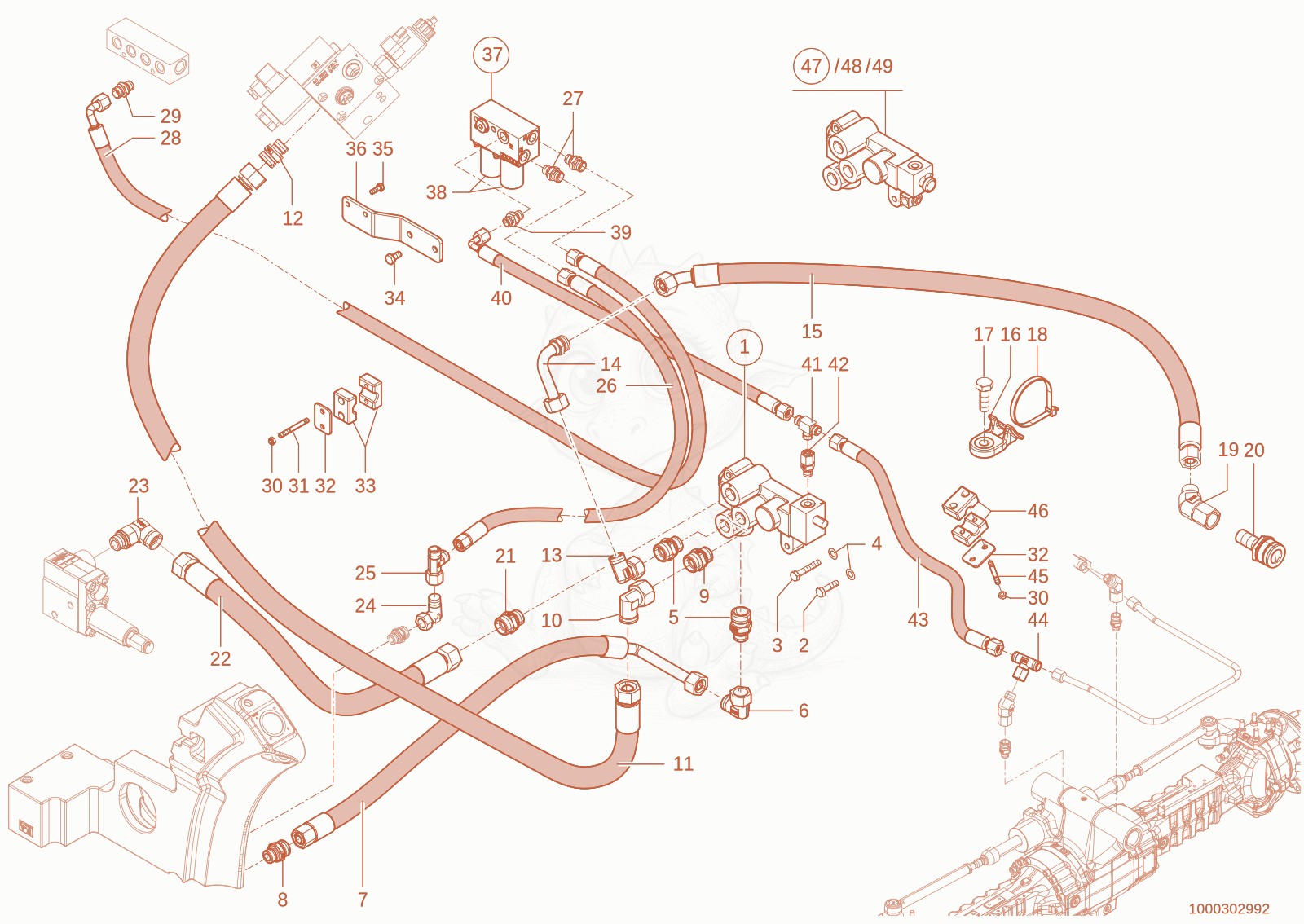

Exploded parts diagram of the Trailer brake of a Wacker Neuson TH955(416-06), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000345466Not stocked
    brake valve×1
  • 21000047828Not stocked
    hex screw×1
  • 31000015380Not stocked
    hex screw×1
  • 41000015431Not stocked
    washer×1
  • 51000146660Price
    GE15LM22X1,5OA3C - 1000146660×2
  • 61000015512Not stocked
    screw joint×1
  • 71000271435Not stocked
    Hose×1
  • 81000020803Not stocked
    screw joint×1
  • 91000147704Price
    GE18LM22X1,5OROMDA3C - 1000147704×1
  • 101000015513Not stocked
    screw joint×1
  • 111000271415Not stocked
    Hose×1
  • 121000015559Not stocked
    screw joint×1
  • 131000015512Not stocked
    screw joint×1
  • 141000036911Not stocked
    connection piece×1
  • 151000299737Not stocked
    Hose×1
  • 161000282736Price
    sockets - 1000282736×2
  • 171000019136Not stocked
    hex screw×2
  • 181000090012Price
    CABLE STRAP - 1000090012×2
  • 191000170681Price
    EW 12 L 45° - 1000170681×1
  • 201000338627Not stocked
    quick lock coupling×1
  • 211000147704Price
    GE18LM22X1,5OROMDA3C - 1000147704×1
  • 221000299750Not stocked
    Hose×1
  • 231000028464Not stocked
    screw joint×1
  • 241000015510Not stocked
    screw joint×1
  • 251000085089Price
    EL10LOMDA3C - 1000085089×1
  • 261000277474Not stocked
    Hose×1
  • 271000015490Not stocked
    screw joint×1
  • 281000271436Not stocked
    Hose×1
  • 291000085114Price
    GE10LMEDOMDA3C - 1000085114×1
  • 301000085588Price
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×6
  • 311000048887Price
    STUD - 1000048887×4
  • 321000031260Not stocked
    cover plate×3
  • 331000031602Price
    CLAMP - 1000031602×2
  • 341000085382Price
    HEX SCREW - 1000085382×2
  • 351000019136Not stocked
    hex screw×2
  • 361000272866Price
    Bracket - 1000272866×1
  • 371000052097Not stocked
    solenoid valve×1
  • 381000135753Not stocked
    valve×2
  • 391000015488Not stocked
    screw joint×1
  • 401000271431Not stocked
    Hose×1
  • 411000101307Not stocked
    replacement valve×1
  • 421000273543Price
    EGE 8-L M12X1,5 - 1000273543×1
  • 431000271430Not stocked
    Hose×1
  • 441000015518Price
    ET08LOMDA3C - 1000015518×1
  • 451000048884Not stocked
    stud×1
  • 461000273545Price
    CLAMP - 1000273545×1
  • 471000171198Not stocked
    brake valve×1
  • 481000251537Not stocked
    seal kit×1
  • 491000251538Not stocked
    spring set×1
  • 501000312118Not stocked
    Dust Cap×1
