TH730

TH730(415-24) oil tank Diagram

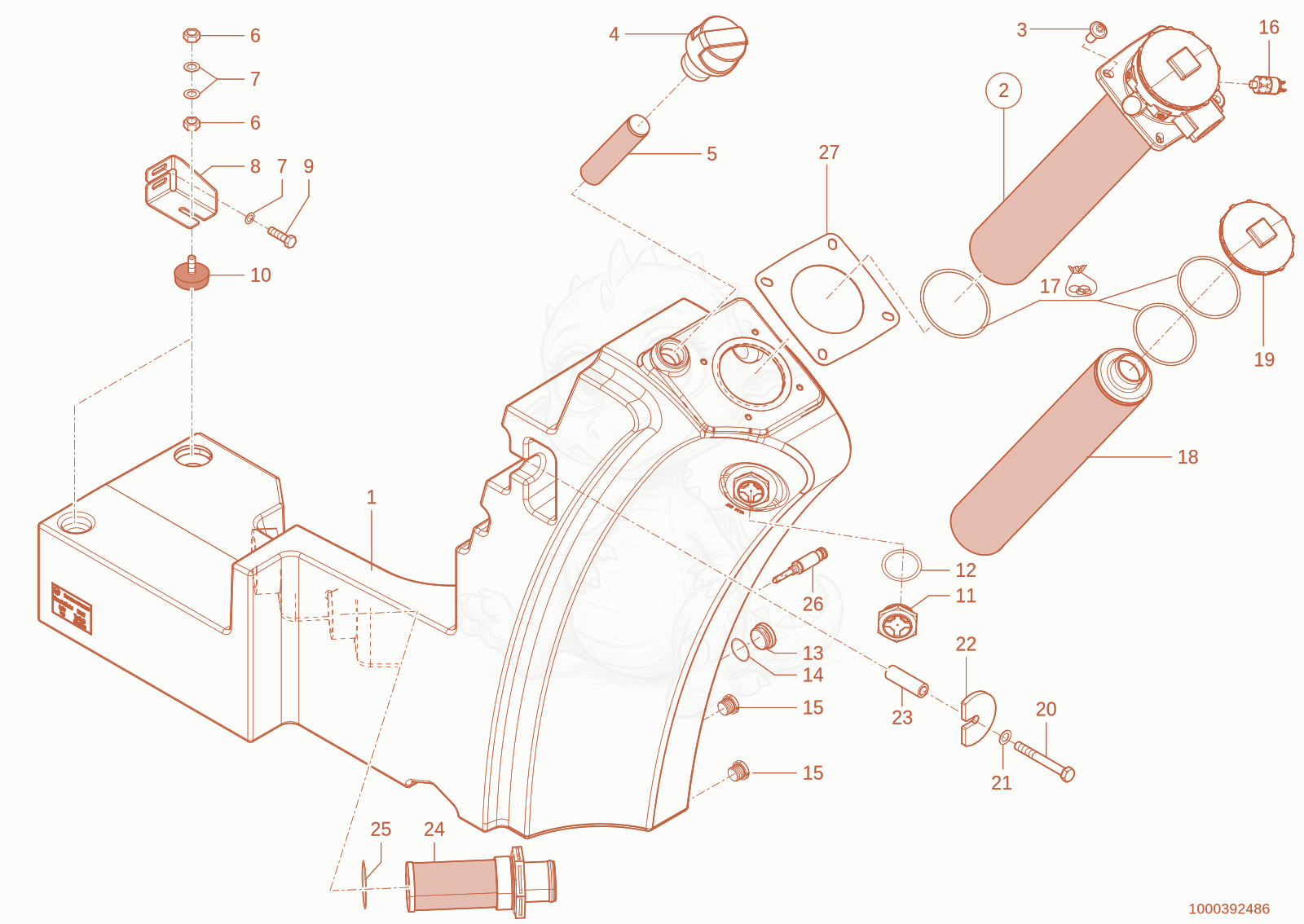

Exploded parts diagram of the oil tank of a Wacker Neuson TH730(415-24), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000284986Not stocked
    oil tank×1
  • 21000277757Not stocked
    reflux filter×1
  • 31000385422Price
    Screw - 1000385422×4
  • 41000357900Not stocked
    venting filter×1
  • 51000028238Price
    SCREEN - 1000028238×1
  • 61000013022Not stocked
    hexagon nut×4
  • 71000013027Not stocked
    washer×8
  • 81000258851Price
    Bracket - 1000258851×2
  • 91000013008Not stocked
    hex screw×4
  • 101000264035Price
    Rubber buffer - 1000264035×2
  • 111000022318Not stocked
    oillevel sight glass×1
  • 121000021982Not stocked
    seal ring×1
  • 131000269637Price
    LOCK SCREW - 1000269637×1
  • 141000050121Not stocked
    seal ring×1
  • 151000126915Not stocked
    lock screw×5
  • 161000277756Price
    Pressure switch 2 bar - 1000277756×1
  • 171000109141Price
    seal kit - 1000109141×1
  • 181000126919Price
    filter cartridge - 1000126919×1
  • 191000242082Price
    cover back flow filter - 1000242082×1
  • 201000047395Not stocked
    hex screw×1
  • 211000085613Price
    washer - 1000085613×1
  • 221000271071Price
    FIXING PLATE - 1000271071×1
  • 231000285691Price
    pipe - 1000285691×1
  • 241000282257Price
    Suction Filter - 1000282257×1
  • 251000282964Price
    o-ring - 1000282964×1
  • 261000145961Not stocked
    Oil level giver×1
  • 271000317143Price
    seal - 1000317143×1
