TH730

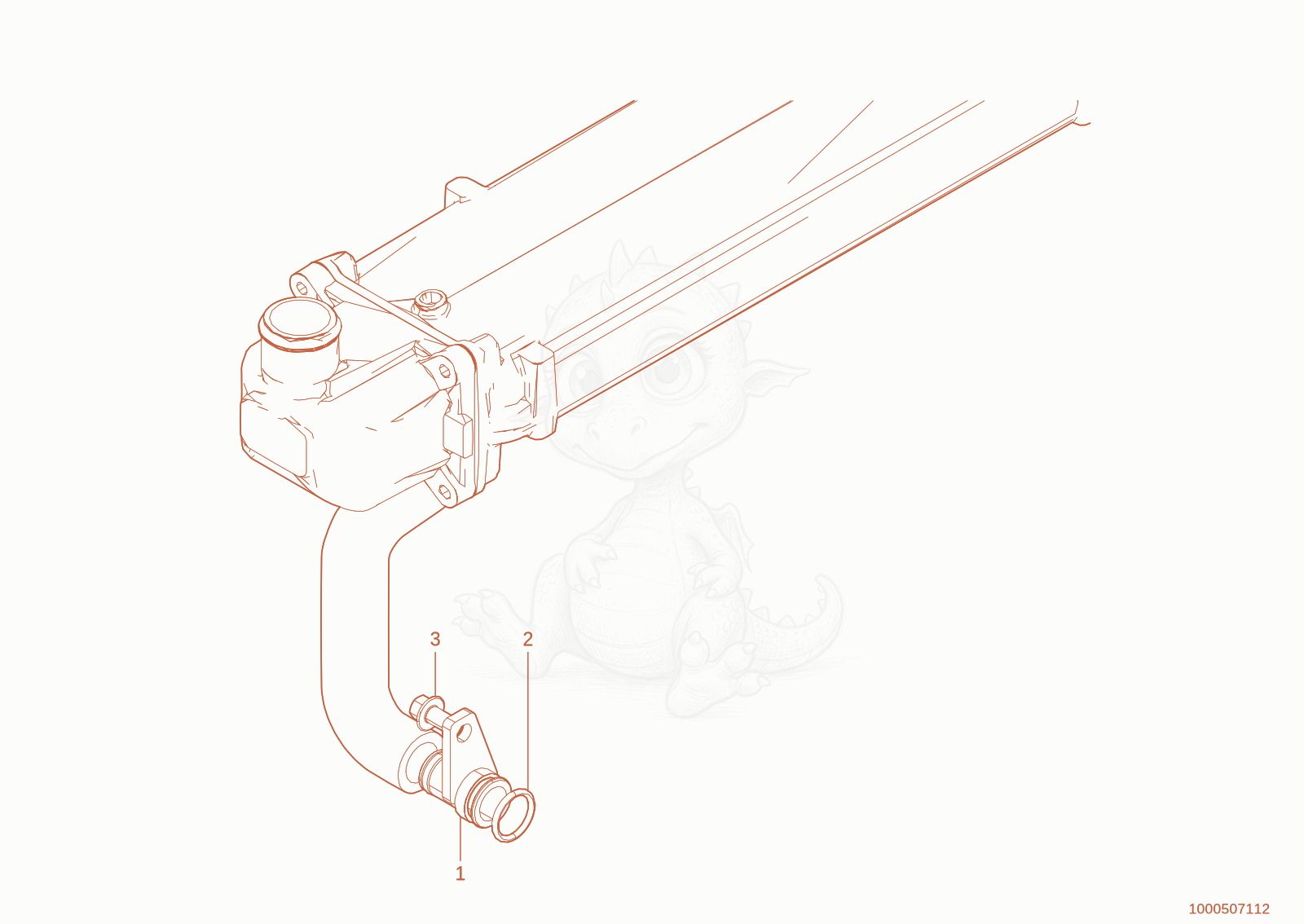

TH730(415-24) hose connection Diagram

Exploded parts diagram of the hose connection of a Wacker Neuson TH730(415-24), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000507134Not stocked
    hose stud×1
  • 21000460308Not stocked
    seal ring×1
  • 31000254092Not stocked
    hex screw×1
