TH522 Telehandler

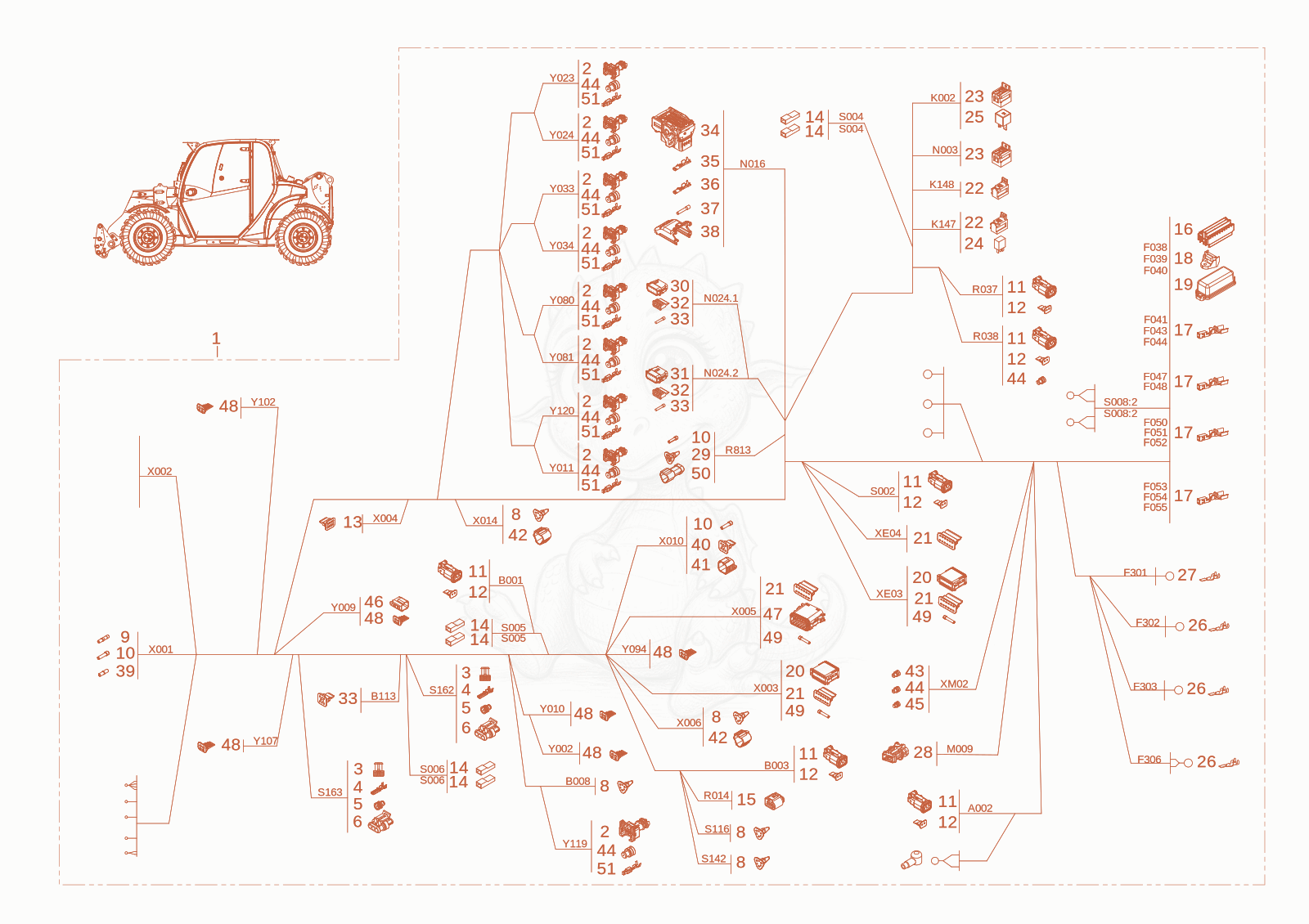

TH522(TL48-01) main harness Diagram
- 11000362382Not stockedmain harness×1
- PLUG SLEEVE HOUSING - 1000229790×10
- 31000052672Not stockedseal×4
- PLUG SLEEVE CONNECTION - 1000229891×4
- Plug - 1000052627×2
- 61000051989Not stockedbushing housing×2
- 71000319478Not stockedprotecting cap×1
- LOOKING - 1000229811×5
- ROUND SOCKET SLEEVE - 1000229911×1
- 101000030446Not stockedplug×1
- HOUSING-PLUG - 1000229795×6
- HOUSING-PLUG - 1000229786×6
- HOUSING-PLUG - 1000229851×1
- 141000027435Not stockedinsulating sleeve×6
- bushing housing - 1000262118×1
- Fuse box - 1000256454×1
- 171000358218Not stockedbushing contact×1
- fuse holder - 1000299972×2
- fuse cap - 1000299971×1
- 201000388219Not stockedbushing housing×2
- locking - 1000385576×4
- sockets - 1000100593×2
- bracket relay - 1000207057×2
- 241000333390Not stockedrelay×1
- 251000154042Not stockedrelay×1
- PLUG CONNECTOR - 1000085003×1
- PLUG CONNECTOR - 1000095322×3
- Housing - 1000311718×1
- locking - 1000277472×1
- 301000148250Not stockedplug bushing×1
- Pin housing - 1000148271×1
- Pin housing - 1000148272×2
- Plug - 1000161431×1
- PLUG - 1000306993×1
- bushing - 1000306992×26
- bushing - 1000306994×8
- 371000306978Not stockedblind plug×14
- 381000340963Not stockedcover cap×1
- ROUND SOCKET SLEEVE - 1000229913×2
- Connector-Locking - 1000229838×1
- 411000379102Not stockedprotecting cap×1
- 421000377645Not stockedprotecting cap×2
- 431000344851Not stockedseal×1
- Seal - 1000344800×2
- Plug - 1000128773×1
- PLUG - 1000275748×2
- 471000385574Not stockedbushing housing×2
- locking - 1000354443×6
- Seal - 1000385806×1
- diode - 1000277469×1
- plug - 1000229905×20
