TH522 Telehandler

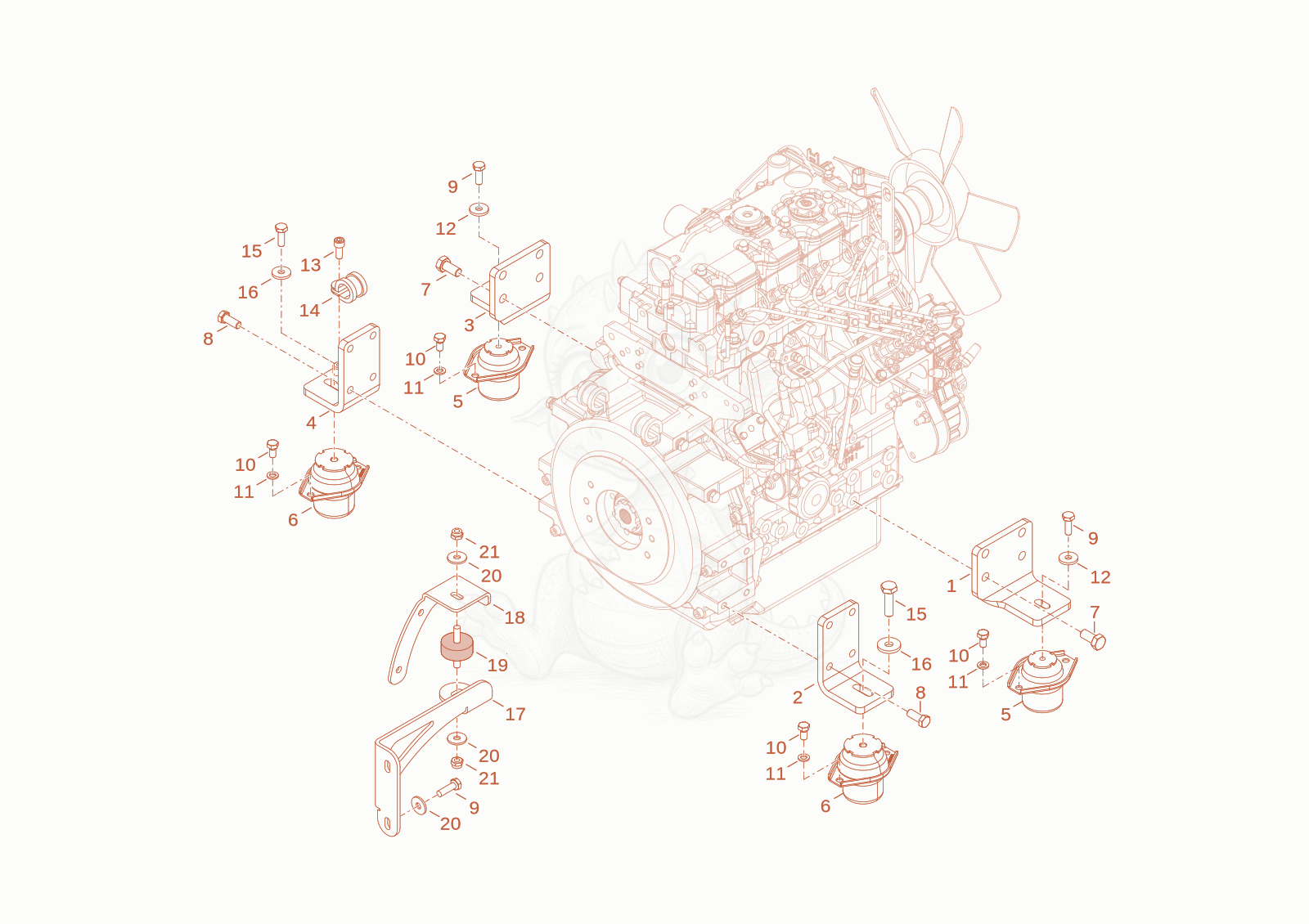

TH522(TL48-01) Engine bedding Diagram
- Bracket - 1000364109×1
- Bracket - 1000360717×1
- Bracket - 1000364110×1
- Bracket - 1000360716×1
- 51000378454Not stockedhydro.bearing×2
- 61000012361Not stockedhydro.bearing×2
- hex screw - 1000223024×8
- Bolt - 1000222956×8
- 91000015346Not stockedhex screw×4
- hex screw M10x20-8.8 A2C DIN933 - 1000085411×8
- washer 10,5 A2C DIN125 - 1000015432×8
- Washer - 1000222577×4
- 131000048917Not stockedstud×1
- Clamp - 1000223497×1
- hex screw - 1000085419×2
- Washer - 1000223005×4
- Bracket - 1000392150×1
- Bracket - 1000392219×1
- SHOCKMOUNT - 1000228561×1
- Washer - 1000222588×4
- nut M10-8 A2C-DIN985 - 1000015408×2
