ST35 Compact Track Loader

ST35(S04-02) One point lift kit (OPTION) Diagram

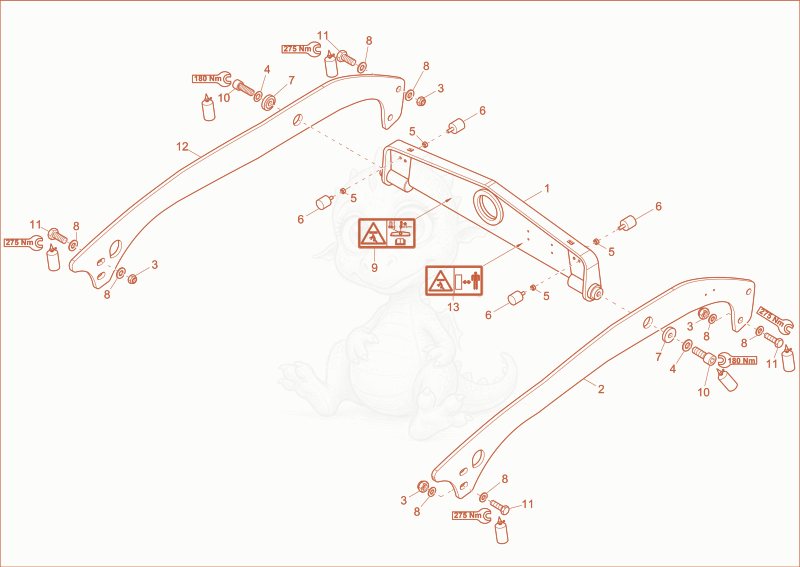

Exploded parts diagram of the One point lift kit (OPTION) of a Wacker Neuson ST35(S04-02), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000304766Price
    Joint 1000304766×1
  • 21000291489Price
    Fixingplate 1000291489×1
  • 31000020788Not stocked
    Hexagon nut×8
  • 41000015453Not stocked
    Northlock disc×2
  • 51000013021Not stocked
    Hexagon nut×4
  • 61000065202Price
    BUFFER - 1000065202×4
  • 71000293339Price
    lock washer - 1000293339×2
  • 81000085605Price
    washer A 17 St A2C DIN125 - 1000085605×16
  • 91000255990Price
    STICKER - 1000255990×2
  • 101000019125Price
    cheese head screw - 1000019125×2
  • 111000085430Price
    HEX SCREW M16x50-10.9 DACRO-DIN933 - 1000085430×8
  • 121000291486Price
    Fixingplate 1000291486×1
  • 131000094898Price
    STICKER LIFTING OPERATION - 1000094898×2
