ST35 Compact Track Loader

ST35(S04-02) lift arm Diagram

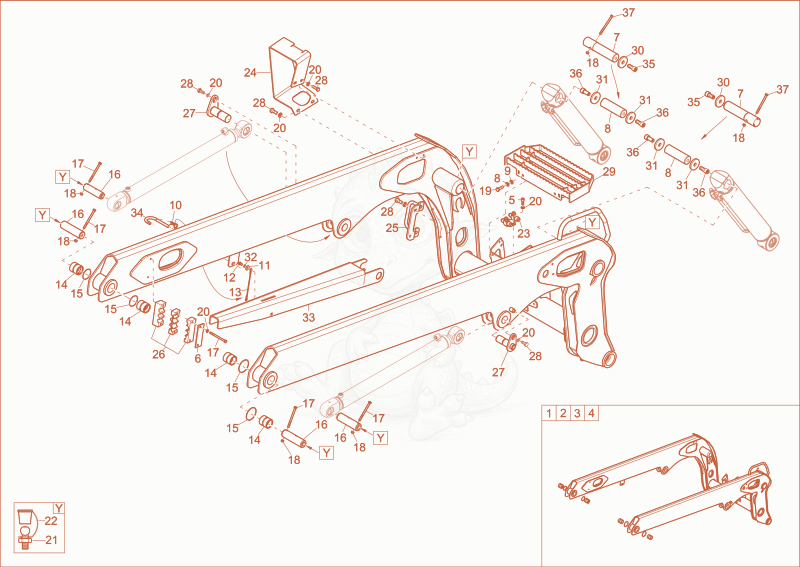

Exploded parts diagram of the lift arm of a Wacker Neuson ST35(S04-02), with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

15200025206Not stocked
Lift Arm-Radial, Painted P-5000112006×1
21000333456Not stocked
lift arm×1
31000350909Not stocked
PRE-ASSEMBLED BOOM×1
41000350910Not stocked
PRE-ASSEMBLED BOOM×1
51000082374Price
cheese head screw M10x16 - 1000082374×2
61000305235Price
cover plate - 1000305235×2
71000328599Price
PIN - 1000328599×1
81000335230Price
PIN - 1000335230×2
91000092292Price
washer A8,4-140HV A2C DIN125 - 1000092292×8
101000082627Price
plug - 1000082627×1
111000013027Not stocked
washer×1
121000019136Not stocked
Hex screw×1
131000125252Price
Cable pull - 1000125252×1
141000019750Not stocked
Steel bushing×4
151000021601Not stocked
Lock ring×4
161000288512Price
PIN DM=40x203 (S04) - 1000288512×4
171000085323Not stocked
Hex screw×8
181000015416Price
DIN985-M8-8-A2C - 1000015416×4
191000019136Not stocked
Hex screw×4
201000015432Price
washer 10,5 A2C DIN125 - 1000015432×10
211000015476Not stocked
Grease nipple×6
221000015480Not stocked
Cap grease nipple×6
231000313226Not stocked
Connection piece×1
241000287487Price
Cover 1000287487×1
251000288382Price
HOSE GUIDE - 1000288382×1
261000288388Not stocked
Clamp×1
271000287927Price
Pin 1000287927×2
281000015345Price
Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×8
291000313661Not stocked
Foot step×1
301000320609Not stocked
bolt sheet metal×2
311000320609Not stocked
bolt sheet metal×4
321000015437Not stocked
Lock washer×4
331000330091Not stocked
Lift arm support×1
341000288389Price
locking - 1000288389×1
351000323299Not stocked
screws instrum.housing×2
361000048307Not stocked
Cheese head screw×4
371000085323Not stocked
Hex screw×2
381000015416Price
DIN985-M8-8-A2C - 1000015416×2
