RT820EC/HT-TRENCH ROLLER

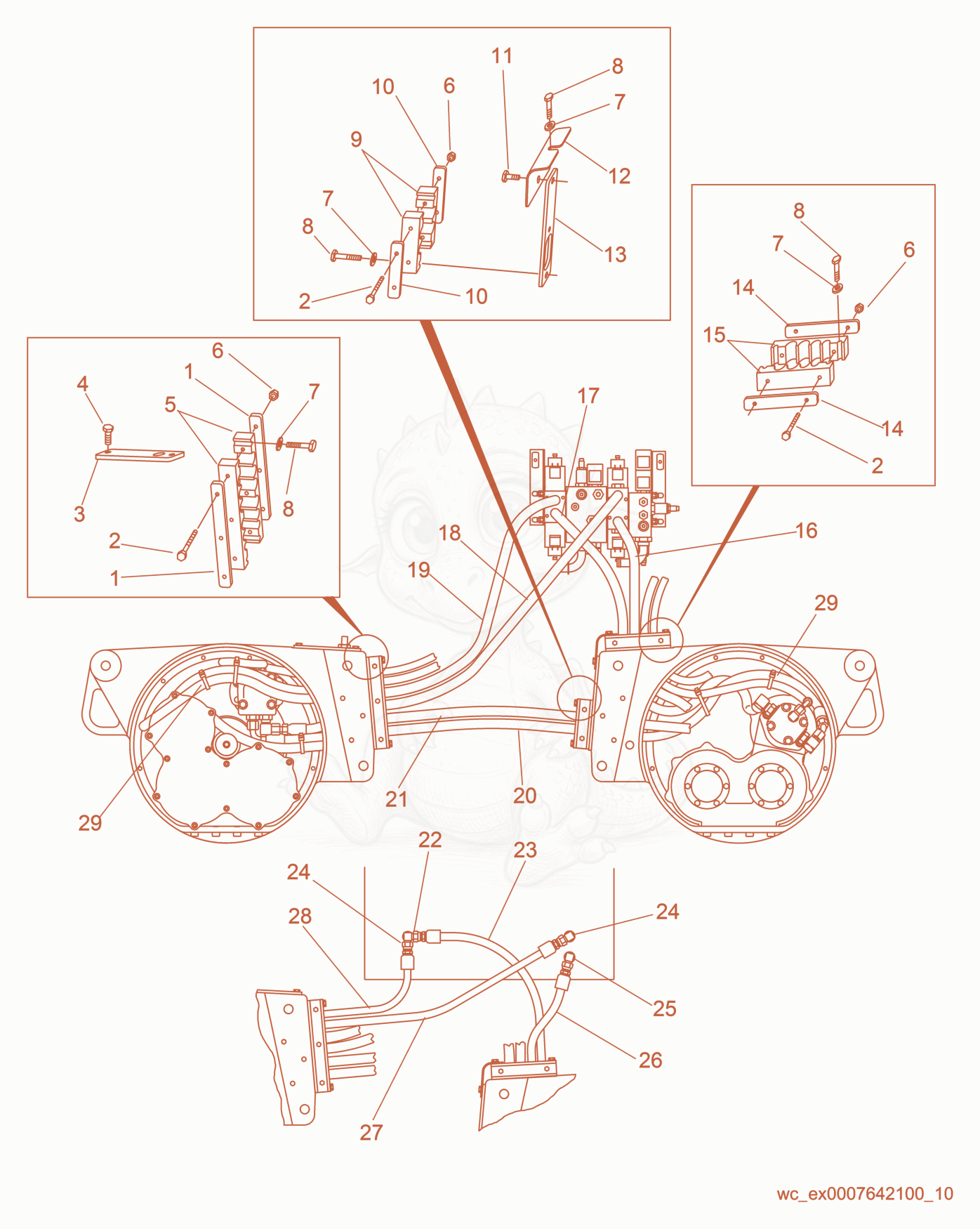

RT820HT Hydraulic Piping Diagram
- 15000081978Not stockedClamping plate×2
- SCREW M6 X 50 HX.HD. - 5000011331×7
- 35000086555Not stockedPlate×1
- SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×2
- CLAMP-HOSE,LONG - 5000081975×2
- NUT-LOCK M6,HEX,SERR,FLANGE - 5000029117×7
- WASHER-FLAT,M8,ZINC - 5000010622×6
- SCREW M8 X 60 HX.HD. - 5000011345×6
- CLAMP-HOSE,SHORT - 5000081974×2
- 105000081977Not stockedClamping plate×2
- SCREW M8 X 20 HX.HD. - 5000012362×1
- 125000085657Not stockedGuard×1
- 135000081979Not stockedAdapter×1
- 145000081976Not stockedClamping plate×2
- CLAMP-HOSE - 5000081973×2
- KIT-HOSE - 5000117533×1
- KIT-HOSE - 5000117534×1
- KIT-HOSE - 5000117531×1
- KIT-HOSE - 5000117532×1
- KIT-HOSE - 5000117522×1
- KIT-HOSE - 5000117530×1
- O-RING .468 X.078 DURO90 3-906 - 5000080731×1
- O-RING .36 X .07 #6 ORFS 2-012 - 5000080736×1
- FITTING-HYDRAULIC - 5000083411×1
- HOSE-ASSEMBLY - 5000117526×1
- O-RING .468 X.078 DURO90 3-906 - 5000080731×2
- O-RING .36 X .07 #6 ORFS 2-012 - 5000080736×2
- FITTING-HYDRAULIC - 5000083412×2
- FITTING-ELBOW 90,HYDRAULIC - 5000078962×1
- O-RING .468 X.078 DURO90 3-906 - 5000080731×1
- O-RING .36 X .07 #6 ORFS 2-012 - 5000080736×1
- KIT-HOSE - 5000117536×1
- KIT-HOSE - 5000117535×1
- HOSE-ASSEMBLY - 5000116693×1
- 295000111569Not stockedTie cable×1
