RT820EC/HT-TRENCH ROLLER

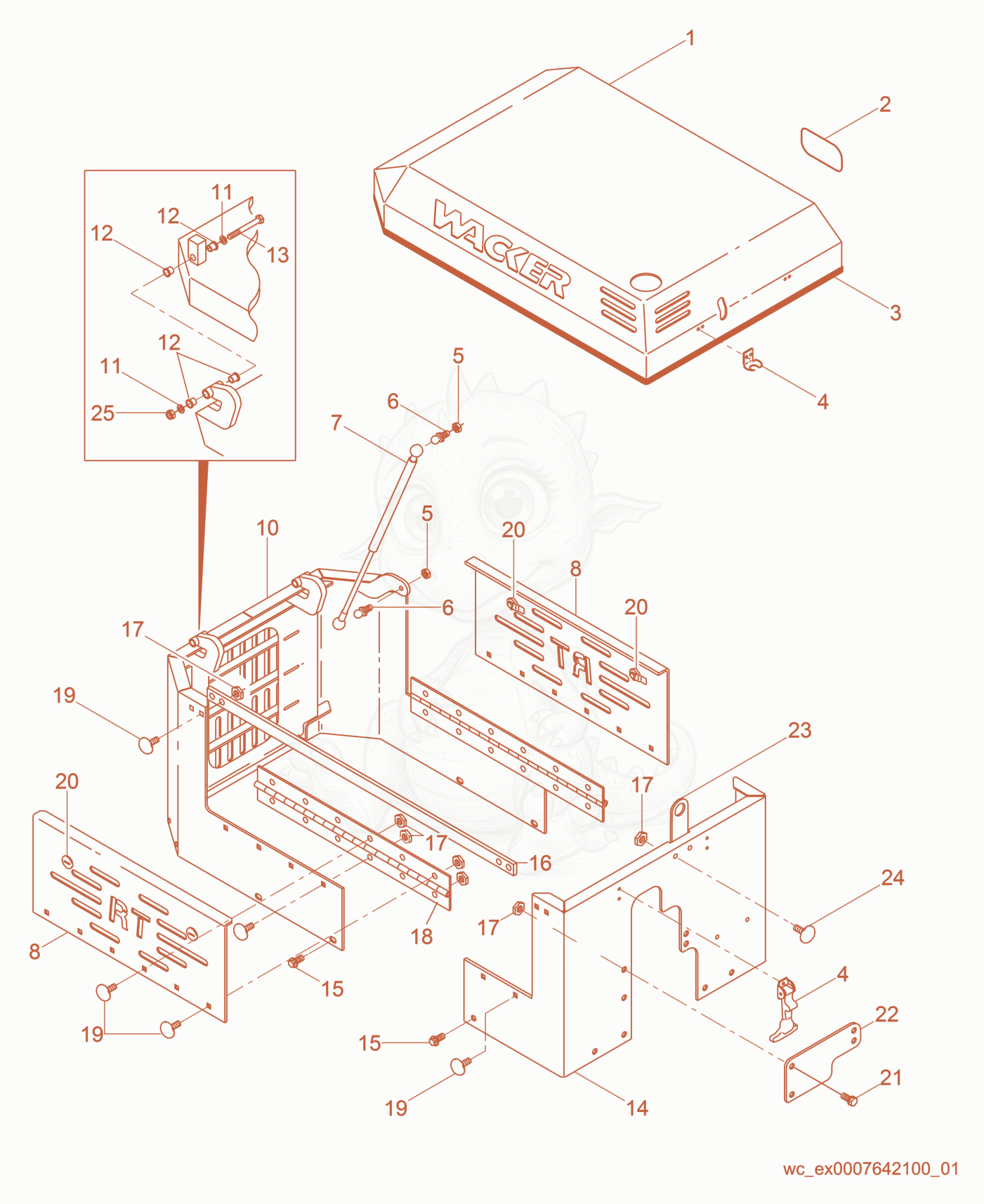

RT820HT Front Frame Diagram
- 15000086414Not stockedCover×1
- 25000086956Not stockedMolding×1
- SEAL-TRIM,FRONT COVER,96.5 - 5000089402×1
- NUT-LOCK M5 HEX. - 5000010369×8
- SCREW M5 X 16 HX.HD. - 5000011476×8
- LATCH-FLEXIBLE DRAW - 5000079309×2
- 55000025616Not stockedNut×2
- STUD-BALL - 5000086511×2
- SPRING-GAS - 5000086510×1
- 85000111031Not stockedCover×2
- NUT-LOCK M5 HEX. - 5000010369×4
- 105000110713Not stockedCover×1
- 115000010742Not stockedWasher×2
- BUSHING-NYLON - 5000083190×8
- SCREW M8 X 75 HX.HD. - 5000011348×2
- 145000110712Not stockedCover×1
- SCREW M8 X 16,HX.HD,SER.FLG - 5000079363×16
- 165000110564Not stockedBracket×2
- NUT-LOCK M8 HEX - 5000010367×16
- 185000110711Not stockedHinge×2
- 195000011153Not stockedCarriage bolt×16
- LATCH-PANEL,1/4 TURN - 5000110052×4
- SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×4
- 225000110561Not stockedPlate×1
- 235000089236Not stockedBracket×1
- 245000011153Not stockedCarriage bolt×2
- NUT-LOCK M8 HEX - 5000010367×2
