RD45-140 Tandem Roller

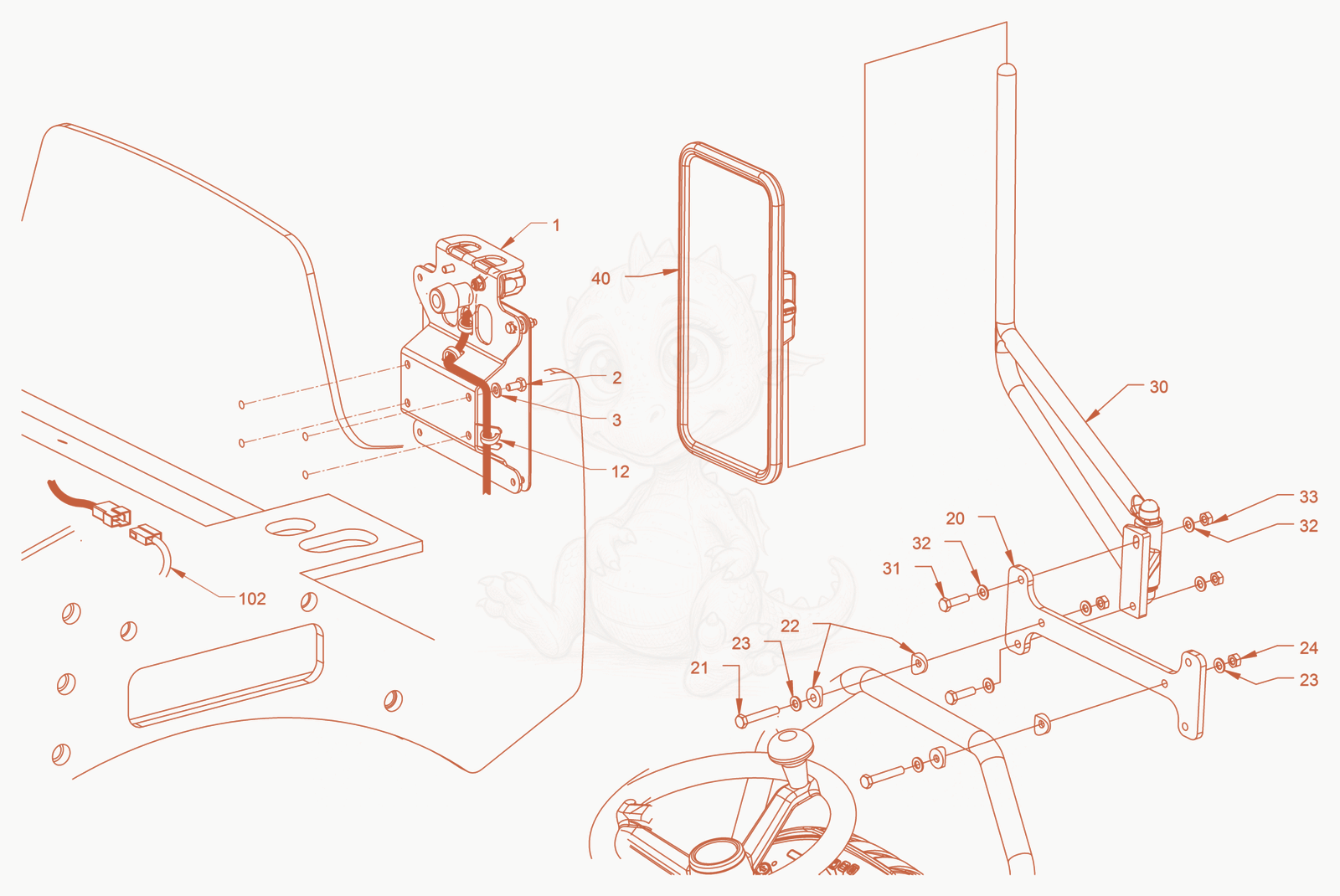

RD45-140 TÜV italy Diagram
- Bracket - 5100012143×1
- 25100012572Not stockedHexagon screw×4
- Locking washer - 5100012965×4
- Wire fastener - 5100013573×5
- 205100012897Not stockedMetal plate×1
- hexagon screw - 5100034803×2
- 225100012895Not stockedSpacer block×4
- Washer - 5100013094×4
- Safety nut - 5100011476×2
- Stay bar - 5100011539×1
- Hexagon screw - 5100013510×2
- Locking washer - 5100012966×4
- Hexagon nut - 5100012546×2
- Mirror - 5100011541×1
- Wire harness (rear frame) - 5100012632×1
