RD40-130c.3

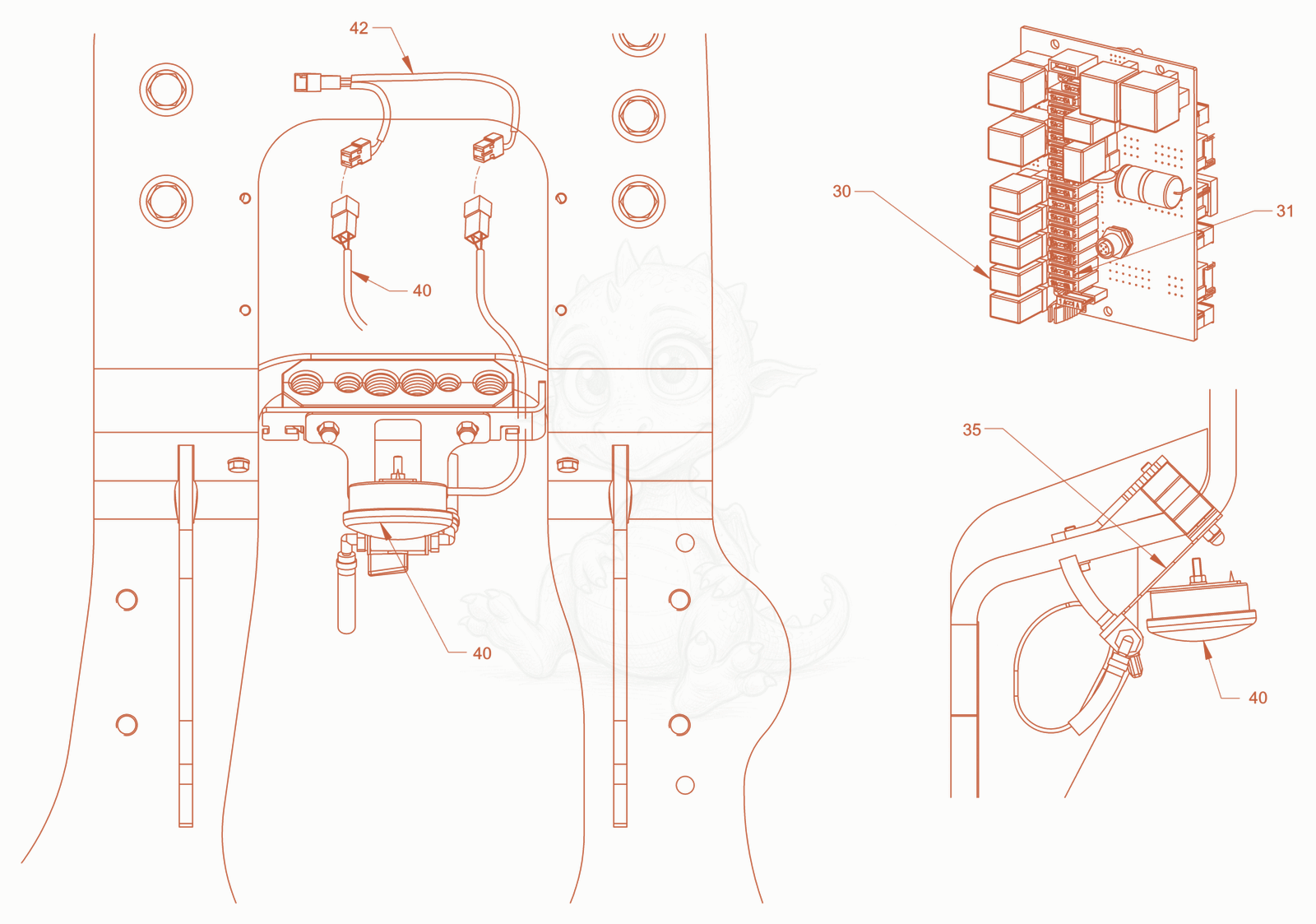

RD40-130C.3 Roller Drum Lighting Diagram

Exploded parts diagram of the Roller Drum Lighting of a Wacker Neuson RD40-130C.3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 305100011583Price
    Relay - 5100011583×1
  • 315100013580Price
    Blade fuse - 5100013580×1
  • 355100024922Price
    holder - 5100024922×4
  • 405100024898Not stocked
    working light×4
  • 425100024917Price
    cable harness - 5100024917Unknown×2
  • 425100057672Not stocked
    Cable harness×2
  • 425100057678Not stocked
    cable harness×2
  • 425100057679Not stocked
    cable harness×2
