RD40-130c.3

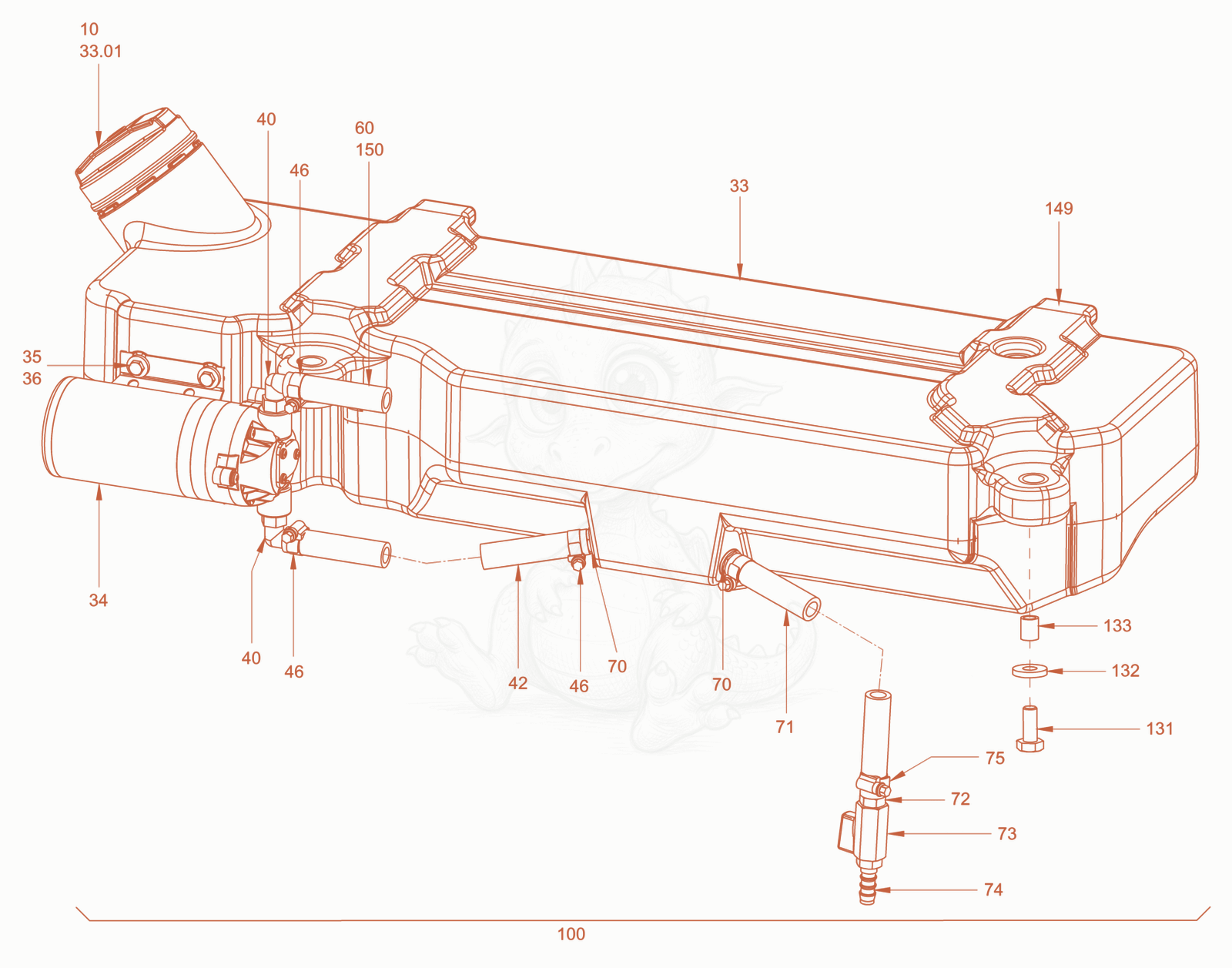

RD40-130C.3 additive sprinkling Diagram
- 105100066878Not stockedstrainer×1
- 335100059525Not stockedtank cap, with lock×1
- 335100059531Not stockedadditive tank×1
- Water pump - 5100013374×1
- Hexagon screw - 5100012571×4
- Washer - 5100011636×4
- 405100013437Not stockedAngle screwed socket×2
- Flexible tubing - 5100013223×0.23
- Hose clip - 5100013367×4
- Flexible tubing - 5100013223×0.7
- 705100033219Not stockedstraight screwed socket×2
- Flexible tubing - 5100013223×0.55
- 725100033219Not stockedstraight screwed socket×1
- 735100011472Not stockedBall-closure cock×1
- 745100029535Not stockedstraight screwed socket×1
- Hose clip - 5100013367×2
- 1005100059545Not stockedadditive tank×1
- 1315100035553Not stockedhexagon screw×2
- Washer - 5100013128×2
- Spacer block - 5100011717×2
- Rubber profile - 5100013644×0.2
- Hose clip - 5100013367×1
