RD16-90 Vibratory Roller

RD16-90 Water System cpl. Diagram

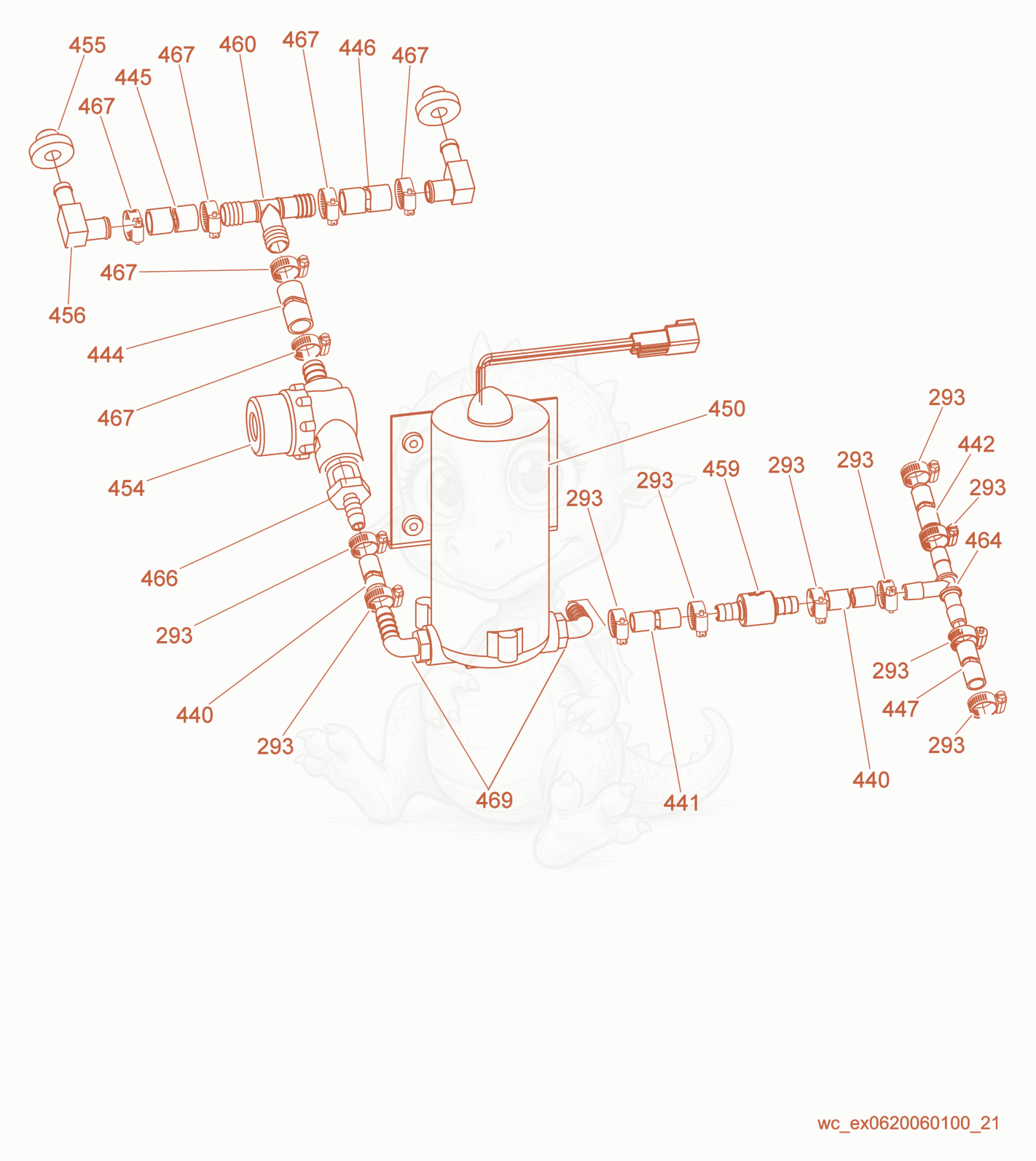

Exploded parts diagram of the Water System cpl. of a Wacker Neuson RD16-90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 2935000028707Price
    CLAMP-THREADED,.21-.63 - 5000028707×10
  • 4405000170185Price
    HOSE 3/8 ,50MM - 5000170185×2
  • 4415000170186Price
    HOSE 3/8 ,475MM - 5000170186×1
  • 4425000170187Price
    HOSE 3/8,820MM - 5000170187×1
  • 4445000170189Price
    HOSE 1/2 ,65MM - 5000170189×1
  • 4455000170190Price
    HOSE 1/2 ,110MM - 5000170190×1
  • 4465000170191Price
    HOSE 1/2 ,810MM - 5000170191×1
  • 4475000170947Price
    HOSE-3/8,1610MM - 5000170947×1
  • 4505000164155Price
    PUMP-WATER,ASSY. - 5000164155×1
  • 4545000078499Price
    FILTER-WATER,SUREFLO - 5000078499×1
  • 4555000053577Not stocked
    Tank valve bushing×2
  • 4565000078500Price
    FITTING-ELBOW,BARBED,HOSE - 5000078500×2
  • 4595200011143Price
    VALVE-CHECK,INLINE - 5200011143×1
  • 4605000164157Price
    FITTING-TEE-NYLON-1/2 BARBS - 5000164157×1
  • 4645000155331Price
    FITTING-TEE - 5000155331×1
  • 4665000074102Price
    FITTING-ADAPTER,BARBED,HOSE - 5000074102×1
  • 4675000119940Price
    CLAMP-HOSE,#6,.31-.78 - 5000119940×6
  • 4695000164152Price
    FITTING-ELBOW #6 NPT-#6 BARB - 5000164152×2
