RD15 ROLLER,DOUBLE DRUM

RD15 Steering System Central Articulation Diagram

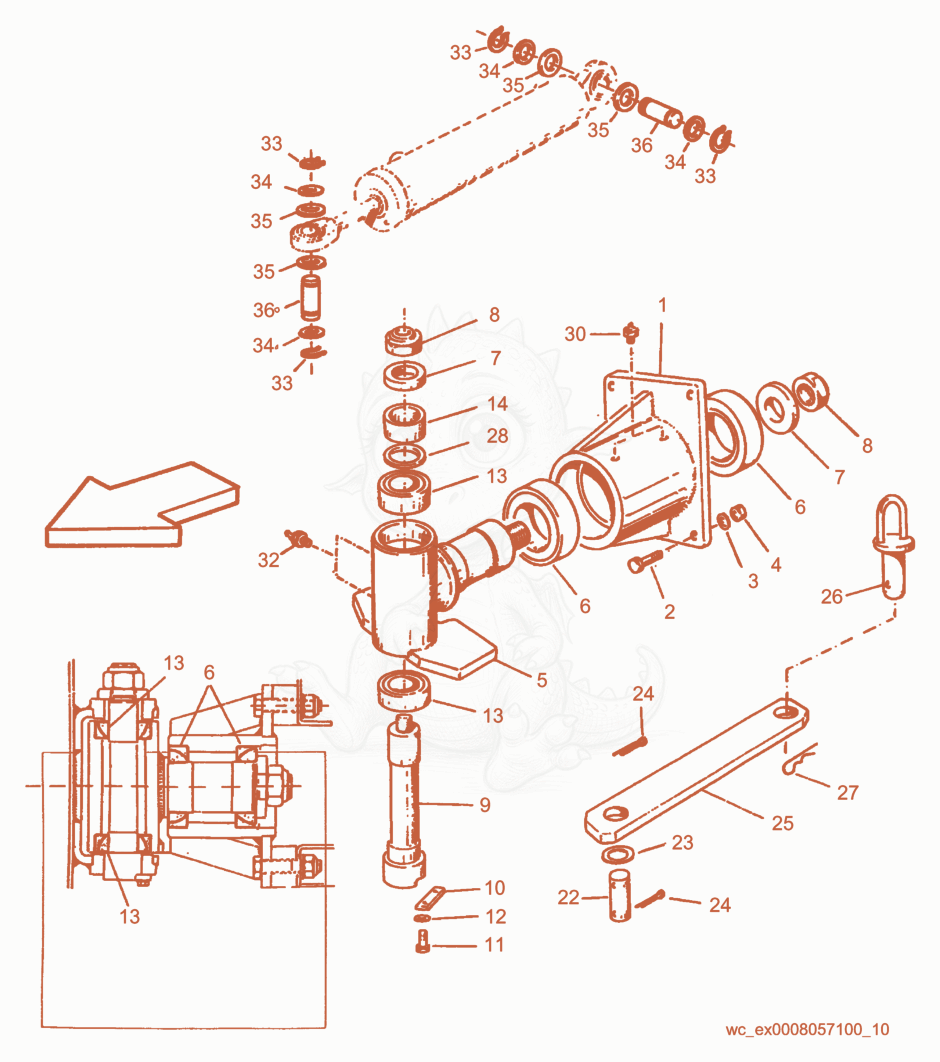

Exploded parts diagram of the Steering System Central Articulation of a Wacker Neuson RD15, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000112640Price
    Hub - 5000112640×1
  • 25000113454Price
    BOLT - 5000113454×4
  • 35000112830Not stocked
    Washer×4
  • 45000112807Not stocked
    Lock nut×4
  • 55000112642Not stocked
    Hub×1
  • 65000113431Price
    BEARING-BALL - 5000113431×2
  • 75000113473Price
    Washer - 5000113473×2
  • 85000113472Price
    Nut - 5000113472×2
  • 95000113625Not stocked
    Pin×1
  • 105000113674Price
    CLAMP - 5000113674×1
  • 115000113464Price
    BOLT - 5000113464×1
  • 125000112818Price
    Washer - 5000112818×2
  • 135000112469Price
    BEARING - 5000112469×2
  • 145000112464Price
    Ring - 5000112464×1
  • 225000113630Price
    PIN - 5000113630×1
  • 235000113480Not stocked
    Washer×2
  • 245000113497Price
    PIN-SPLIT - 5000113497×2
  • 255000113637Price
    CONNECTING ROD - 5000113637×1
  • 265000113631Not stocked
    Pin×1
  • 275000112729Not stocked
    Pin×1
  • 285000113647Price
    SHIM - 5000113647×1
  • 305000112724Price
    FITTING-GREASE - 5000112724×2
  • 325000113438Price
    FITTING-GREASE - 5000113438×2
  • 335000113492Price
    RETAINING RING-EXT. - 5000113492×4
  • 345000113481Price
    Washer - 5000113481×4
  • 355000113642Not stocked
    Spacer×4
  • 365000113624Price
    PIN - 5000113624×2
