RD15 ROLLER,DOUBLE DRUM

RD15 Water Sprinkling System Diagram

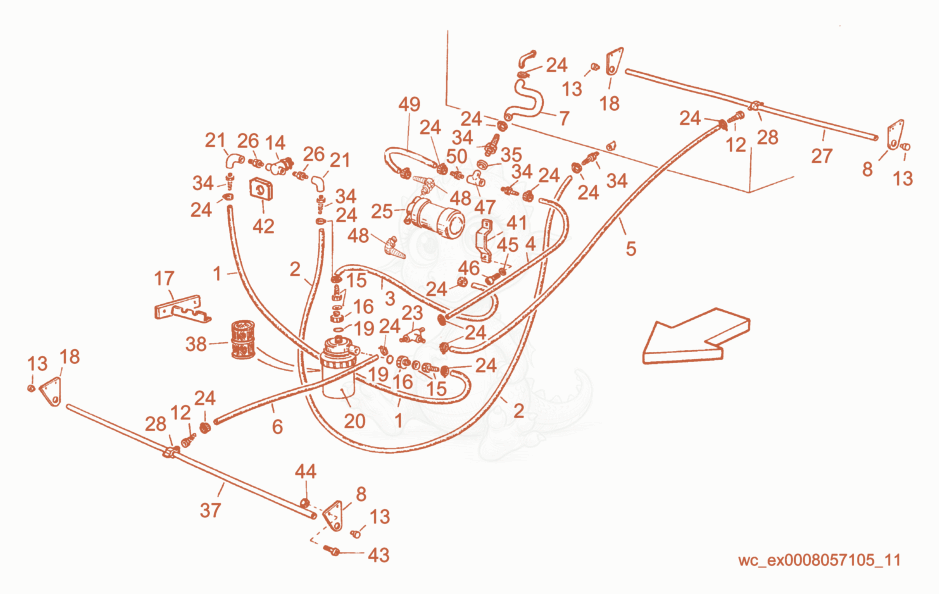

Exploded parts diagram of the Water Sprinkling System of a Wacker Neuson RD15, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

15000113737Not stocked
Hose×1
25000113737Not stocked
Hose×1
35000119761Not stocked
Hose×1
45000113737Not stocked
Hose×1
55000113737Not stocked
Hose×1
65000112975Not stocked
Hose×1
75000113737Not stocked
Hose×1
85000113650Price
BRACKET-LEFT - 5000113650×2
125000112572Price
FITTING-NIPPLE - 5000112572×3
135000112471Price
Plug - 5000112471×4
145000112587Not stocked
Valve×1
155000112492Price
FITTING-NIPPLE - 5000112492×2
165000112573Price
CONNECTOR - 5000112573×2
185000113651Price
BRACKET-RIGHT - 5000113651×2
195000119763Price
O-Ring - 5000119763×3
205000112585Not stocked
Water filter×1
215000112896Price
ELBOW-WATER - 5000112896×4
235000113536Price
CONNECTOR - 5000113536×1
245000112856Not stocked
Clamp×14
255000119759Not stocked
Pump×1
265000112571Not stocked
Nipple fitting×6
285000113592Price
FITTING-NOZZLE - 5000113592×2
345000112902Price
FITTING - 5000112902×5
355000113591Not stocked
Plate×1
365000113536Price
CONNECTOR - 5000113536×1
375000112575Price
Pipe - 5000112575×2
385000113590Price
ELEMENT-CARTRIDGE - 5000113590×1
395000112534Price
Diaphragm - 5000112534×1
405000112862Not stocked
Piston Kit×1
415000113033Price
Bracket - 5000113033×1
425000113048Price
Bracket - 5000113048×1
435000112767Not stocked
Bolt×8
445000112805Not stocked
Lock nut×8
455000112765Price
BOLT - 5000112765×2
465000112819Price
Washer - 5000112819×2
475000113315Price
CONNECTOR - 5000113315×1
485000119764Price
CONNECTOR-TUBING - 5000119764×2
495000119762Not stocked
Hose×1
505000119765Not stocked
Nipple fitting×1
