Compactor RC110 US Rops

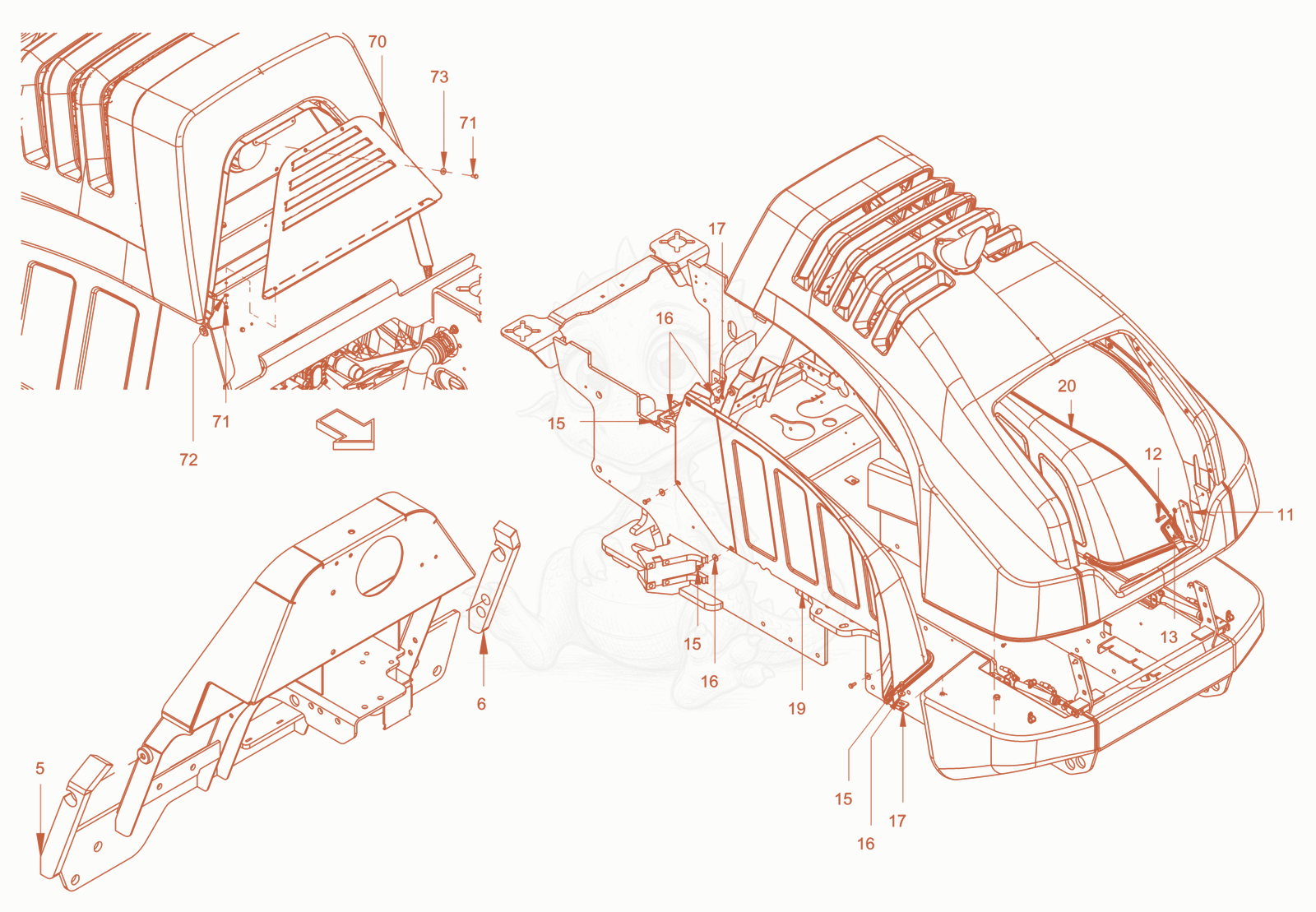

RC110USROPS canopies and covers Diagram
- 55100063941Not stockedinsulation plate×1
- 65100063967Not stockedinsulation plate×1
- metal plate - 5100034728×2
- Cheese-head screw - 5100012783×6
- Locking washer - 5100012967×6
- Hexagon screw - 5100011479×10
- Washer - 5100013509×12
- locking washer - 5100023625×4
- side covering - 5100034729×1
- 205100034730Not stockedside covering×1
- 705100034712Not stockedlid×1
- Hexagon screw - 5100012600×4
- Locking washer - 5100012965×2
- Washer - 5100013523×2
