Compactor RC110 US Rops

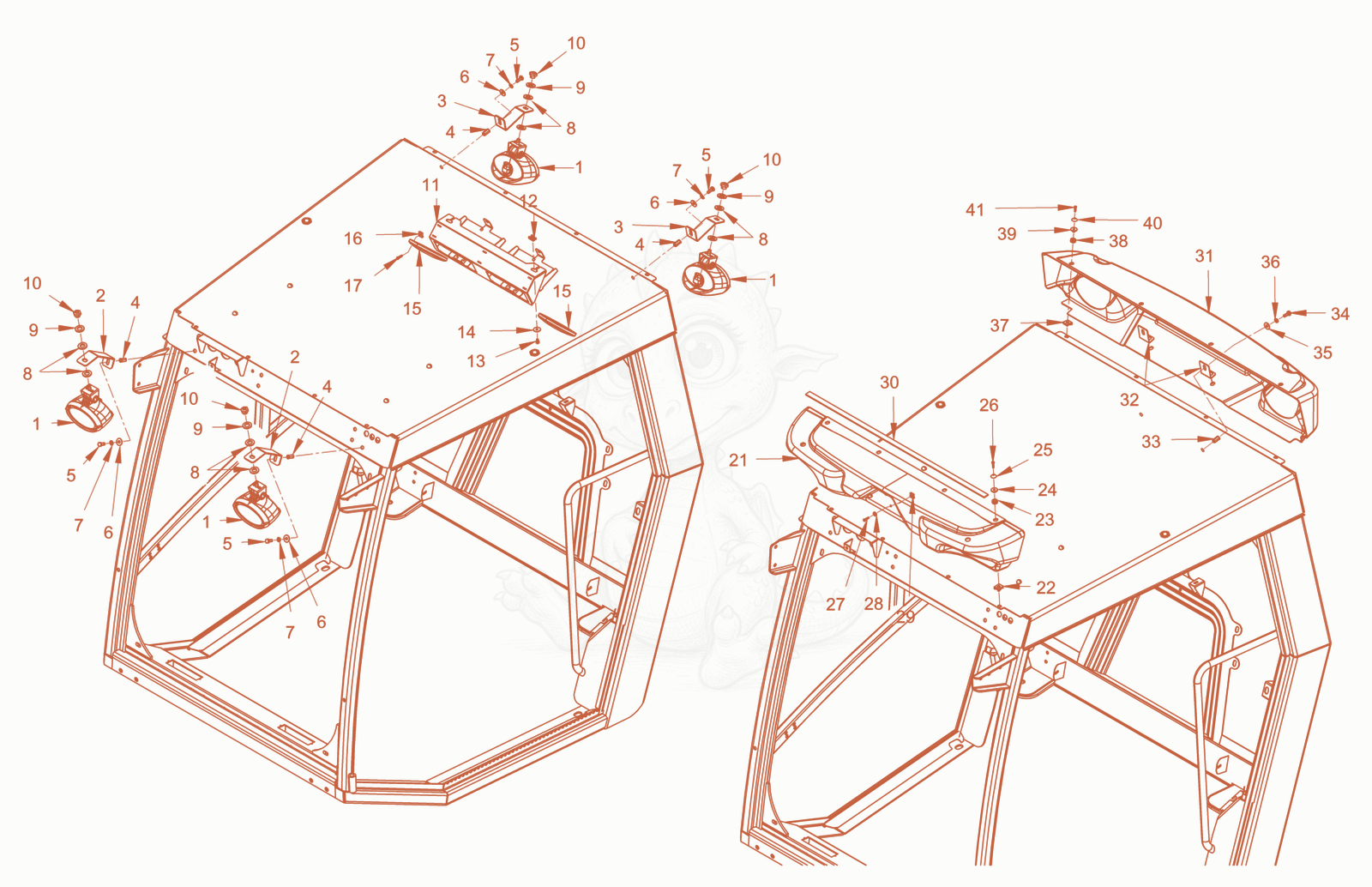

RC110USROPS driver's cabin Diagram
- working light - 5100035699×4
- 25100046714Not stockedholder×2
- 35100046715Not stockedholder×2
- 45100046654Not stockedrivet×4
- 55100046642Not stockedscrew×4
- 65100046655Not stockedwasher×4
- 75100046661Not stockedwasher×4
- washer - 5100035694×8
- 95100012941Not stockedWasher×4
- bushing - 5100035695×4
- 115100046836Not stockedhousing×1
- Clip nut - 5100011544×2
- Cheese-head screw - 5100011443×2
- 145100046835Not stockedwasher×2
- 155100046713Not stockedlid×2
- 165100046641Not stockedclip nut×8
- 175100046623Not stockedsheet metal screw×8
- 215100046709Not stockedcovering part×1
- Clip nut - 5100011544×4
- 235100046584Not stockedcable support sleeve×4
- 245100046656Not stockedbushing×4
- Washer - 5100011543×4
- 265100046881Not stockedraised countersunk head screw×4
- cheese-head screw - 5100022928×1
- 285100046710Not stockedwasher×1
- 295100046711Not stockedclip nut×1
- 305100046843Not stockedsealing×1
- covering part - 5100046844×1
- holder - 5100046712×2
- 335100046654Not stockedrivet×2
- 345100046642Not stockedscrew×4
- 355100046655Not stockedwasher×4
- 365100046661Not stockedwasher×4
- Clip nut - 5100011544×6
- 385100046584Not stockedcable support sleeve×6
- 395100046656Not stockedbushing×6
- Washer - 5100011543×6
- 415100046881Not stockedraised countersunk head screw×6
