RC110 CAB

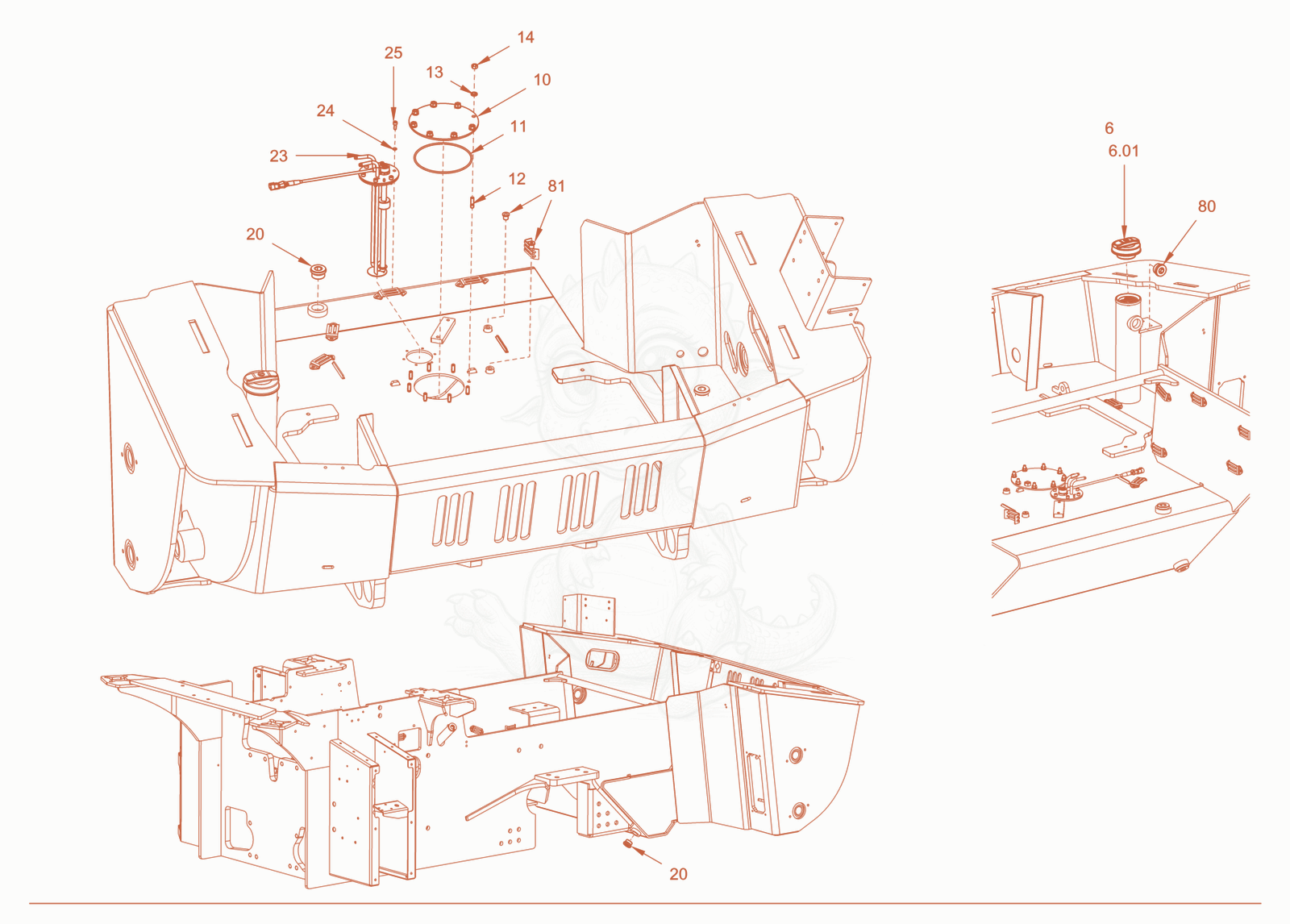

RC110CAB fuel system Diagram

Exploded parts diagram of the fuel system of a Wacker Neuson RC110CAB, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 65100013557Price
    Key - 5100013557×1
  • 65100063877Price
    tank cap, with lock - 5100063877×1
  • 105100023264Not stocked
    lid×1
  • 115100023263Price
    o-ring seal - 5100023263×1
  • 125100011471Price
    Stud bolt - 5100011471×8
  • 135100012966Price
    Locking washer - 5100012966×8
  • 145100012546Price
    Hexagon nut - 5100012546×8
  • 205100023170Price
    locking screw - 5100023170×3
  • 235100074455Not stocked
    fuel gauge×1
  • 245100013502Price
    Sealing ring - 5100013502×6
  • 255100011443Price
    Cheese-head screw - 5100011443×6
  • 805100023170Price
    locking screw - 5100023170×1
  • 815100023122Price
    locking screw - 5100023122×2
