RC110 CAB

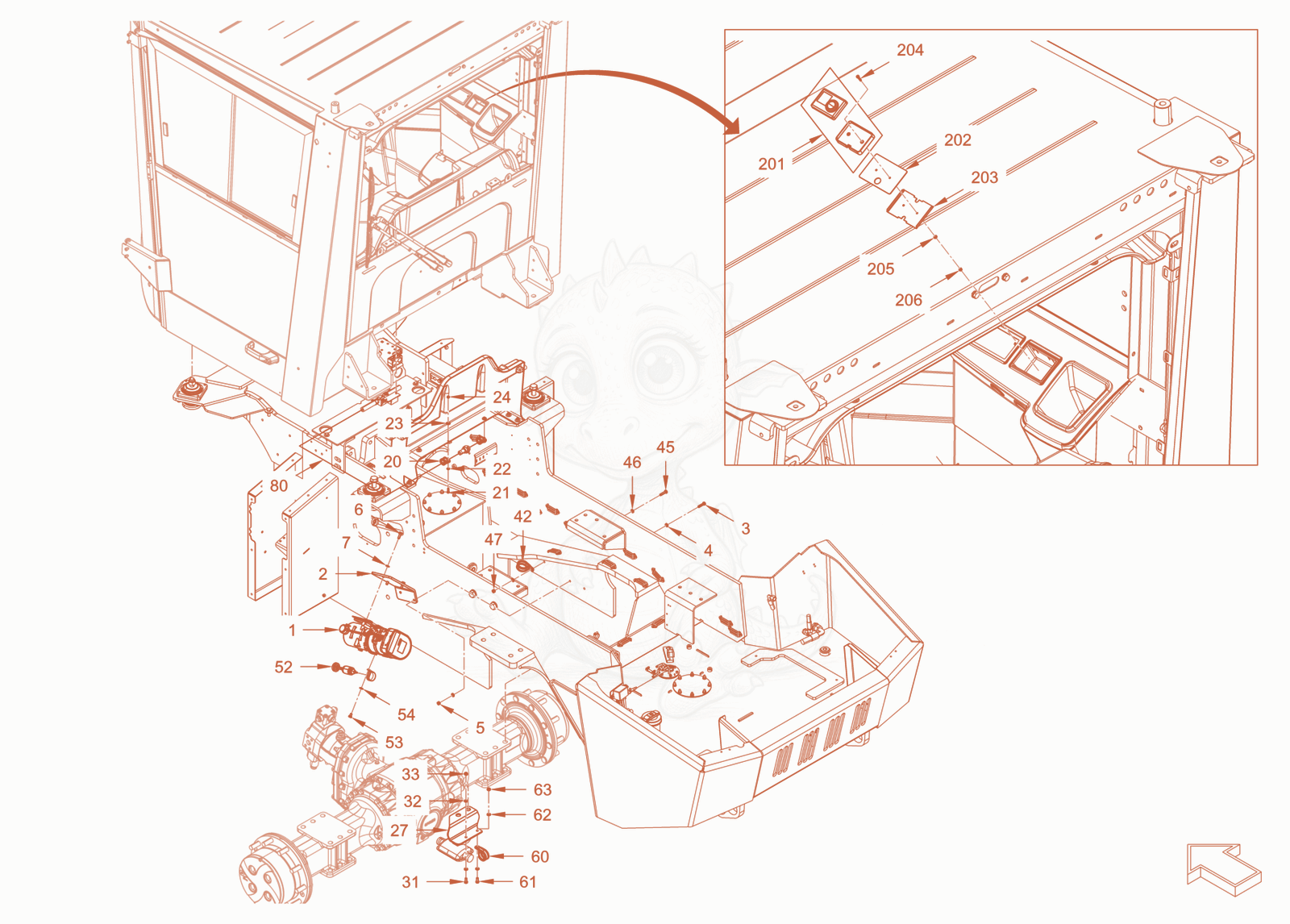

RC110CAB park heating Diagram

Exploded parts diagram of the park heating of a Wacker Neuson RC110CAB, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100035712Price
    heating unit - 5100035712×1
  • 25100074370Not stocked
    holder×1
  • 35100035308Price
    hexagon screw - 5100035308×2
  • 45100012966Price
    Locking washer - 5100012966×4
  • 55100012546Price
    Hexagon nut - 5100012546×2
  • 65100012613Price
    Hexagon screw - 5100012613×3
  • 75100012966Price
    Locking washer - 5100012966×6
  • 205100011469Price
    Pipe clip - 5100011469×2
  • 215100012608Price
    Hexagon screw - 5100012608×2
  • 225100012965Price
    Locking washer - 5100012965×2
  • 235100013523Price
    Washer - 5100013523×2
  • 245100017998Price
    hexagonal nut - 5100017998×2
  • 275100074372Not stocked
    holder×1
  • 315100012517Price
    Hexagon screw - 5100012517×1
  • 325100012966Price
    Locking washer - 5100012966×2
  • 335100012546Price
    Hexagon nut - 5100012546×1
  • 425100011532Price
    Pipe clip - 5100011532×1
  • 455100035308Price
    hexagon screw - 5100035308×1
  • 465100012966Price
    Locking washer - 5100012966×2
  • 475100012546Price
    Hexagon nut - 5100012546×1
  • 525100035729Price
    fuel dosing pump - 5100035729×1
  • 535100035056Price
    hexagon screw - 5100035056×1
  • 545100012966Price
    Locking washer - 5100012966×1
  • 605100011532Price
    Pipe clip - 5100011532×1
  • 615100012517Price
    Hexagon screw - 5100012517×1
  • 625100012966Price
    Locking washer - 5100012966×2
  • 635100012546Price
    Hexagon nut - 5100012546×1
  • 805100012040Price
    Cooling-water hose - 5100012040×0.7
  • 2015100035737Not stocked
    timer×1
  • 2025100074373Not stocked
    holder×1
  • 2035100074374Not stocked
    holder×1
  • 2045100074806Not stocked
    fillister head screw×2
  • 2055100022899Price
    washer - 5100022899×2
  • 2065100023112Price
    hexagonal nut - 5100023112×2
