MPU29A

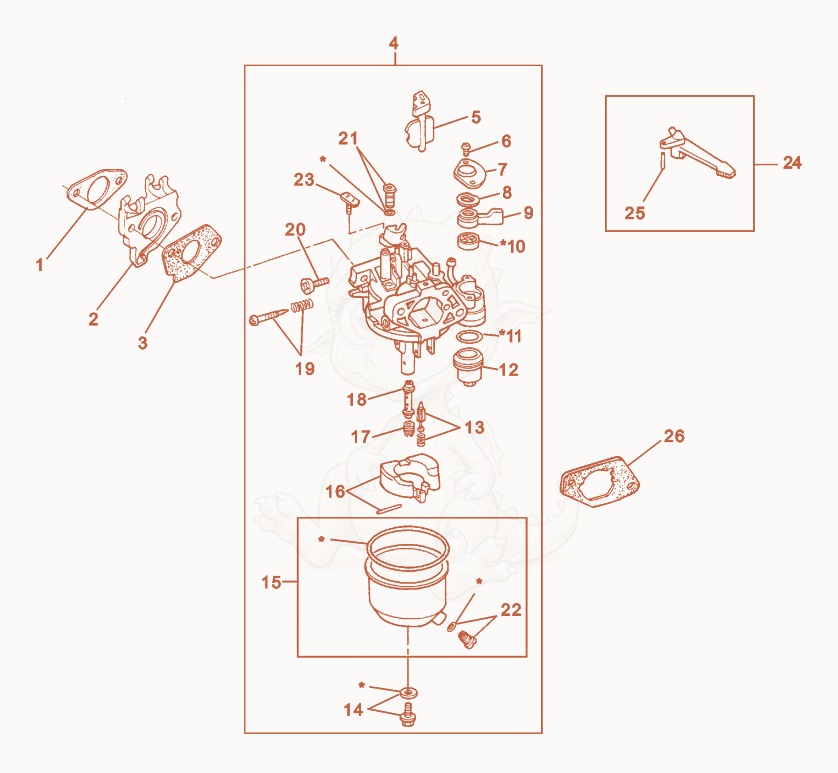

MPU29A Carburetor cpl. Diagram
- INSULATOR-CARBURETOR - 5000081630×1
- 25000074765Not stockedInsulator×1
- GASKET-CARBURETOR - 5000081629×1
- Carburetor - 5000089294×1
- SET-CHOKE VALVE,2 PER - 5000074756×1
- 65000081614Not stockedScrew×2
- PLATE-FUEL VALVE SETTINGS - 5000073269×1
- SPRING-FUEL LEVER - 5000073270×1
- LEVER-FUEL VALVE - 5000073271×1
- GASKET-FUEL VALVE LEVER - 5000073272×1
- GASKET-FUEL STRAINER CUP - 5000071024×1
- FILTER-FUEL STRAINER CUP - 5000071023×1
- SET-FLOAT VALVE - 5000074759×1
- SCREW- W/WASHER,CARB.BOWL - 5000071021×1
- SET-CARBURETOR FLOAT - 5000150267×1
- SET-CARB.FLOAT - 5000074760×1
- JET-MAIN #82 - 5000110603Unknown×1
- 175000089295Not stockedMain jet×1
- 175000110604Not stockedMain jet×1
- NOZZLE-BODY,HOLDER - 5000089296×1
- SCREW-SET - 5000089286×1
- SCREW-THROTTLE STOP - 5000071018×1
- SET-JET, PILOT #40 - 5000084654×1
- SCREW-W/WASHER,CARB.DRAIN - 5000073273×1
- SET-COLLAR - 5000089281×1
- LEVER-CHOKE CONTROL - 5000071013×1
- PIN 2 X 12MM,SPRING TYPE - 5000071014×1
- SPACER-CARBURETOR MOUNT - 5000074761×1
