GV5600-Value Gen EPA

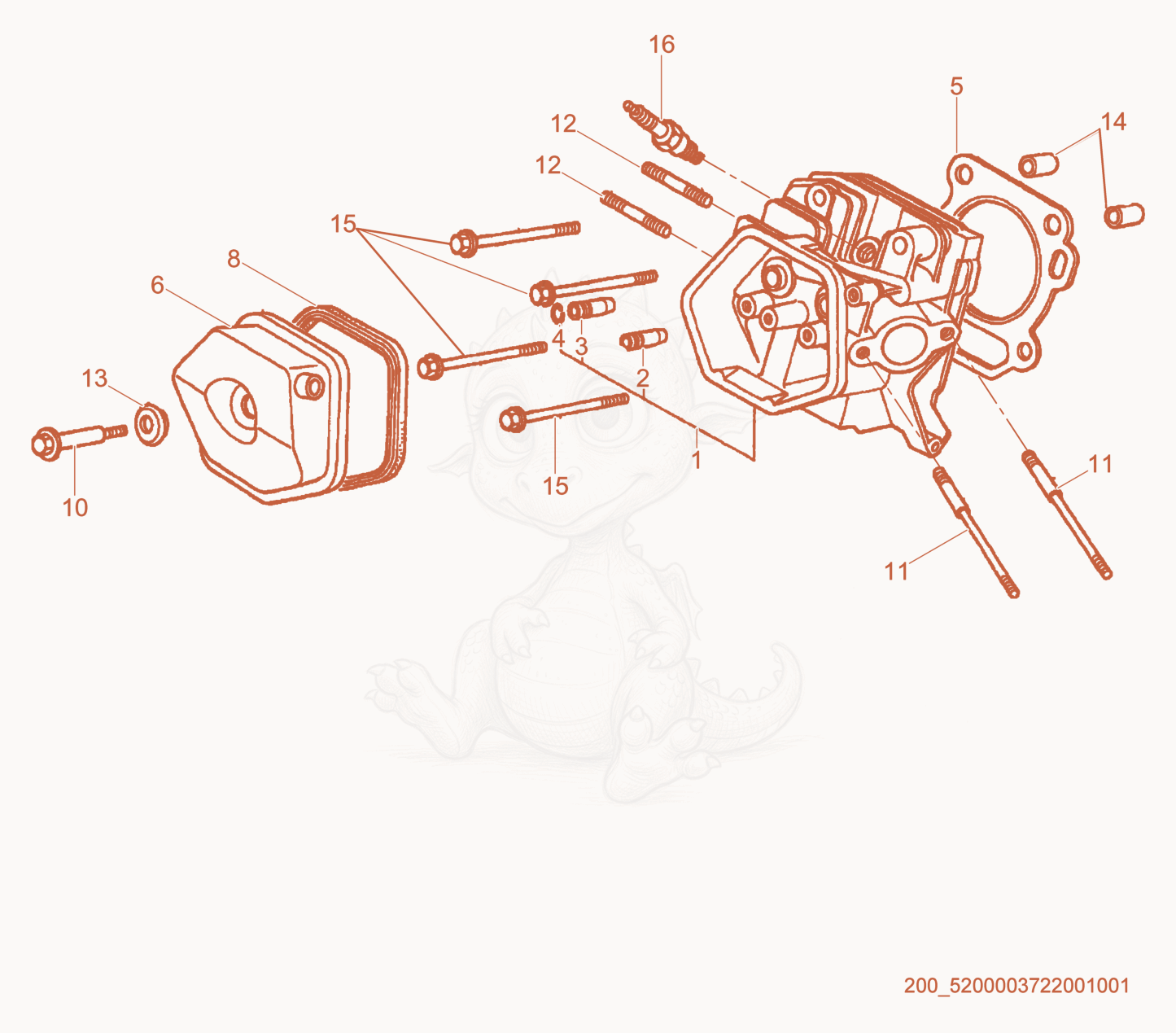

GV5600 Cylinder Head Diagram

Exploded parts diagram of the Cylinder Head of a Wacker Neuson GV5600, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15200000464Not stocked
    Cylinder head×1
  • 25000110602Price
    GUIDE-VALVE,INTAKE - 5000110602×1
  • 35000074648Price
    GUIDE-EXHAUST VALVE - 5000074648×1
  • 45000081744Price
    CLIP-VALVE GUIDE - 5000081744×1
  • 55200000465Price
    Gasket-cylinder head - 5200000465×1
  • 65200000466Price
    cylinder head hood - 5200000466×1
  • 85000074645Price
    GASKET-CYLINDER HEAD COVER - 5000074645×1
  • 105000074655Price
    BOLT-CYL.HEAD COVER RETAINER - 5000074655×1
  • 115000158536Price
    BOLT-STUD 8 X 106 - 5000158536×2
  • 125000213388Price
    BOLT-STUD - 5000213388×2
  • 135000074657Price
    WASHER - 5000074657×1
  • 145000074652Price
    PIN 12 X 20,DOWEL - 5000074652×2
  • 155000074647Price
    SCREW M10 X 80,HEX.FLANGED - 5000074647×4
  • 165000158498Price
    SPARK PLUG (BPR5ES)(NGK) - 5000158498×1
  • 165000162697Price
    spark plug - 5000162697×1
