GV5600-Value Gen EPA

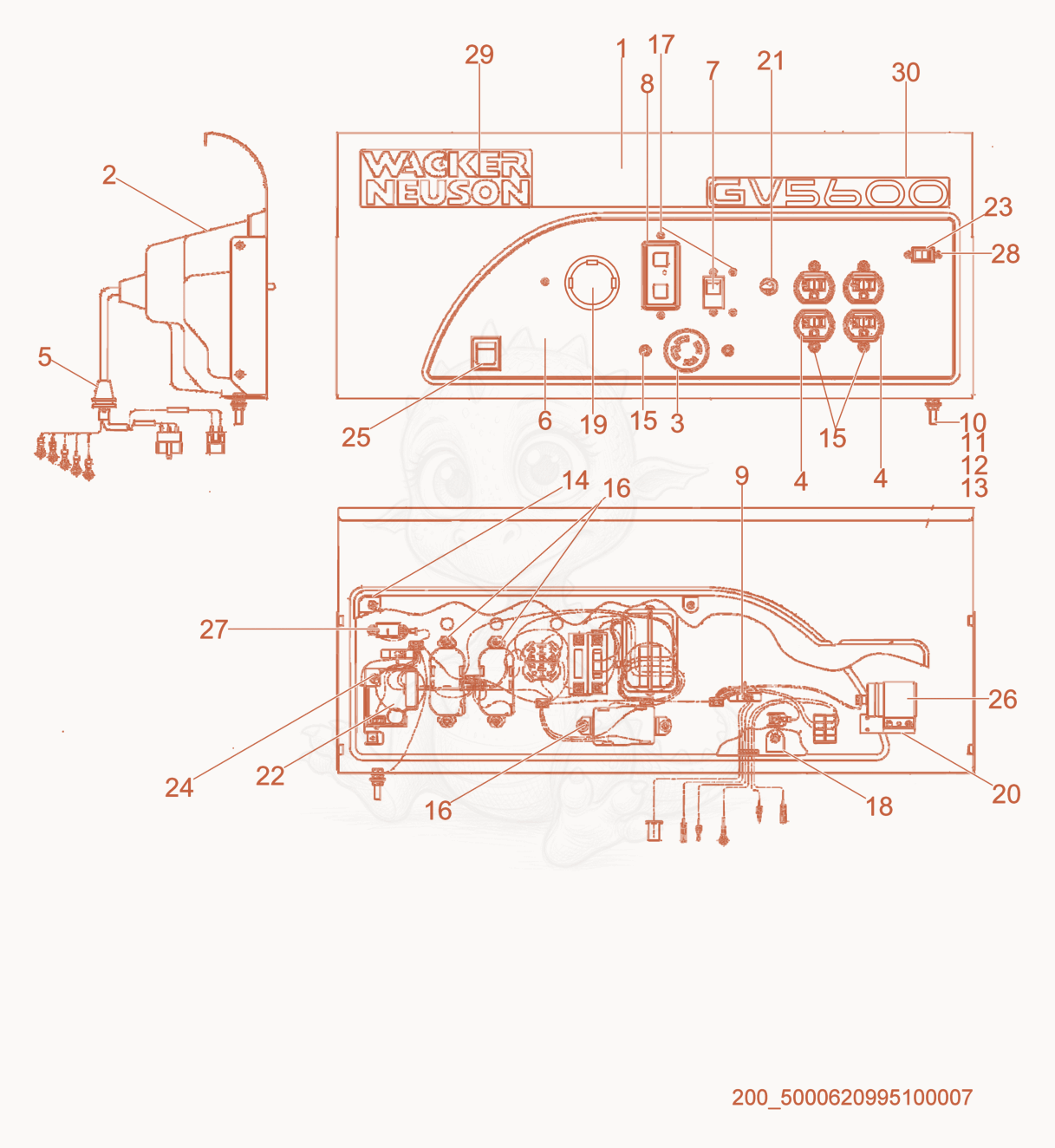

GV5600 Control Box cpl. Diagram
- 15200014114Not stockedPanel×1
- Cover - 5000170919×1
- RECEPTACLE, 125/250V-30A - 5200003522×1
- KIT-GFI RECEPTACLE ,125V-20A - 5200003516×2
- WIRING HARNESS - 5200003523×1
- 65200003524Not stockedPlate×1
- BREAKER-CIRCUIT,23A W/SWITCH - 5000164429×1
- MODULE-GFCI - 5000163895×1
- Clip - 5000170908×2
- BOLT M6 X 28 - 5000170909×1
- NUT M6 - 5000170910×2
- WASHER-SPRING M6 - 5000170911×2
- WASHER M6 - 5000170912×1
- SCREW M4 X 10 - 5000170913×4
- SCREW M4 X 10,BLACK - 5000170914×8
- Nut - 5000170915×8
- SCREW M3 X 6 - 5000170936×6
- SCREW M4 X 6 - 5000170916×1
- RECEPTACLE 30A, 125V - 5200003525×1
- 205000170938Not stockedHexagonal head cap screw×2
- SWITCH-VOLTAGE SELECTOR - 5000171729×1
- MODULE-AUTO IDLE - 5000170940×1
- Switch assembly - 5000171703×1
- SCREW M5 X 12 - 5000171704×1
- SWITCH-ENGINE,ON-OFF - 5200003521×1
- 265000171705Not stockedCapacitor×1
- WASHER 3.2 - 5000175192×2
- SCREW M3 X 10 - 5000175193×2
- LABEL-LOGO 56MM,RAL 7043 - 5000222102×1
- 305000177675Not stockedLabel-GV 5600×1
