GS12Ai

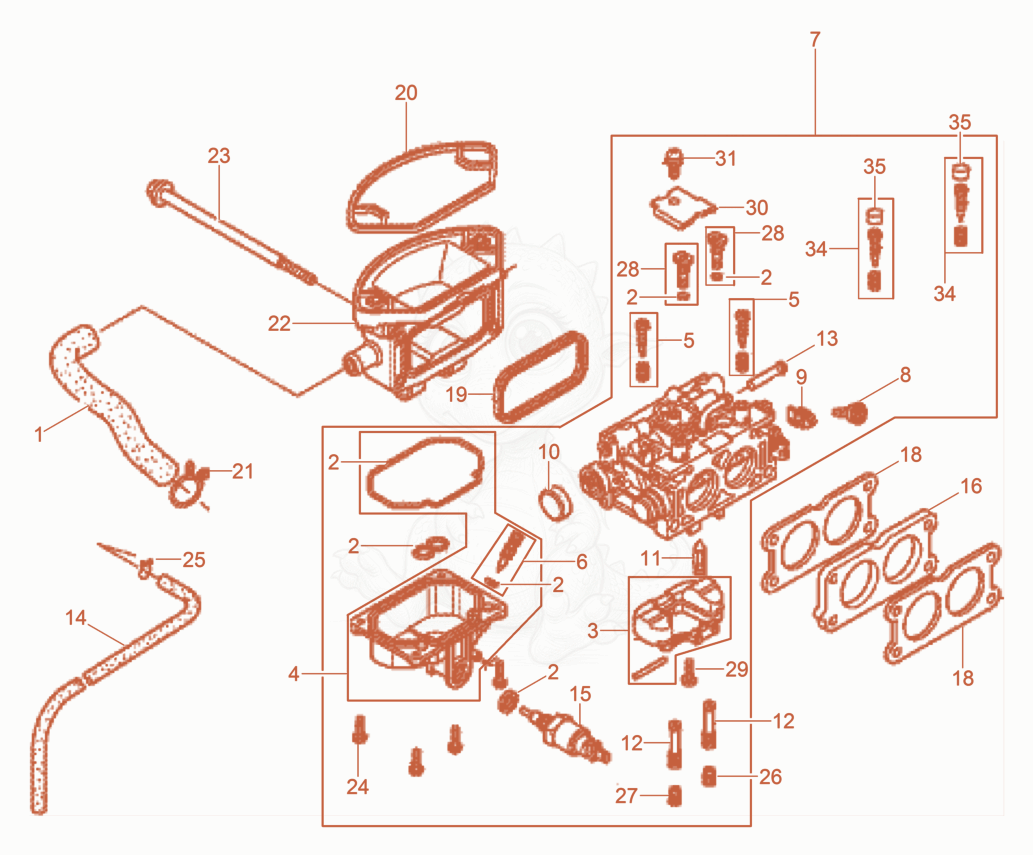

GS12AI Carburetor Diagram
- TUBE-BREATHER - 5000226447×1
- Gasket Set - 5000226448×1
- KIT-FLOAT - 5000226449×1
- FLOAT CHAMBER SET - 5000226450×1
- SCREW SET - 5000226451×2
- SCREW SET-DRAIN - 5000151786×1
- 75100003397Not stockedCarburetor cpl.×1
- 75100003398Not stockedCarburetor cpl.×1
- SCREW-THROTTLE STOP - 5000071018×1
- ARM-THROTTLE LINKAGE - 5000226455×1
- CAP-CHOKE LEVER DUST - 5000151790×1
- VALVE-FLOAT - 5000226456×1
- JET-NOZZLE,MAIN - 5000226457Unknown×2
- 125100003406Not stockedMain jet×2
- SCREEN-STRAINER,FUEL - 5000226458×1
- TUBE-DRAIN - 5000226459×1
- SOLENOID VALVE - 5000226460×1
- INSULATOR - 5000226461×1
- GASKET-CARBURETOR - 5000226462×2
- GASKET-AIR CLEANER - 5000226483×1
- Seal - 5000226484×1
- Clip - 5000226489×1
- Elbow - 5000226490×1
- BOLT-FLANGE 6X106 - 5000226528×4
- 245000227790Not stockedPan head screw×4
- CLAMP B8,HOSE CLIP - 5000054136×1
- JET-MAIN,SIZE 90 - 5000125841×1
- JET-MAIN #95 - 5000162702×1
- JET-MAIN #98 - 5000162705×1
- JET-MAIN #102 - 5000162706×1
- Main jet - 5100003514×1
- JET-MAIN #92 - 5000089290×1
- JET-MAIN #98 - 5000162705×1
- JET-MAIN #102 - 5000162706×1
- 275100000456Not stockedMain jet×1
- Main jet - 5100003514×1
- SET-JET, PILOT #40 - 5000084654×2
- Screw - 5000226452×1
- Plate - 5000226454×1
- 315000227792Not stockedScrew×1
- 345100003392Not stockedScrew w/washer×2
- 355100003404Not stockedCap×2
