GS12Ai

GS12AI Ignition Coil Diagram

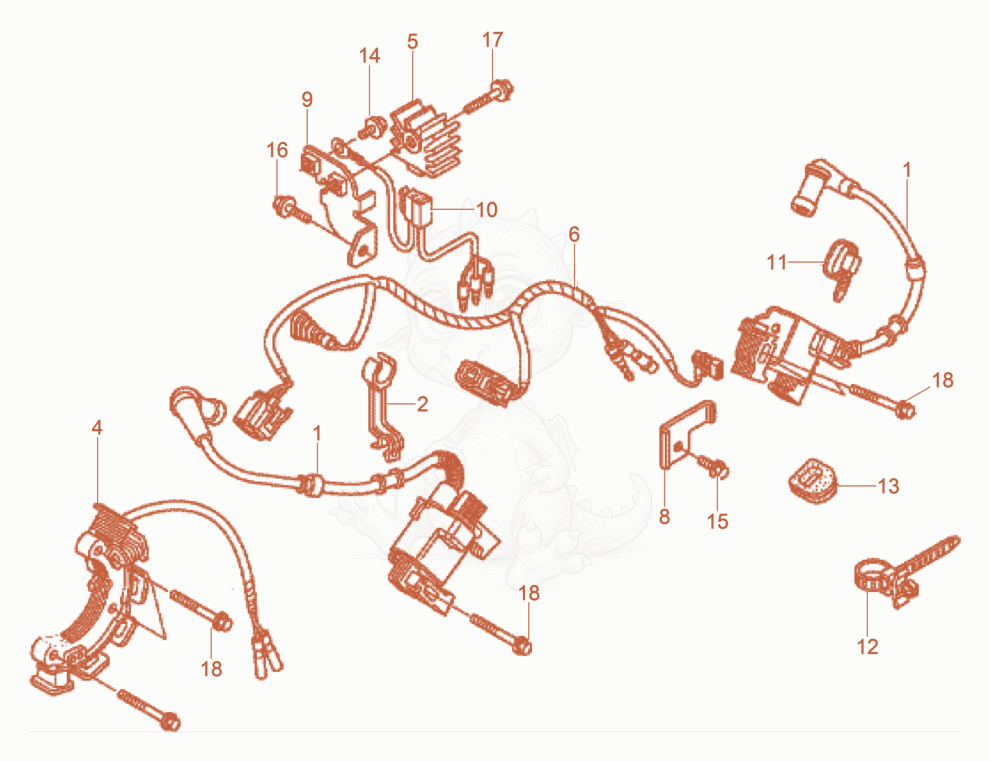

Exploded parts diagram of the Ignition Coil of a Wacker Neuson GS12AI, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000226500Price
    Ignition coil - 5000226500×2
  • 25000226501Price
    Clamp - 5000226501×1
  • 45000227778Not stocked
    Charging coil×1
  • 55000227779Not stocked
    Regulator×1
  • 65000227780Not stocked
    Wiring Harness×1
  • 85000226513Price
    Bracket - 5000226513×1
  • 95000227781Price
    BRACKET-REGULATOR RECTIFIER - 5000227781×1
  • 105000227782Not stocked
    Cable harness×1
  • 115000226537Price
    Cable tie - 5000226537×1
  • 125000226538Price
    Cable tie - 5000226538×1
  • 135000226551Price
    Grommet - 5000226551×1
  • 145000162077Not stocked
    Flange screw×1
  • 155100003498Not stocked
    Flange screw×1
  • 165000107158Not stocked
    Screw×1
  • 175000160729Price
    BOLT-FLANGE 6X30 - 5000160729×1
  • 185100003501Not stocked
    Flange screw×7
