GPi1700-GEN,INVERTER,NON-CARB

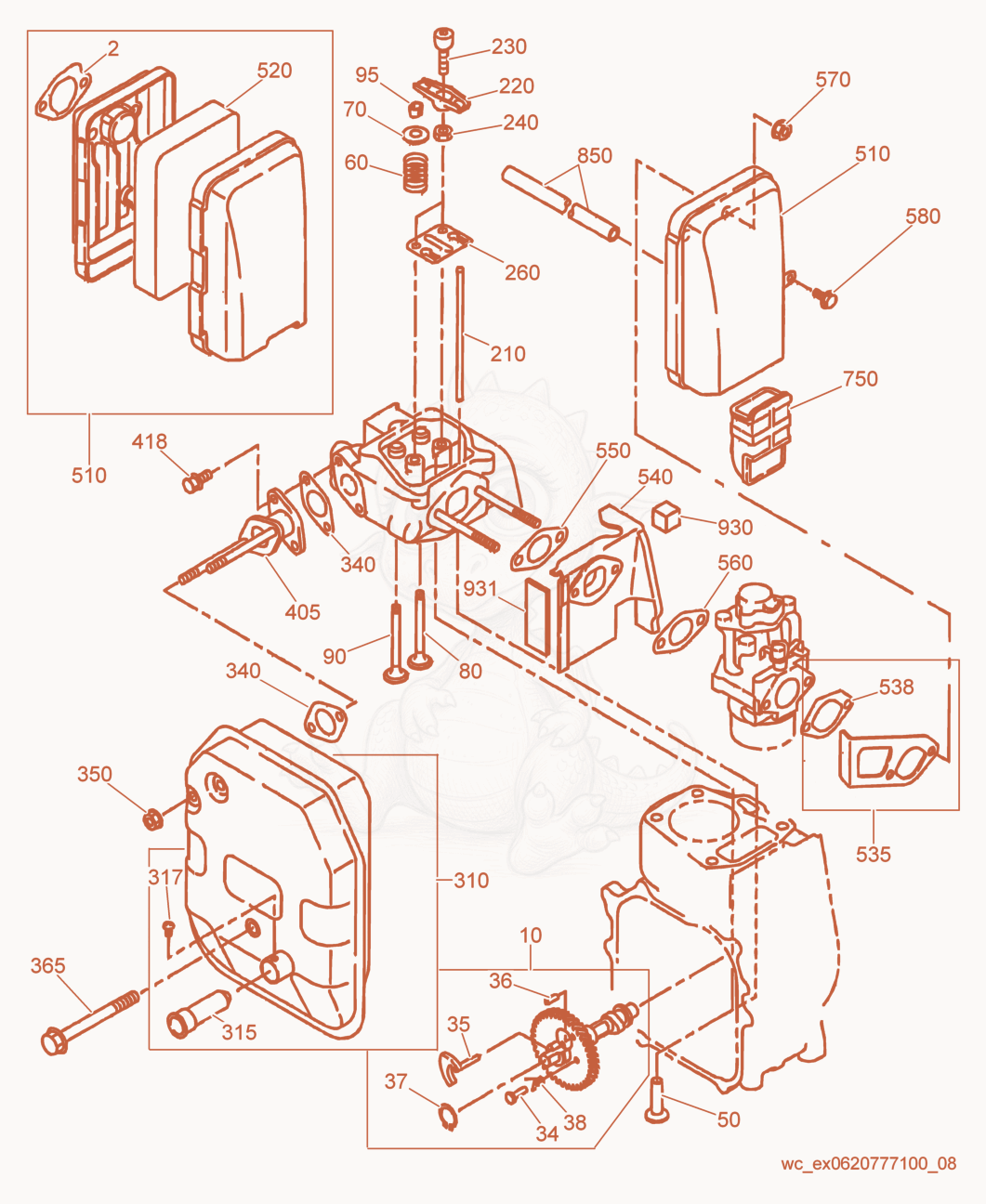

GPI1700 Muffler/Air Cleaner/Camshaft Diagram
- GASKET-AIR CLEANER - 5000151187×1
- camshaft - 5000159196×1
- 345000159197Not stockedPin×1
- lever - 5000159198×1
- 365000084336Not stockedPin×1
- 375000159199Not stockedRing×1
- SPRING - 5000159200×1
- tappet - 5000159201×2
- SPRING-VALVE - 5000159202×2
- VALVE RETAINER - 5000159203×2
- VALVE-INTAKE - 5000159204×1
- VALVE-EXHAUST - 5000159205×1
- HOLDER-VALVE - 5000156481×4
- ROD-PUSH - 5000159206×2
- 2205000226064Not stockedRocker arm×2
- BOLT-PIVOT - 5000117237×2
- nut - 5000117238×2
- plate - 5000159208×1
- MUFFLER CPL. - 5000226152×1
- 3155000226063Not stockedSpark arrester×1
- 3175000156494Not stockedScrew×1
- 3405000156093Not stockedExhaust gasket×2
- NUT,FLANGE - 5000226018×2
- 3655000226014Not stockedFlange bolt×1
- 4055000226158Not stockedExhaust pipe×1
- 4185000156558Not stockedBolt with Washer×2
- Air cleaner - 5000226154×1
- Element - 5000226155×1
- 5355000226157Not stockedBaffle×1
- 5385000226070Not stockedGasket×1
- 5405000226156Not stockedInsulator×1
- 5505000216738Not stockedGasket×1
- INSULTATOR,GASKET - 5000226058×1
- NUT M6,HEX,FLANGE - 5000053616×2
- 5805000226011Not stockedFlange bolt×1
- 7505000226153Not stockedDuct×1
- HOSE 8 X 11 X 75MM LG,RUBBER - 5000053608×1
- 9305000226217Not stockedPad×1
- 9315000226219Not stockedPad×1
