GPi1700-GEN,INVERTER,NON-CARB

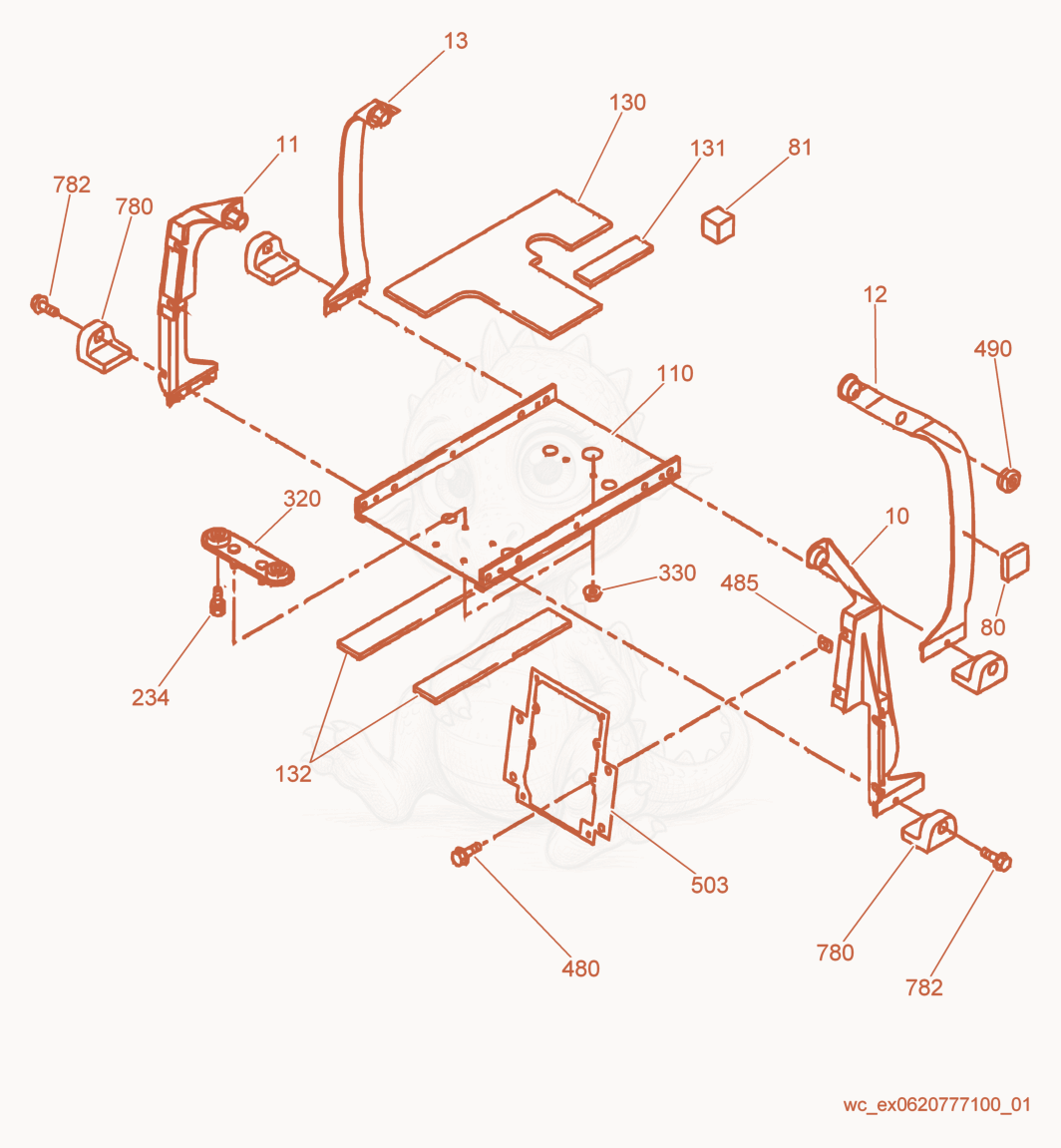

GPI1700 Frame cpl. Diagram
- FRAME-FRONT - 5000180460×1
- 115000180461Not stockedFront frame×1
- 125000180462Not stockedRear frame×1
- 135000180463Not stockedRear frame×1
- 805000181734Not stockedPad×1
- 815000181735Not stockedPad×2
- 1105000181932Not stockedBase×1
- 1305000181715Not stockedPad×1
- 1315000181716Not stockedPad×1
- 1325000181719Not stockedPad×2
- 2345000215840Not stockedBolt w/washer×4
- Mount cpl. - 5000180458×2
- NUT M6,HEX,FLANGE - 5000053616×4
- BOLT-FLANGE - 5000156597×4
- 4855000180465Not stockedNut×8
- 4905000180466Not stockedGrommet×2
- 5035000180464Not stockedBack panel×1
- Mount cpl. - 5000180459×4
- 7825000226011Not stockedFlange bolt×4
