G 7AI

G7AI Throttle cpl. Diagram

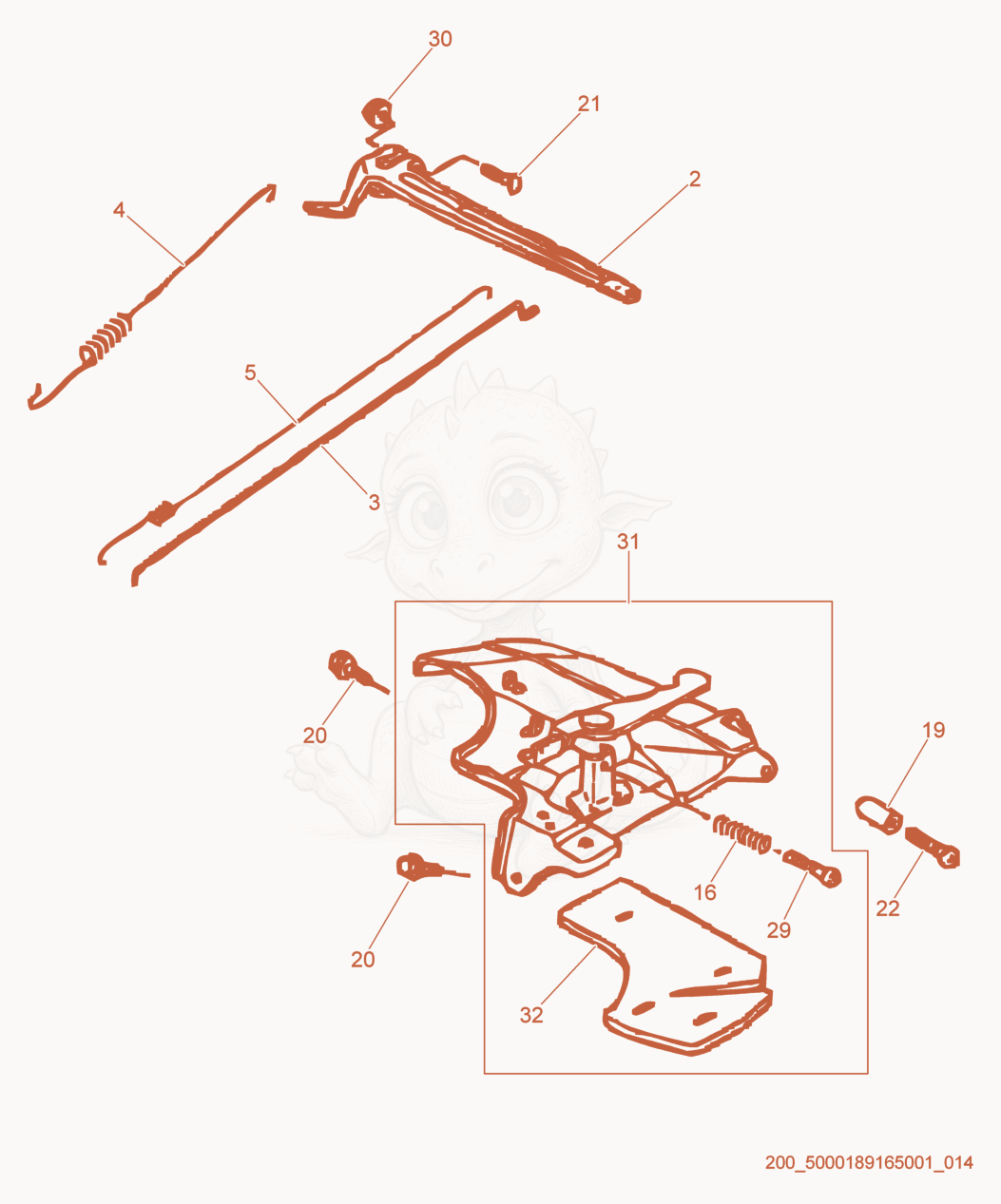

Exploded parts diagram of the Throttle cpl. of a Wacker Neuson G7AI, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25000075845Price
    LEVER-GOVERNOR CONTROL - 5000075845×1
  • 35000075844Price
    ROD-GOVERNOR CONTROL - 5000075844×1
  • 45000209990Price
    Spring - 5000209990×1
  • 55000075843Price
    SPRING-THROTTLE RETURN - 5000075843×1
  • 165000054088Price
    SPRING-ADJUSTING - 5000054088×1
  • 195000156684Price
    SPACER - 5000156684×1
  • 205000053990Price
    SCREW M6 X 12,HX.FLANGE HD. - 5000053990×2
  • 215200000457Price
    Bolt - 5200000457×1
  • 225000156685Price
    SCREW 5X25 - 5000156685×1
  • 295000116740Not stocked
    Screw×1
  • 305000071056Price
    NUT M6,HEX,FLANGE - 5000071056×1
  • 315200000456Price
    Control cpl. - 5200000456×1
  • 325200000458Price
    Bracket-control base - 5200000458×1
