G625 Generator, Standard T2

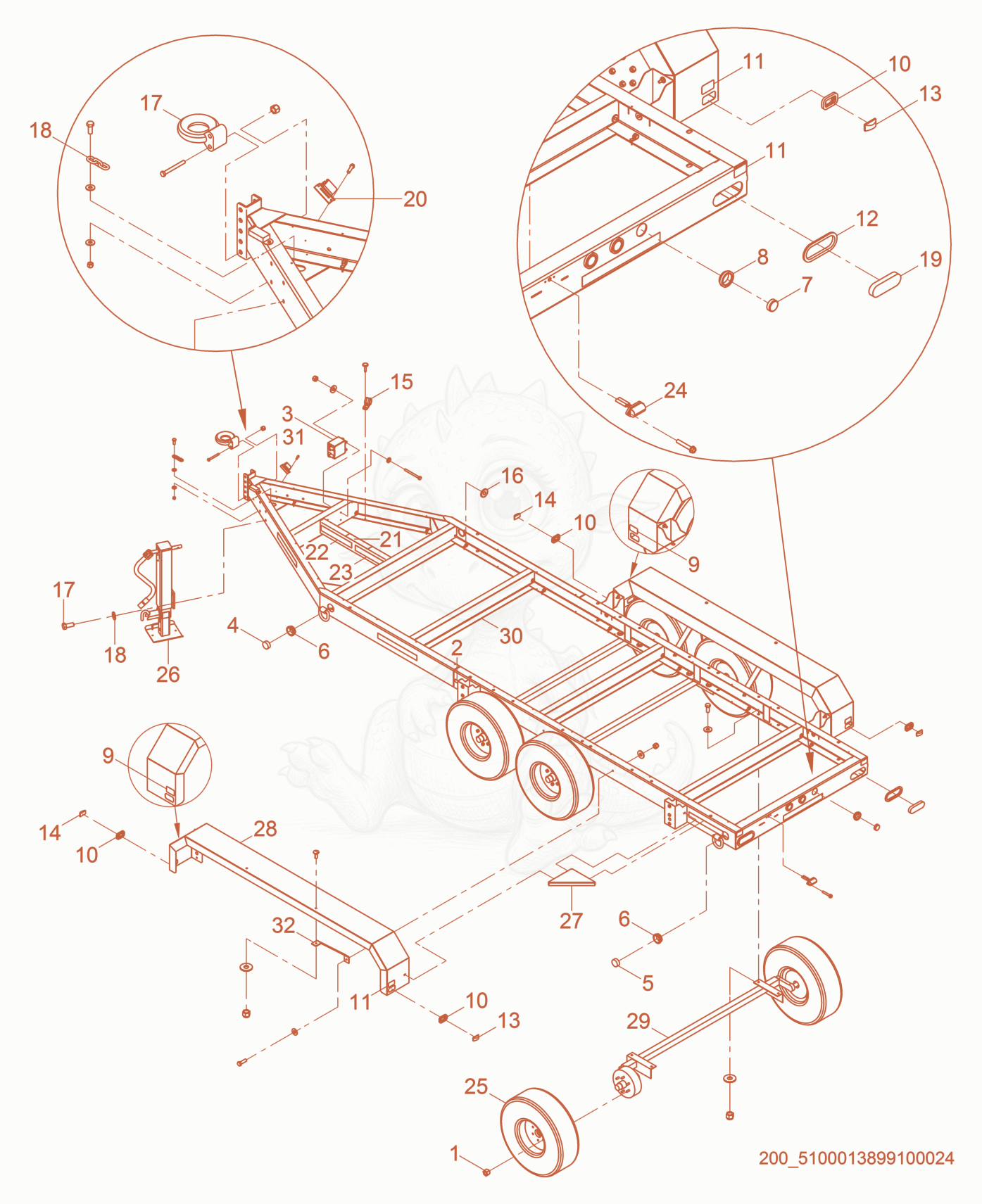

G625 Trailer cpl. Diagram
- 15100019320Not stockedNut×36
- 25100019321Not stockedLabel×1
- 35100019322Not stockedBreakaway Kit×1
- 45100019323Not stockedLight×2
- 55100019324Not stockedLight×2
- 65100019325Not stockedGrommet×4
- LIGHT, 2 ROUND RED CLEARANCE 3 - 5100019326×3
- GROMMET, 2 ROUND 3 - 5100019327×3
- 95100019328Not stockedReflector×2
- GROMMET, RECTANGLE CLEARANCE LIGHT 4 - 5100019329×4
- REFLECTOR, RED 4 - 5100019330×4
- GROMMET, OVAL TAIL 2 - 5100019331×2
- 135100019332Not stockedLight×2
- 145100019333Not stockedLight×2
- CLAMP, WIRE RETAINER #9 22 - 5100019334×22
- GROMMET, ROUND BLACK 20 - 5100019335×20
- 175100019336Not stockedPintle hitch×1
- 185100019337Not stockedSafety chain×2
- LED LIGHT, OVAL TAIL LIGHT 2 - 5100019338×2
- HOLDER, PLUG 1 - 5100019339×1
- DECAL, COMBO 1 - 5100019340×1
- 225100019341Not stockedLabel×1
- 235100019342Not stockedLabel×1
- 245100019343Not stockedLicense plate light×1
- 255100019344Not stockedWheel and tire cpl.×6
- JACK WELDMENT - 5100019345×1
- 275100019346Not stockedFender step×1
- FENDER, G625 2 - 5100019347×2
- 295100019348Not stockedAxle×3
- 305100019349Not stockedWeldment×1
- WIRE HARNESS, G625 EB - 5100019350×1
- BRACE, FENDER G625 4 - 5100019351×4
