G625 Generator, Standard T2

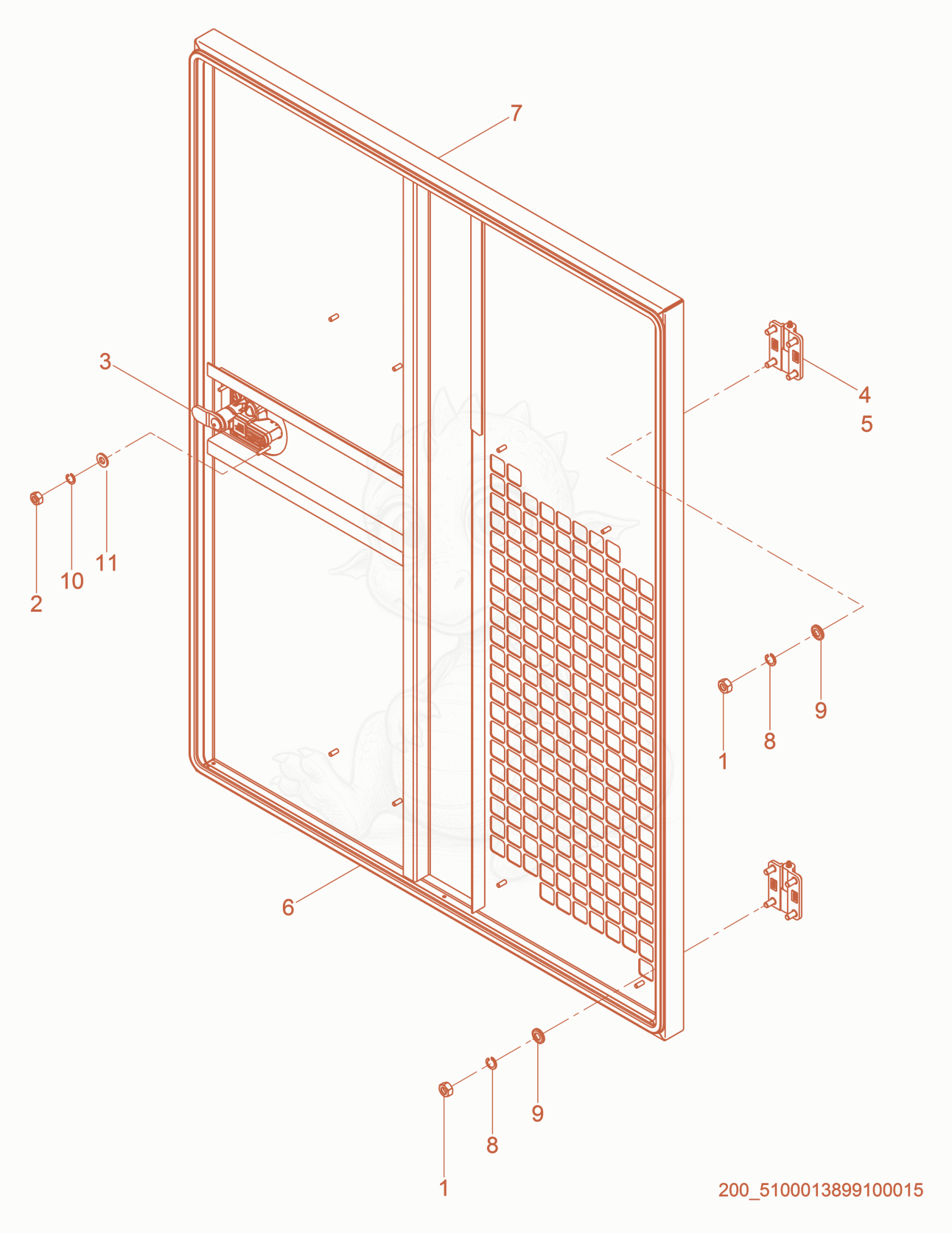

G625 Rear access door cpl. Diagram
- NUT M8 8,HEX - 5000010882×8
- NUT-HEX,M5 8,ISO4032 - 5000010879×4
- 35100019010Not stockedT-Handle×1
- 45100019012Not stockedHinge-Right×1
- 55100019013Not stockedHinge-Left×1
- 65100019016Not stockedDoor seal×1
- 75100019078Not stockedDoor×1
- WASHER-LOCK 8 - 5000010704×8
- WASHER-FLAT,M8,ZINC - 5000010622×8
- WASHER-LOCK M5-A2,SS - 5000163383×4
- WASHER B5.3 FLAT - 5000010625×4
