EZ50

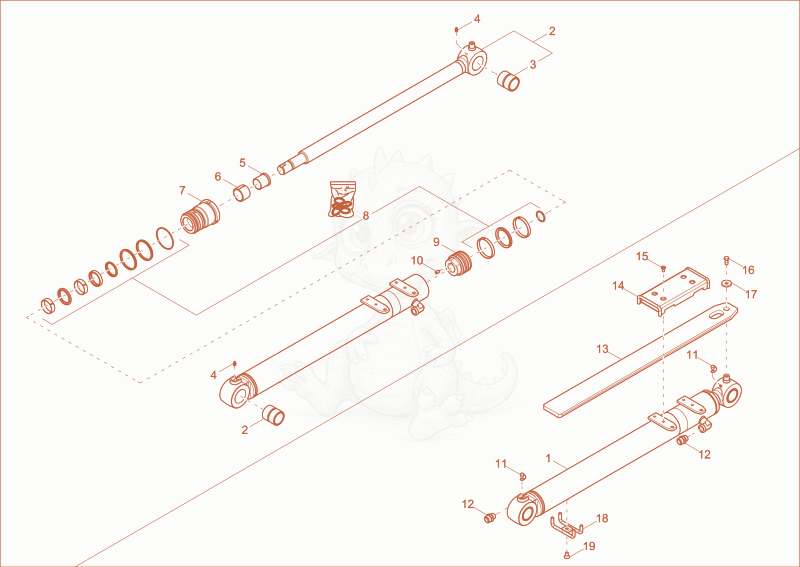

EZ50 DIPPER ARM CYLINDER Diagram
- 11000422441Not stockeddipper arm cylinder×1
- 21000452415Not stockedbushing×2
- 31000452494Not stockedpiston rod×1
- 41000015476Not stockedgrease nipple×2
- 51000070085Not stockedfasten bushing×1
- 61000452416Not stockedbushing×1
- 71000452466Not stockedguide bushing×1
- 81000452421Not stockedseal kit×1
- piston - 1000452445×1
- thread pin - 1000187949×1
- 111000015480Not stockedcap grease nipple×2
- GE18LR1/2EDOMDA3C - 1000082979×2
- protecting rail - 1000421992×1
- 141000410703Not stockedguide-element×1
- countersunk screw - 1000085531×4
- hex screw M10x20-8.8 A2C DIN933 - 1000085411×1
- 171000368878Not stockedlock washer×1
- 181000447174Not stockedbracket hose×1
- 191000015397Not stockedcountersunk screw×1
