Excavator EZ28

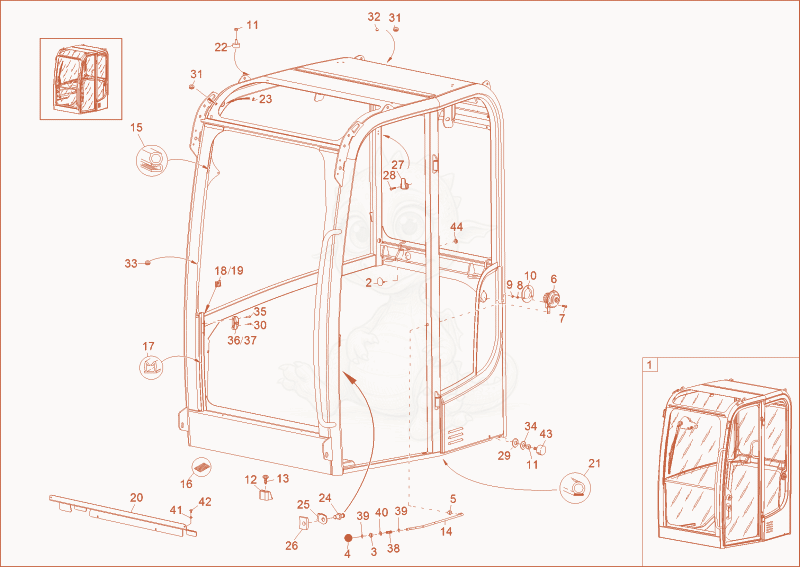

EZ28 CABIN FRAME Diagram
- Cabin 1000261911×1
- PLUG - 1000266593×1
- mounting - 1000251804×1
- ball head - 1000124794×1
- DIN985-M8-8-A2C - 1000015416×1
- door fastener - 1000124796×1
- ovalhead screw - 1000124798×3
- Washer M5,3-DIN134 - 1000094967×3
- HEXAGON NUT - 1000085587×3
- rubber disc - 1000124797×1
- 111000049046Not stockedhexagon nut×3
- 121000066203Not stockedclamp shoe×2
- 131000015386Not stockedovalhead screw×2
- antilock rod - 1000267600×1
- PROFILE - 1000153158×3.5
- seal strap - 1000097235×0.8
- slide window seal - 1000097236×1
- rubber seal - 1000241675×1
- rubber seal - 1000241676×1
- Cover 1000253891×1
- sealing profile - 1000216347×4.2
- RUBBER BUFFER - 1000245364×2
- thread pin - 1000152959×2
- 241000004271Not stockedcatch bolt×1
- BRACKET - 1000075584×1
- 261000068933Not stockedthread plate×1
- cloth hook - 1000124822×1
- 281000048516Not stockedflat head screw×1
- 291000004289Not stockedrubber disc×1
- ovalhead screw - 1000124798×2
- blind plug - 1000075523×5
- 321000068932Not stockedblind plug×2
- 331000066256Not stockedsleeve×4
- 341000012879Not stockedquad ring×1
- 351000015395Not stockedovalhead screw×2
- 361000003866Not stockedcatch-rests×1
- 371000003867Not stockedcatch-rests×1
- pressure spring - 1000251799×1
- 391000049454Not stockedlock washer×2
- 401000015448Not stockedwasher×1
- washer - 1000233504×2
- screw M6x12 ISO7380-2 - 1000165459×2
- 431000191006Not stockedrubber buffer×1
- rubber sleeve 10/18/22-3 closed - 1000265272×1
