EZ26

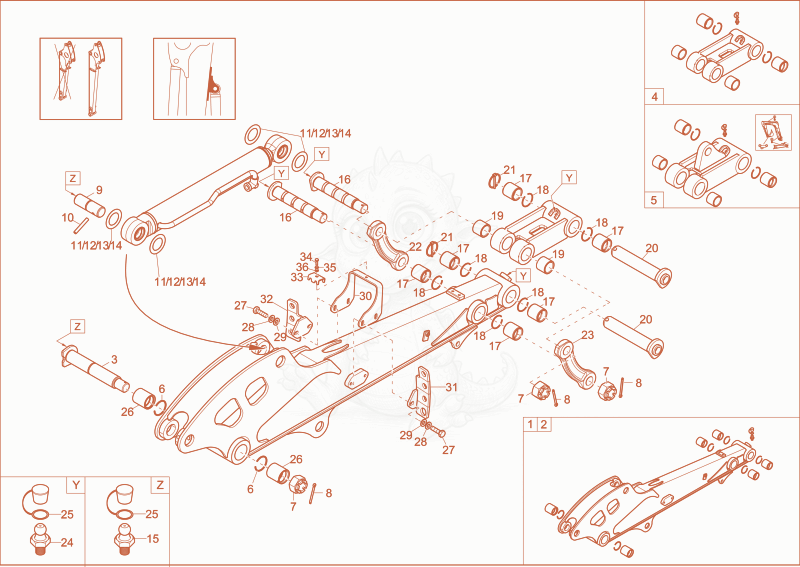

EZ26 DIPPER ARM long thumb (Option) Diagram
- 11000315594Not stockedpre-assembled dipperstick long×1
- 21000315596Not stockedpre-assembled dipperstick long×1
- Pin 1000294590×1
- Pre Assembledconnectinglink 1000176132×1
- Pre Assembledconnectinglink 1000295896×2
- lock ring - 1000095015×2
- DIN935-M36-8-A2C - 1000015417×3
- DINENISO1234-6,3x63-A2C - 1000280889×3
- PIN - 1000294591×1
- cotter pin - 1000082714×1
- SHIM - 1000154275×1
- SHIM - 1000154276×1
- SHIM - 1000154278×1
- SHIM - 1000154280×1
- 151000015476Not stockedgrease nipple×2
- Pin 1000294589×2
- 171000015608Not stockedsteel bushing×6
- 181000021601Not stockedlock ring×6
- 191000015607Not stockedsteel bushing×2
- Pin 1000296761×2
- COTTER PIN - 1000015459×2
- Pivotplate 1000160112×1
- Pivotplate 1000160111×1
- 241000015475Not stockedgrease nipple×4
- 251000015480Not stockedcap grease nipple×6
- 261000019754Not stockedsteel bushing×2
- Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×4
- washer 10,5 A2C DIN125 - 1000015432×4
- 291000015438Not stockedlock washer×4
- HOLDER - 1000269206×1
- bracket hose - 1000269204×1
- bracket hose - 1000269203×1
- pipe clamp - 1000261367×1
- 341000015343Not stockedhex screw×1
- 351000015437Not stockedlock washer×1
- 361000015431Not stockedwasher×1
