EZ26

EZ26 wire harness chassis, engine Diagram

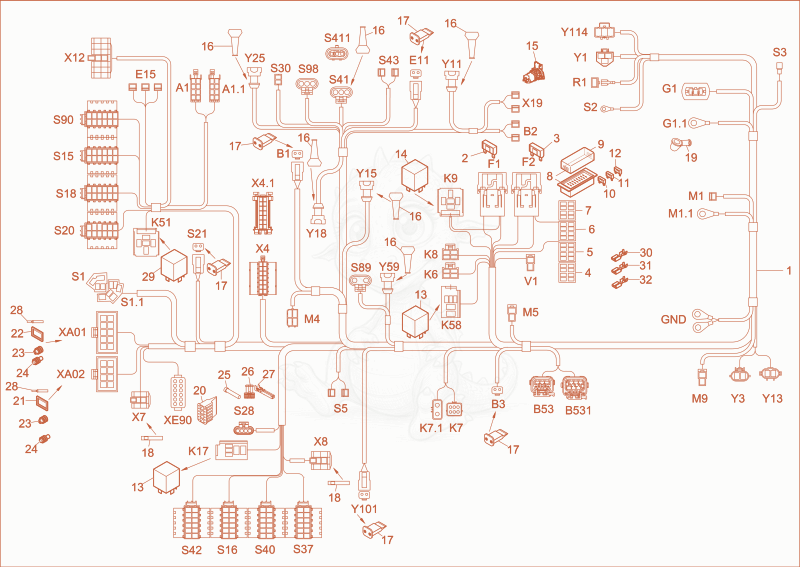

Exploded parts diagram of the wire harness chassis, engine of a Wacker Neuson EZ26, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000330365Not stocked
    wiring harness×1
  • 21000015302Price
    fuse - 1000015302×1
  • 31000015298Price
    FUSE - 1000015298×1
  • 41000101620Price
    Socket housing - 1000101620×1
  • 51000101621Price
    Socket housing - 1000101621×1
  • 61000101622Price
    Socket housing - 1000101622×1
  • 71000101623Price
    Socket housing - 1000101623×1
  • 81000124067Price
    FUSE BOX - 1000124067×1
  • 91000124068Price
    cover fuse box - 1000124068×1
  • 101000084949Price
    FUSE - 1000084949×1
  • 111000085682Price
    fuse - 1000085682×3
  • 121000085683Price
    FUSE - 1000085683×4
  • 131000027080Not stocked
    relay×2
  • 141000353650Not stocked
    relay×1
  • 151000002902Not stocked
    socket×1
  • 161000027466Not stocked
    protecting cap×6
  • 171000027442Not stocked
    wedge×5
  • 181000095330Not stocked
    plug sleeve×7
  • 191000027463Price
    PROTECTING CAP - 1000027463×1
  • 201000148272Price
    Pin housing - 1000148272×1
  • 211000263272Price
    Seal - 1000263272×4
  • 221000263273Price
    Seal - 1000263273×5
  • 231000263274Price
    Seal - 1000263274×9
  • 241000263275Price
    Plug - 1000263275×9
  • 251000163264Price
    Plug - 1000163264×4
  • 261000162259Price
    Seal - 1000162259×4
  • 271000051990Not stocked
    bushing contact×4
  • 281000104662Not stocked
    bushing contact×9
  • 291000178782Price
    time relay - 1000178782×1
  • 301000351849Price
    plug sleeve - 1000351849×1
  • 311000229869Price
    PLUG SLEEVE - 1000229869×1
  • 321000351845Price
    plug sleeve - 1000351845×1
  • A11000104903Price
    CONTACT-HOUSING - 1000104903×1
  • A1.11000104902Price
    CONTACT-HOUSING - 1000104902×1
  • B11000027438Not stocked
    bushing housing×1
  • B21000027435Not stocked
    insulating sleeve×2
  • B31000270365Price
    Plug Deutsch - 1000270365×1
  • B531000260159Price
    bushing housing - 1000260159×1
  • B5311000288405Price
    bushing housing - 1000288405×1
  • E111000270365Price
    Plug Deutsch - 1000270365×1
  • E151000027435Not stocked
    insulating sleeve×3
  • F11000027186Price
    Bracket - 1000027186×1
  • F21000027186Price
    Bracket - 1000027186×1
  • G11000110537Price
    bushing housing - 1000110537×1
  • G1.11000096859Price
    CABLE LUG - 1000096859×1
  • GND1000107754Price
    cable lug - 1000107754×2
  • K171000100593Price
    sockets - 1000100593×1
  • K511000082001Price
    sockets - 1000082001×1
  • K581000100593Price
    sockets - 1000100593×1
  • K61000051986Not stocked
    plug sleeve housing×1
  • K71000110360Price
    bushing housing - 1000110360×1
  • K7.11000110349Price
    bushing housing - 1000110349×1
  • K81000051986Not stocked
    plug sleeve housing×1
  • K91000082001Price
    sockets - 1000082001×1
  • M11000027435Not stocked
    insulating sleeve×1
  • M1.11000050028Not stocked
    cable lug×1
  • M41000095325Price
    plug sleeve housing - 1000095325×1
  • M51000101072Price
    plug sleeve housing - 1000101072×1
  • M91000101072Price
    plug sleeve housing - 1000101072×1
  • R11000081742Price
    plug housing - 1000081742×1
  • S11000027368Not stocked
    central plug×1
  • S1.11000027386Price
    PLUG - 1000027386×1
  • S151000103949Price
    bushing housing - 1000103949×1
  • S161000103949Price
    bushing housing - 1000103949×1
  • S181000103949Price
    bushing housing - 1000103949×1
  • S21000050027Not stocked
    cable lug×1
  • S201000103949Price
    bushing housing - 1000103949×1
  • S211000270365Price
    Plug Deutsch - 1000270365×1
  • S281000258052Price
    plug bushing - 1000258052×1
  • S31000027384Not stocked
    round socket sleeve×1
  • S301000095336Not stocked
    plug sleeve housing×1
  • S371000103949Price
    bushing housing - 1000103949×1
  • S401000103949Price
    bushing housing - 1000103949×1
  • S411000051989Not stocked
    bushing housing×1
  • S4111000265293Price
    Pin housing - 1000265293×1
  • S421000103949Price
    bushing housing - 1000103949×1
  • S431000027435Not stocked
    insulating sleeve×2
  • S51000027435Not stocked
    insulating sleeve×2
  • S891000110449Price
    plug bushing - 1000110449×1
  • S901000103949Price
    bushing housing - 1000103949×1
  • S981000051989Not stocked
    bushing housing×1
  • V11000101072Price
    plug sleeve housing - 1000101072×1
  • X121000095331Price
    plug sleeve housing - 1000095331×1
  • X191000027435Not stocked
    insulating sleeve×2
  • X41000100971Price
    bushing housing - 1000100971×1
  • X4.11000271156Price
    pin housing - 1000271156×1
  • X71000095320Price
    plug sleeve housing - 1000095320×1
  • X81000095320Price
    plug sleeve housing - 1000095320×1
  • XA011000263271Price
    bushing housing - 1000263271×1
  • XA021000263260Price
    bushing housing - 1000263260×1
  • XE901000254182Price
    bushing housing - 1000254182×1
  • Y11000167178Price
    PLUG SLEEVE HOUSING - 1000167178×1
  • Y1011000270365Price
    Plug Deutsch - 1000270365×1
  • Y111000027332Price
    housing - 1000027332×1
  • Y1141000288403Price
    Bushing Housing - 1000288403×1
  • Y131000124064Price
    Pin housing - 1000124064×1
  • Y151000027332Price
    housing - 1000027332×1
  • Y181000027332Price
    housing - 1000027332×1
  • Y251000027332Price
    housing - 1000027332×1
  • Y31000124062Price
    bushing housing - 1000124062×1
  • Y591000027332Price
    housing - 1000027332×1
