EZ26-2

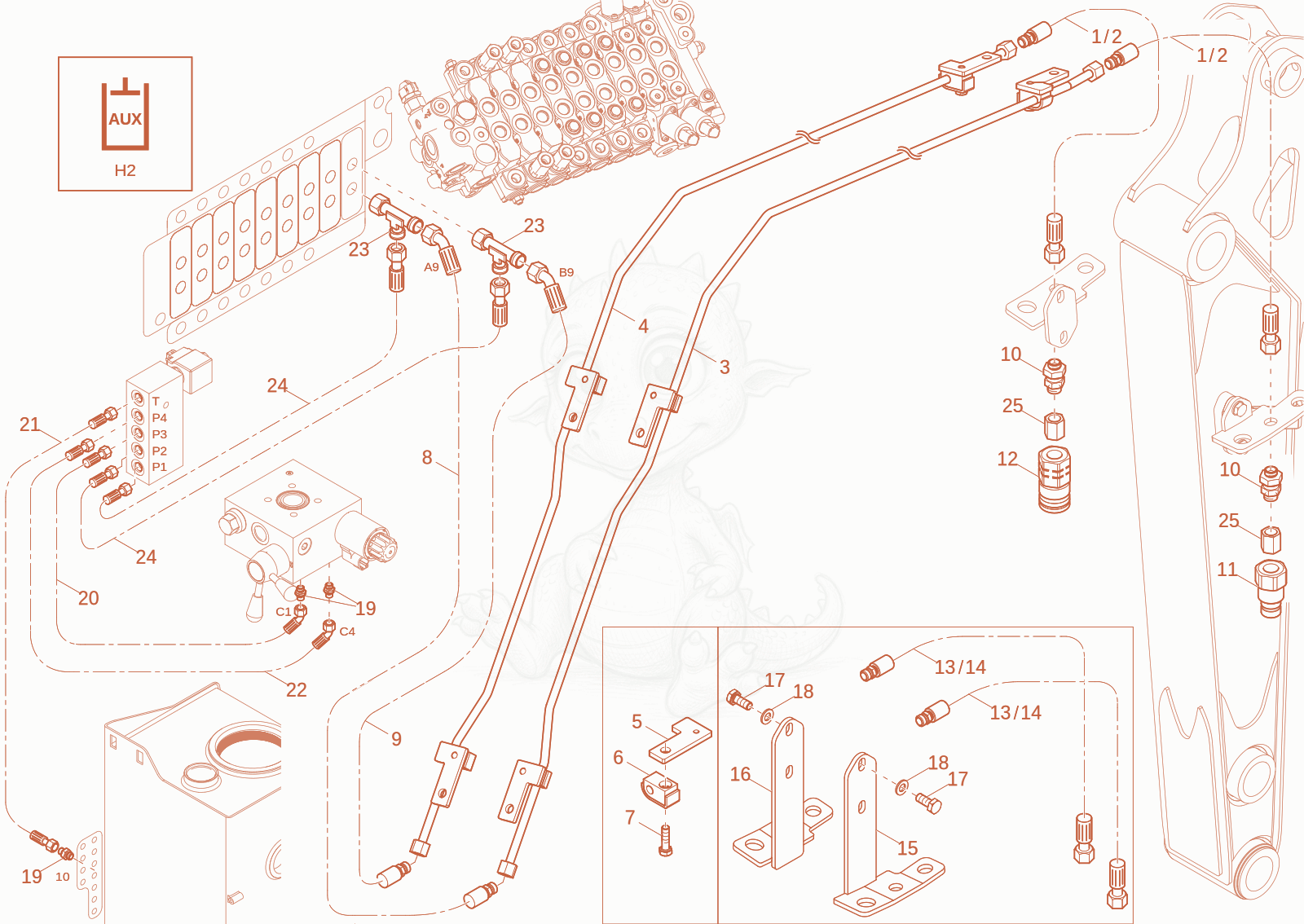

EZ26-2 control lever option Diagram

Exploded parts diagram of the control lever option of a Wacker Neuson EZ26-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000491597Not stocked
    Hose×2
  • 21000491614Not stocked
    Hose×2
  • 31000508653Not stocked
    pipe line×1
  • 41000508655Not stocked
    pipe line×1
  • 51000368410Not stocked
    fixing plate×6
  • 61000239947Not stocked
    clamp×6
  • 71000085390Price
    6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×6
  • 81000547135Not stocked
    Hose×1
  • 91000547134Not stocked
    Hose×1
  • 101000238586Price
    SCHOTTVERSCHRAUBUNG 10L 1/2" - 1000238586×2
  • 111000109377Not stocked
    quick lock coupling×1
  • 121000109378Not stocked
    quick lock coupling×1
  • 131000491598Not stocked
    Hose×2
  • 141000491613Not stocked
    Hose×2
  • 151000487760Price
    extension - 1000487760×1
  • 161000487762Price
    extension - 1000487762×1
  • 171000015345Price
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×4
  • 181000015432Price
    washer 10,5 A2C DIN125 - 1000015432×4
  • 191000015488Not stocked
    screw joint×3
  • 201000500954Not stocked
    Hose×1
  • 211000076625Price
    SLHYDR 1SCP6,0PN8 0 PN8 0 L600,0 0 - 1000076625×1
  • 221000190813Not stocked
    Hose×1
  • 231000085089Price
    EL10LOMDA3C - 1000085089×2
  • 241000500959Not stocked
    Hose×2
  • 251000082961Price
    locking cap - 1000082961×2
