EZ26-2

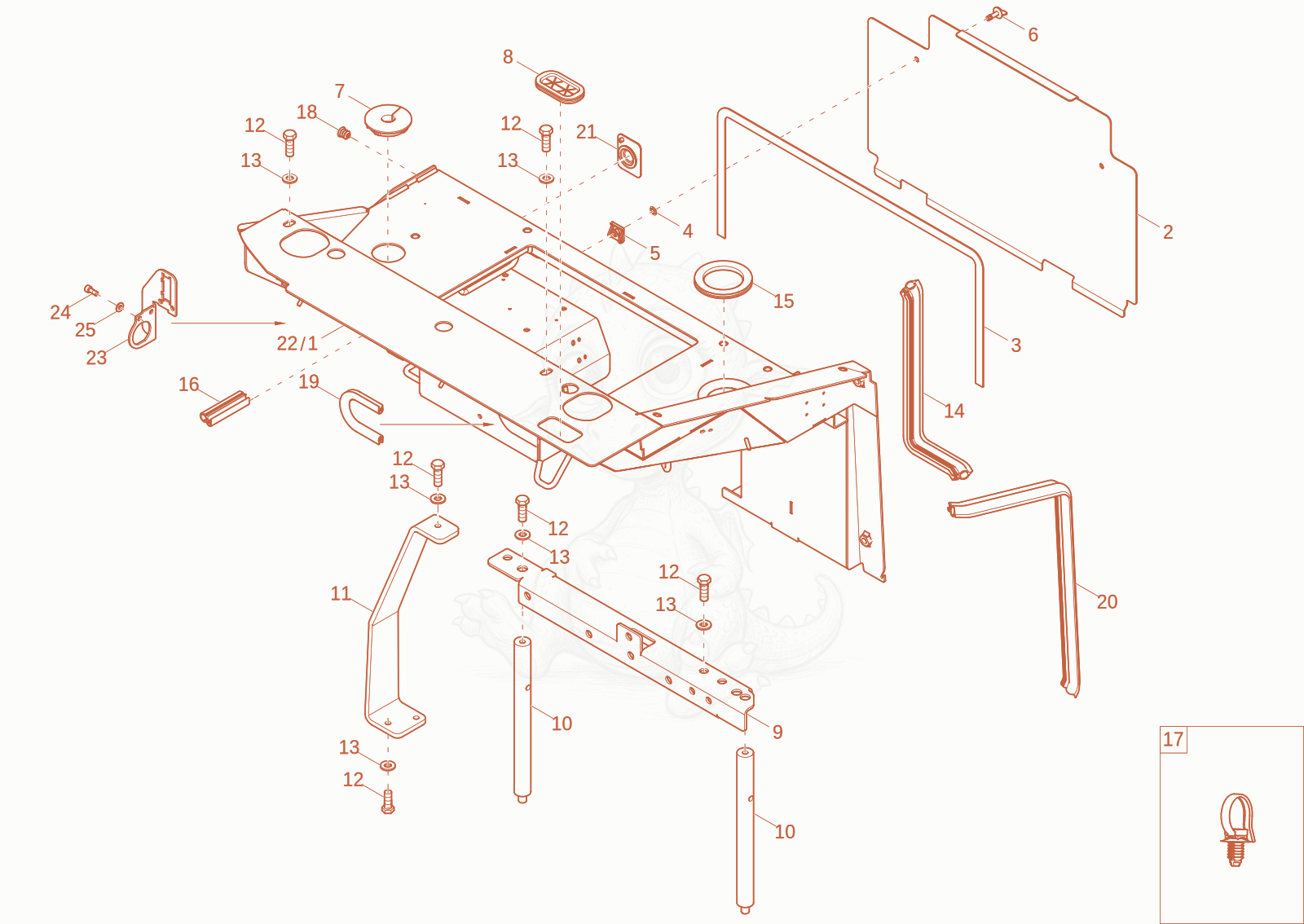

EZ26-2 seat console Diagram

Exploded parts diagram of the seat console of a Wacker Neuson EZ26-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000507729Not stocked
    seat console×1
  • 21000457916Not stocked
    Maintenance cover×1
  • 31000309165Not stocked
    seal strap foam×1
  • 41000515973Price
    retaining disk M6 53062FST6 - 1000515973×2
  • 51000477078Not stocked
    nut×2
  • 61000477079Not stocked
    lock×2
  • 71000411901Not stocked
    sleeve×1
  • 81000507631Not stocked
    rubber sleeve×2
  • 91000509389Price
    profile - 1000509389×1
  • 101000509387Price
    stand - 1000509387×2
  • 111000487761Price
    stand - 1000487761×1
  • 121000085411Price
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×9
  • 131000094974Price
    washer M10-DIN134 - 1000094974×9
  • 141000098164Price
    rubber profile 1,5-3mm - 1000098164×0.4
  • 151000097928Price
    edge protection - 1000097928×0.3
  • 161000098197Price
    RUBBER PROFILE - 1000098197×0.1
  • 171000375997Not stocked
    fixing bracket×4
  • 181000068993Not stocked
    plug×1
  • 191000097928Price
    edge protection - 1000097928×0.2
  • 201000098164Price
    rubber profile 1,5-3mm - 1000098164×0.7
  • 211000279027Price
    rubber plug - 1000279027×1
  • 221000551075Not stocked
    seat console×1
  • 231000527270Not stocked
    fasten plate×1
  • 241000085455Price
    allen screw M6x16-8.8 A2C - 1000085455×2
  • 251000094966Price
    washer M6,4-DIN134 - 1000094966×2
