ET25-2

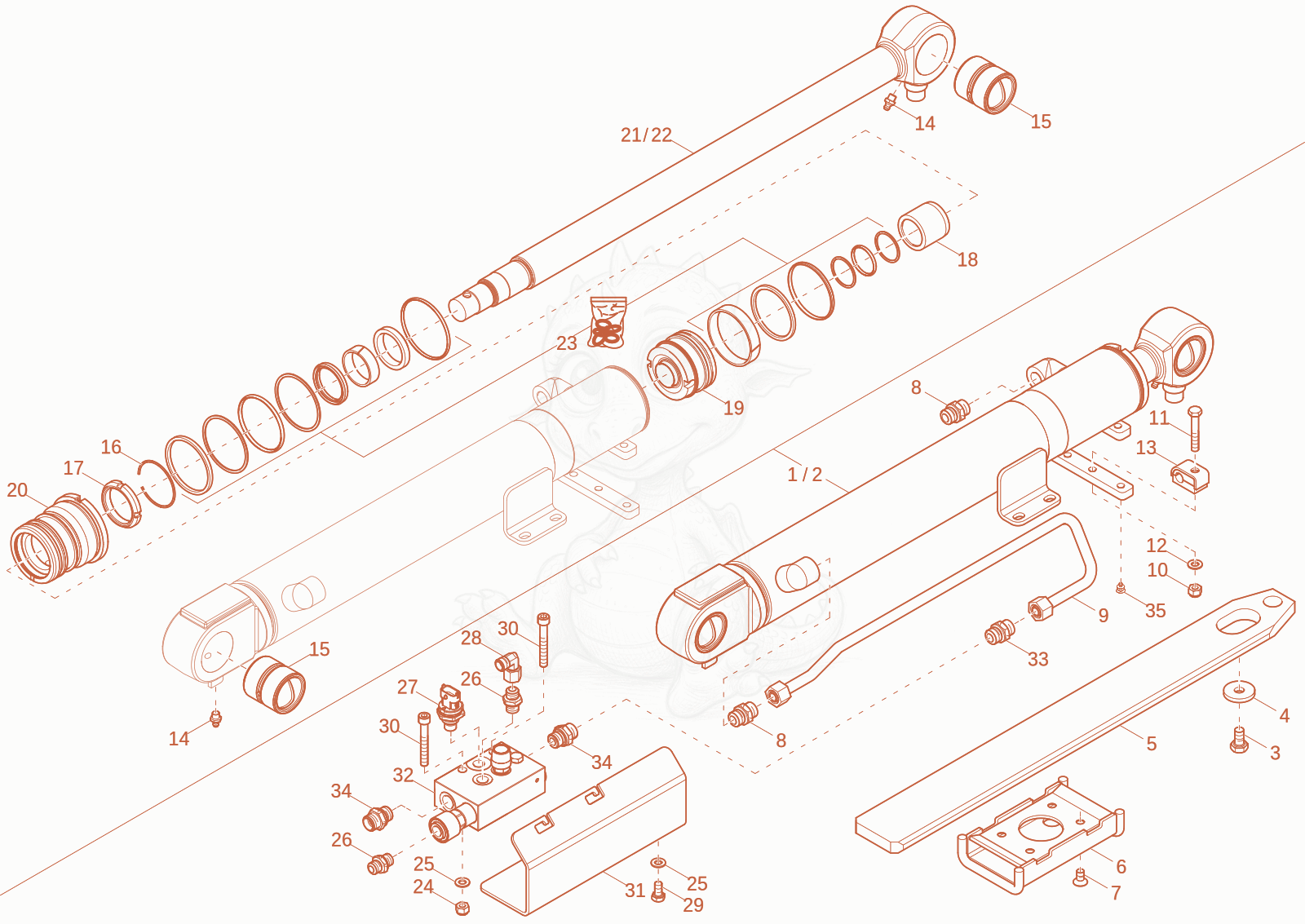

ET25-2 BOOM CYLINDER Diagram

Exploded parts diagram of the BOOM CYLINDER of a Wacker Neuson ET25-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000509351Not stocked
    boom cylinder×1
  • 21000509350Not stocked
    boom cylinder×1
  • 31000085411Price
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×1
  • 41000368878Not stocked
    lock washer×1
  • 51000509918Not stocked
    protecting rail×1
  • 61000460020Not stocked
    guide-element×1
  • 71000085531Price
    countersunk screw - 1000085531×4
  • 81000015492Price
    GE12LREDOMDA3C - 1000015492×2
  • 91000484519Price
    TUBE - 1000484519×1
  • 101000357534Not stocked
    hexagon nut×1
  • 111000015344Not stocked
    hex screw×1
  • 121000015448Not stocked
    washer×1
  • 131000368411Not stocked
    pipe clamp×1
  • 141000015476Not stocked
    grease nipple×2
  • 151000320542Not stocked
    steel bushing×2
  • 161000511604Not stocked
    lock ring×1
  • 171000511606Price
    Bushing - 1000511606×1
  • 181000511607Not stocked
    bushing shock absorber×1
  • 191000511614Price
    piston - 1000511614×1
  • 201000511615Not stocked
    guide bushing×1
  • 211000511640Not stocked
    piston rod×1
  • 221000511616Not stocked
    piston rod×1
  • 231000511623Not stocked
    seal kit×1
  • 241000357534Not stocked
    hexagon nut×2
  • 251000015448Not stocked
    washer×3
  • 261000015488Not stocked
    screw joint×2
  • 271000425148Not stocked
    pressure sensor×1
  • 281000000542Price
    EW08LOMD - 1000000542×1
  • 291000019136Not stocked
    hex screw×1
  • 301000082530Price
    cheese head screw - 1000082530×1
  • 311000566220Not stocked
    protection plate×1
  • 321000569331Not stocked
    hose burst valve×1
  • 331000015486Price
    G12LA3CX - 1000015486×1
  • 341000015492Price
    GE12LREDOMDA3C - 1000015492×2
  • 351000288011Price
    plug M8 - 1000288011×1
